MUTE+® frame - Baffle

The Creative in a 2-colour look

  • Health

    Mineral fibre free

    Allergy-friendly

    Tested for harmful substances according to Oeko-Tex® Standard 100

  • Quality

    Absorber core: Highly compressed, pure polyester, 3-layer structure

    Visible sides with fabric partial cover made of polyester / wool, changeable/washable

    Dimensionally stable, despite low weight

    Length: 300 to 3,000 mm

    Height: 200 to 1,000 mm

    Thickness: 40 mm

    Weight: approx. 4,500 g/m²

  • Acoustics

    Absorption class: C to A

    αw: 0.70 (H) to 0.90 sound absorption coefficient according to DIN EN ISO 354
    Evaluation according to ISO 11654/ ASTM C423
View full details

Assembly

Time-saving thanks to simple installation with a delicate, continuously adjustable rope suspension.

CAD-Details

Acoustic performance

Room noise is reduced and speech intelligibility is optimized.
Become a sound artist and experience the data of silence in our acoustic calculator.

Acoustic calculator

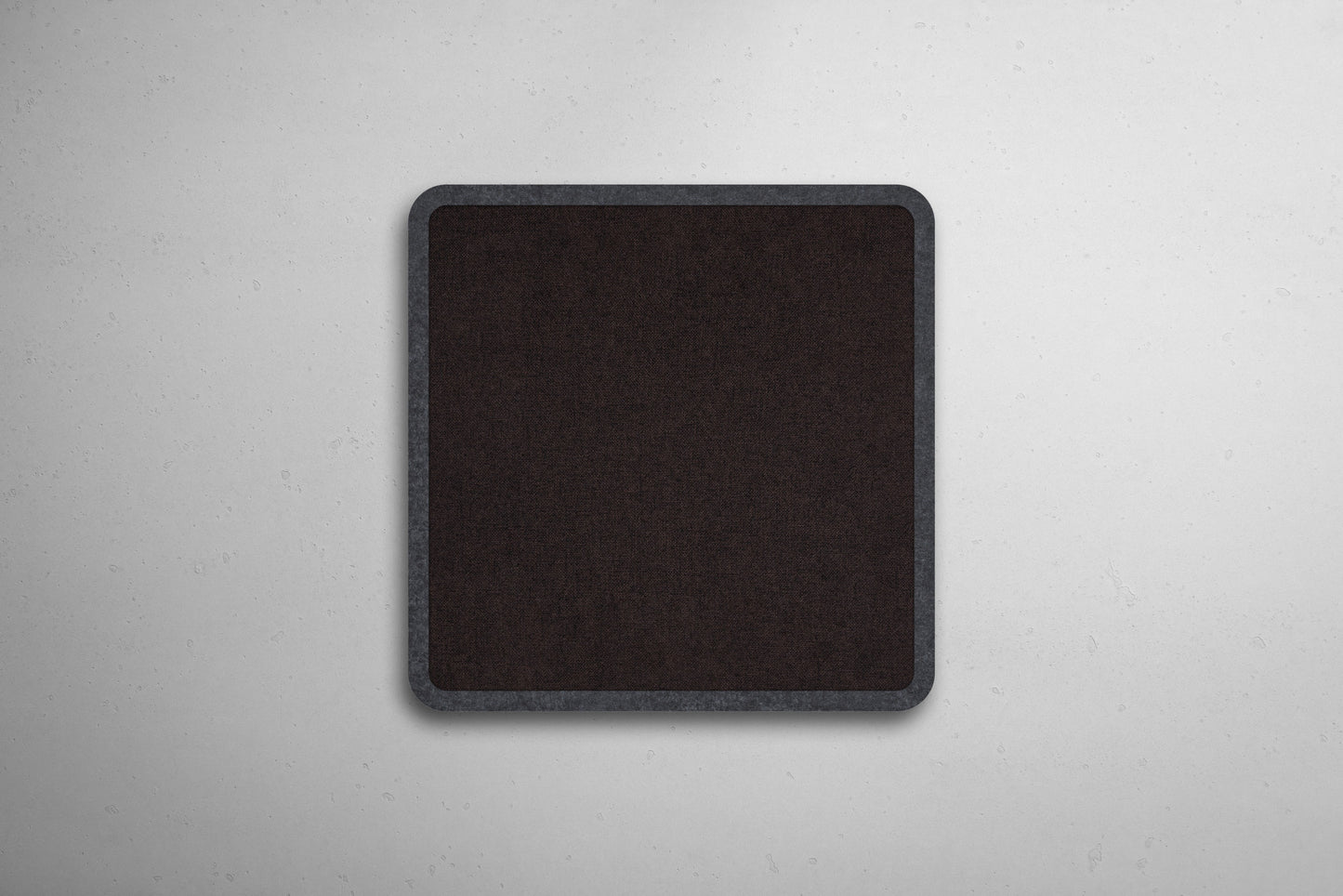

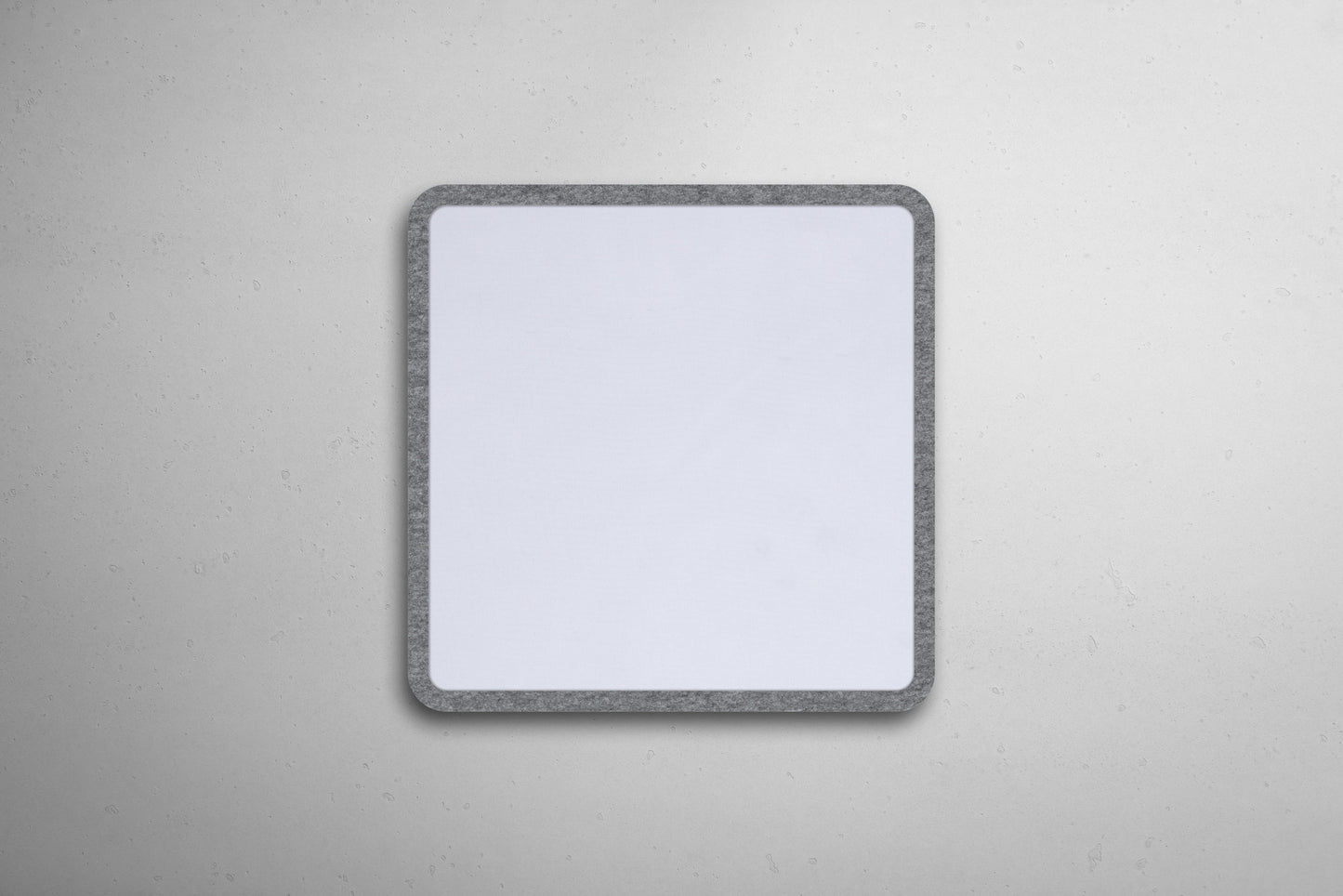

MUTE+® frame S40-B

Material

  • Absorber core: Highly compressed and pure polyester
  • Structure: 3 layers
  • Properties: Dimensionally stable, low weight
  • Fabric: Polyester / wool - parts of the absorber core (visible sides) covered; fabric can be changed and washed

Form

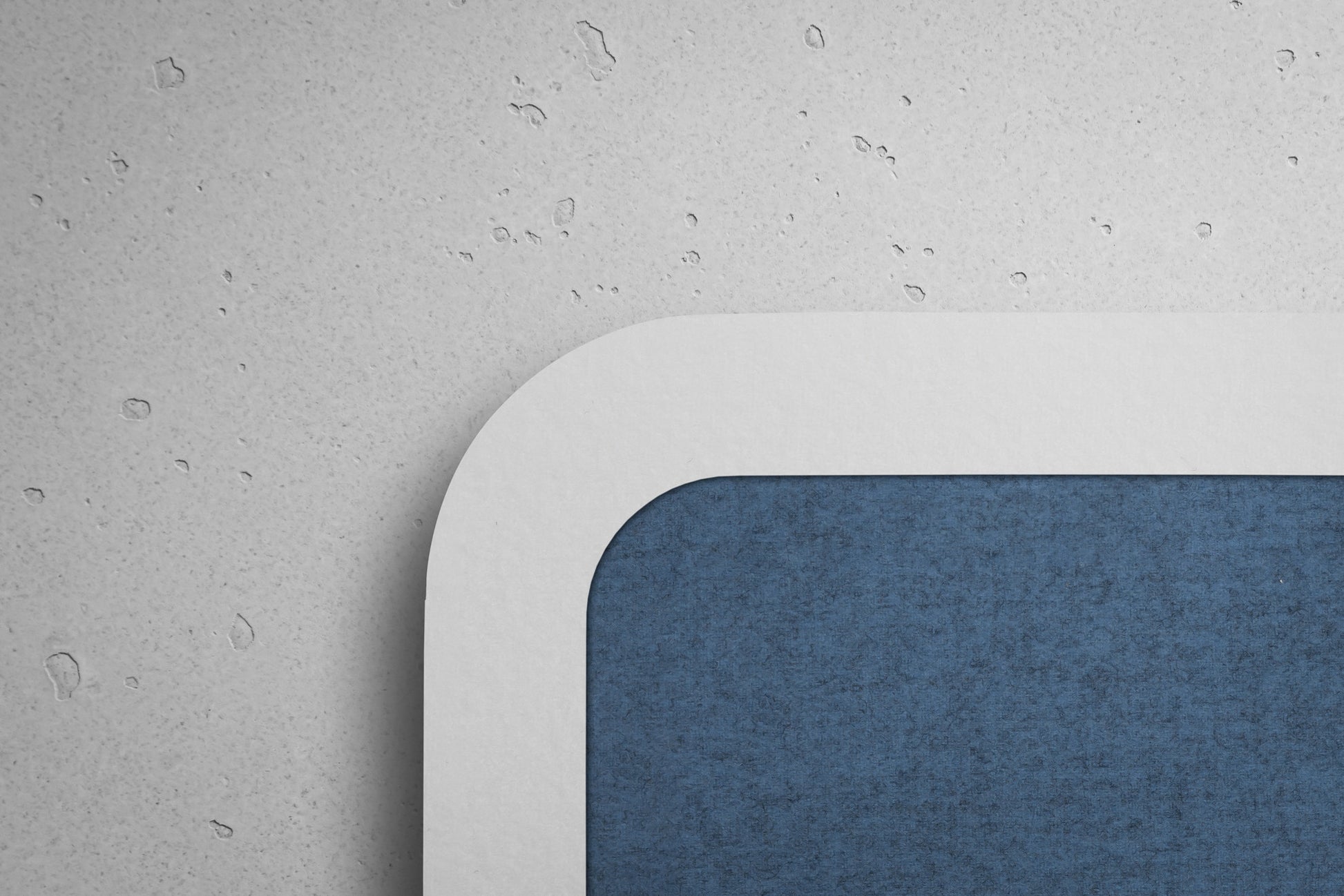

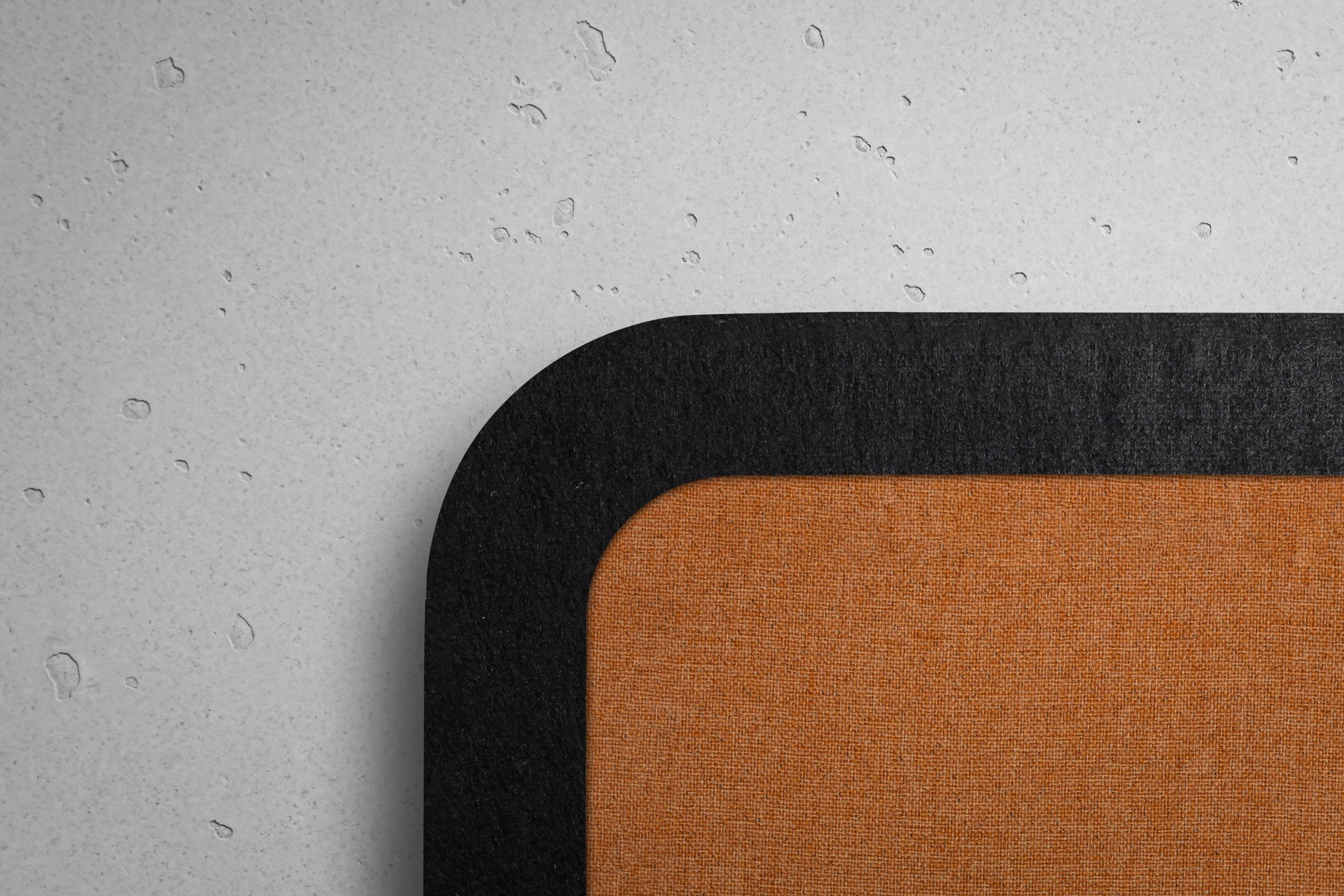

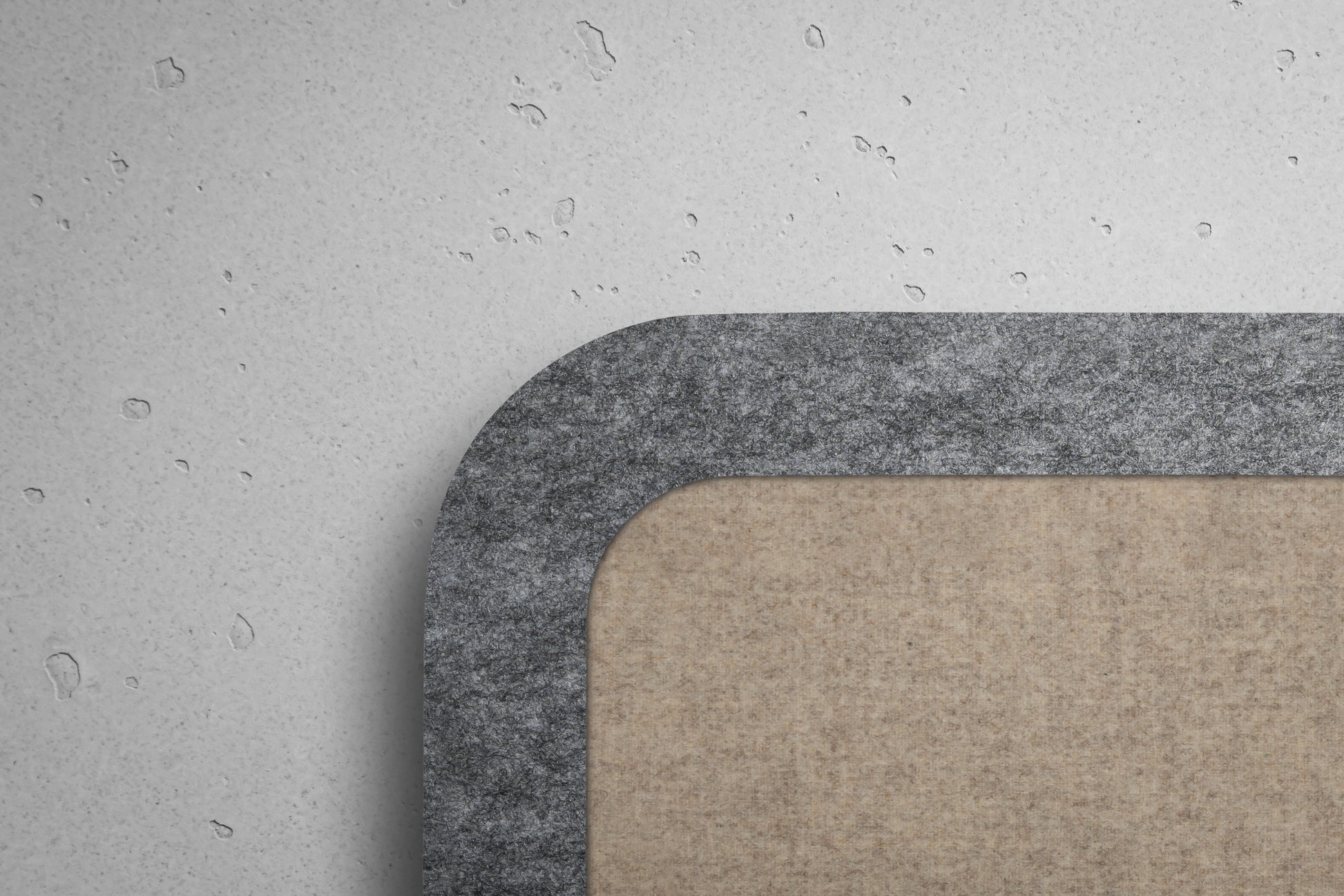

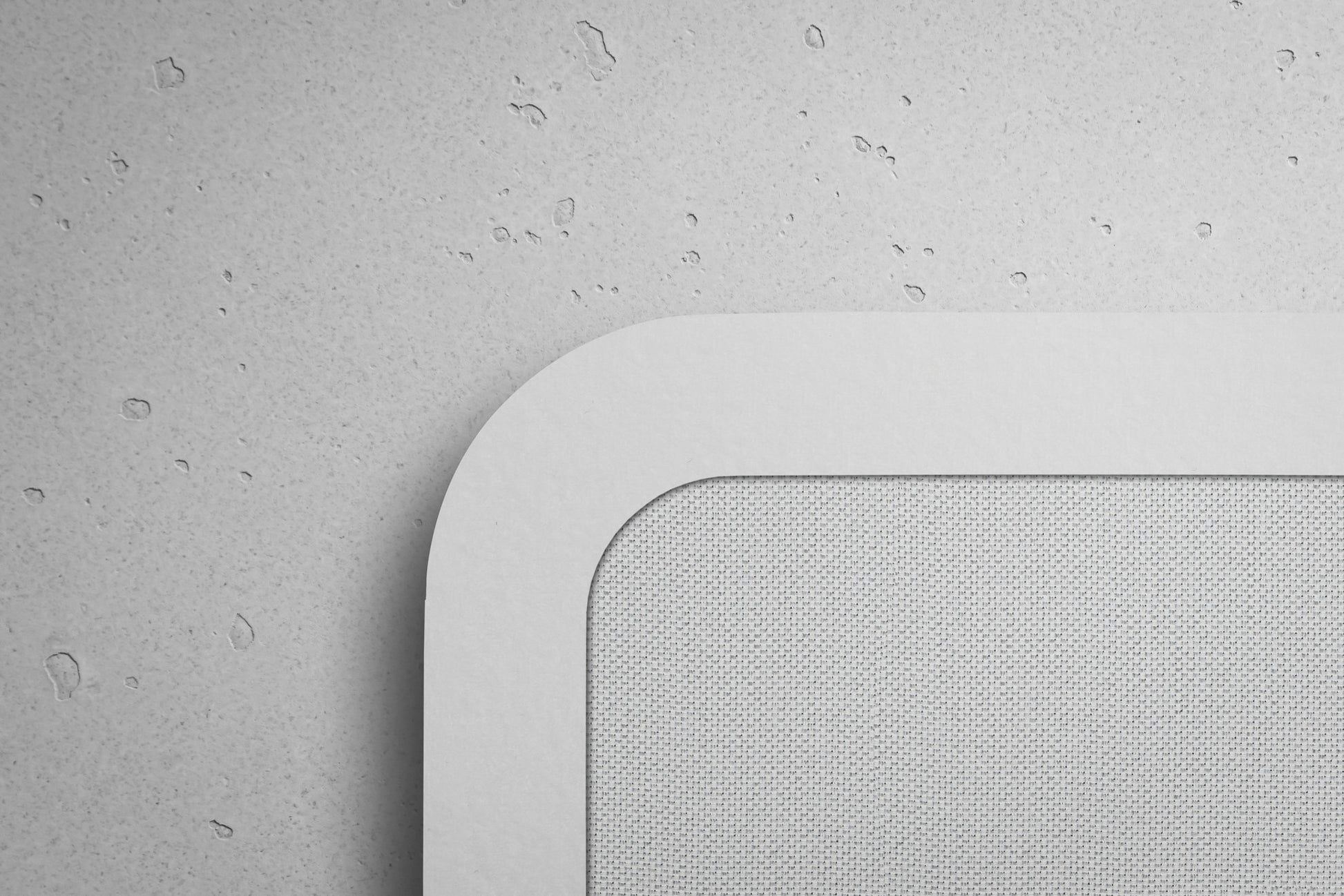

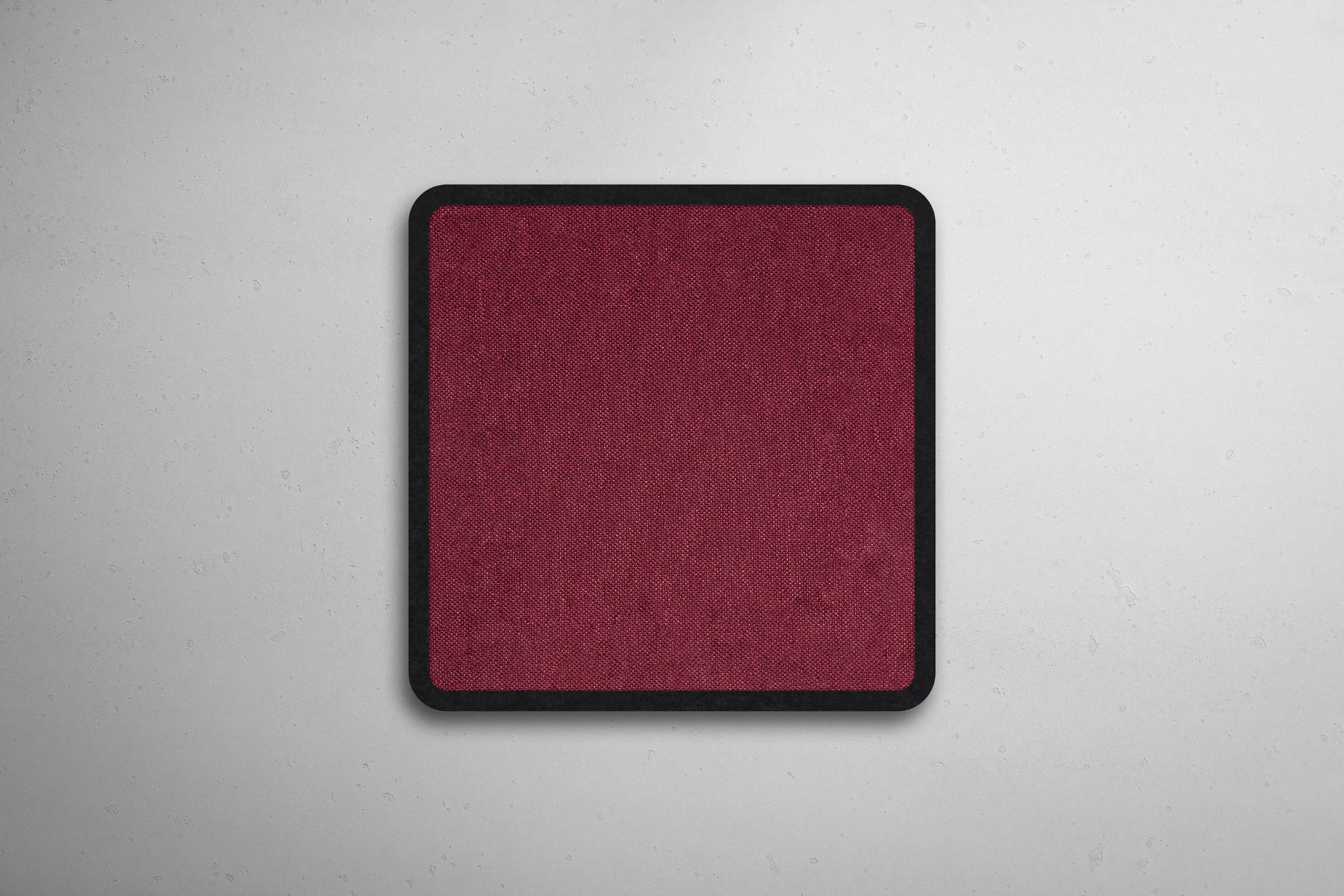

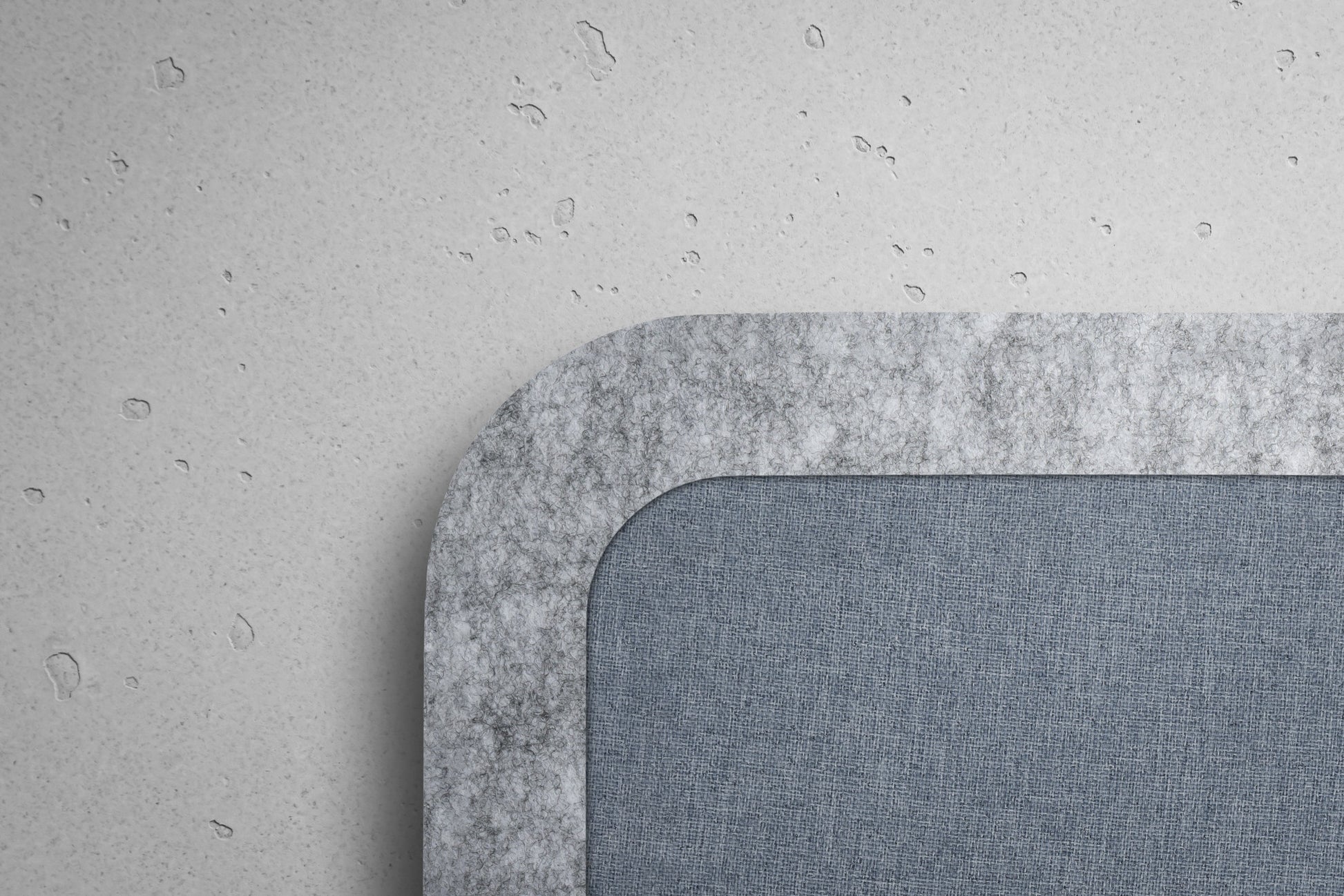

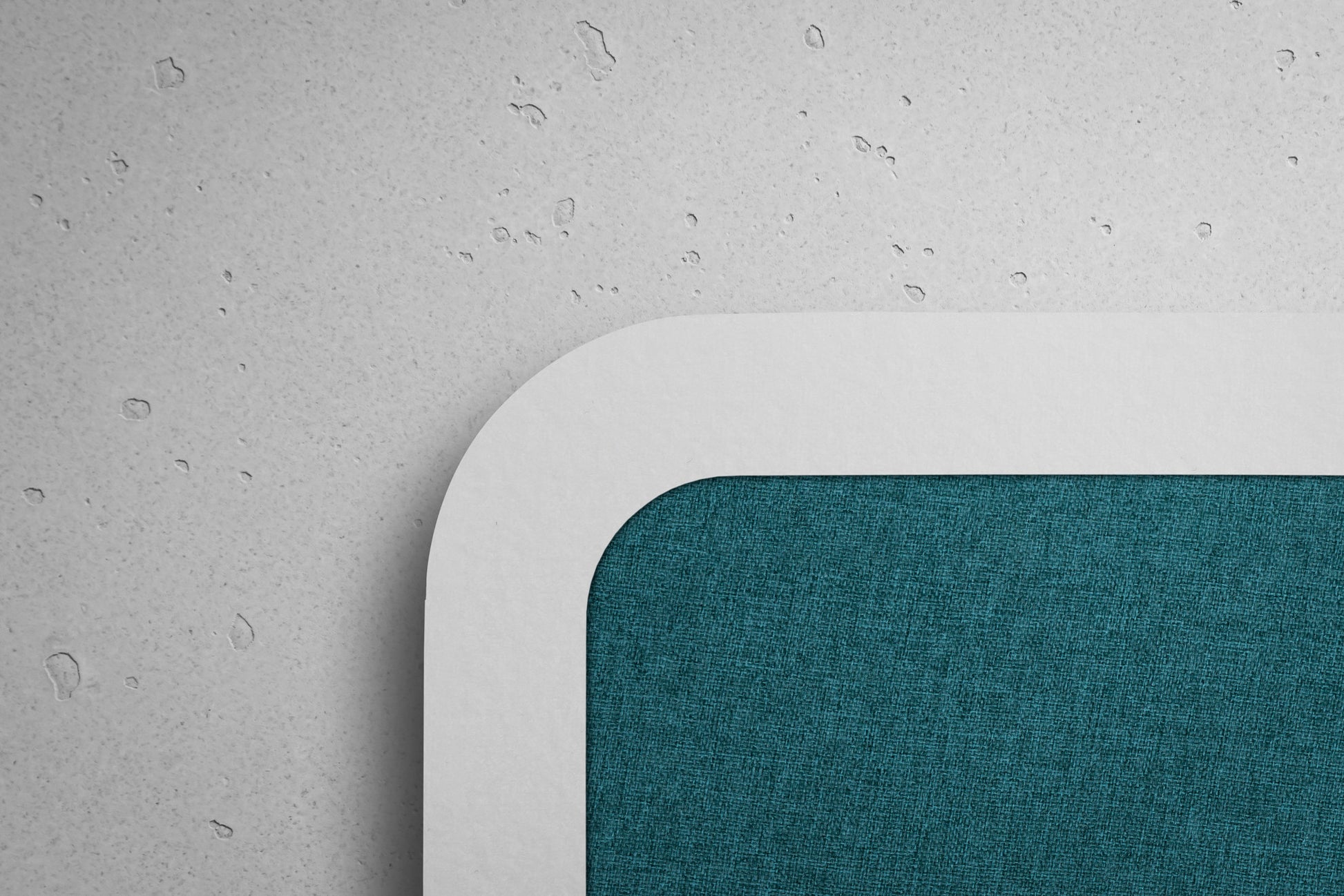

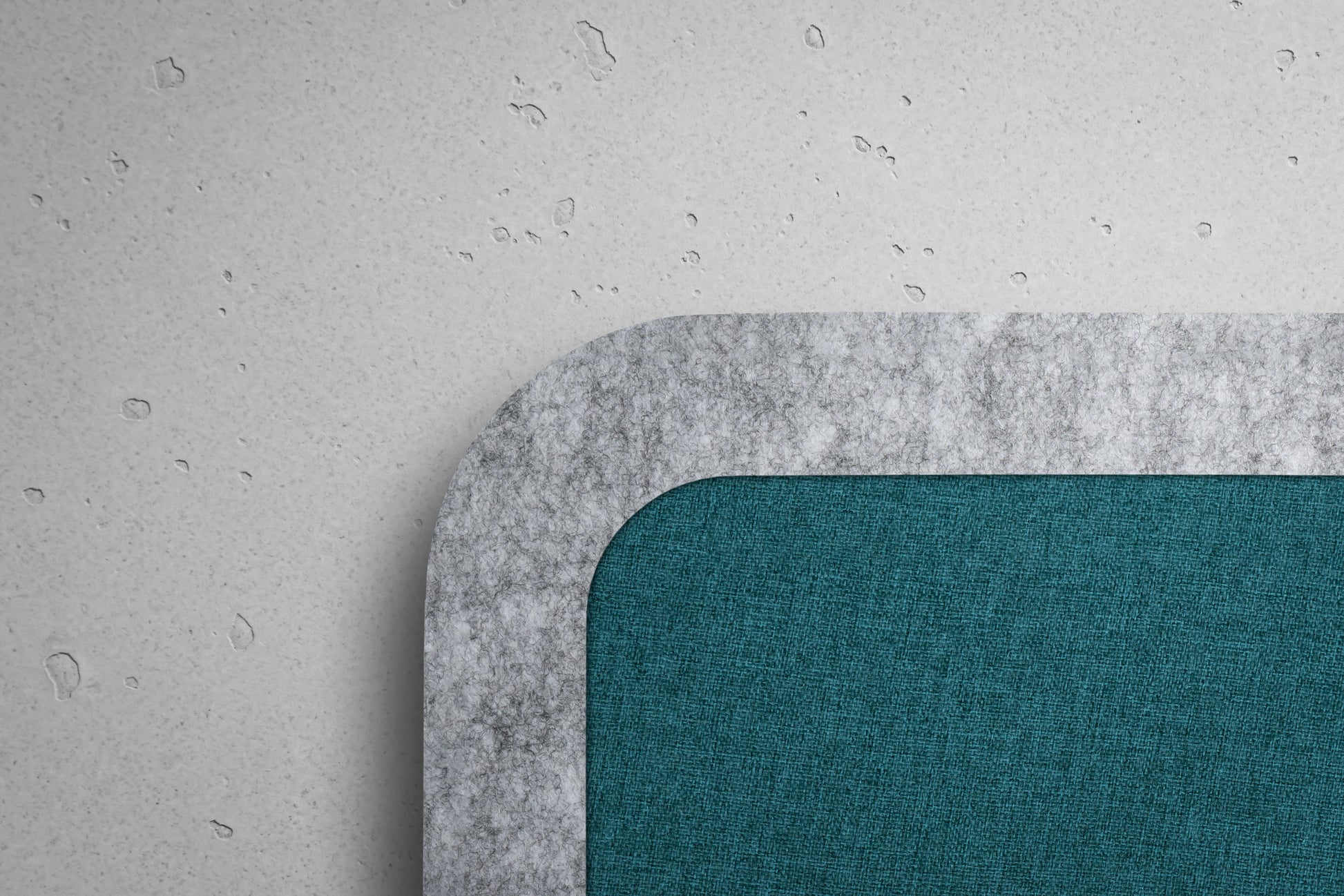

  • With rounded corners (radius 70 mm)
  • Variable shapes possible

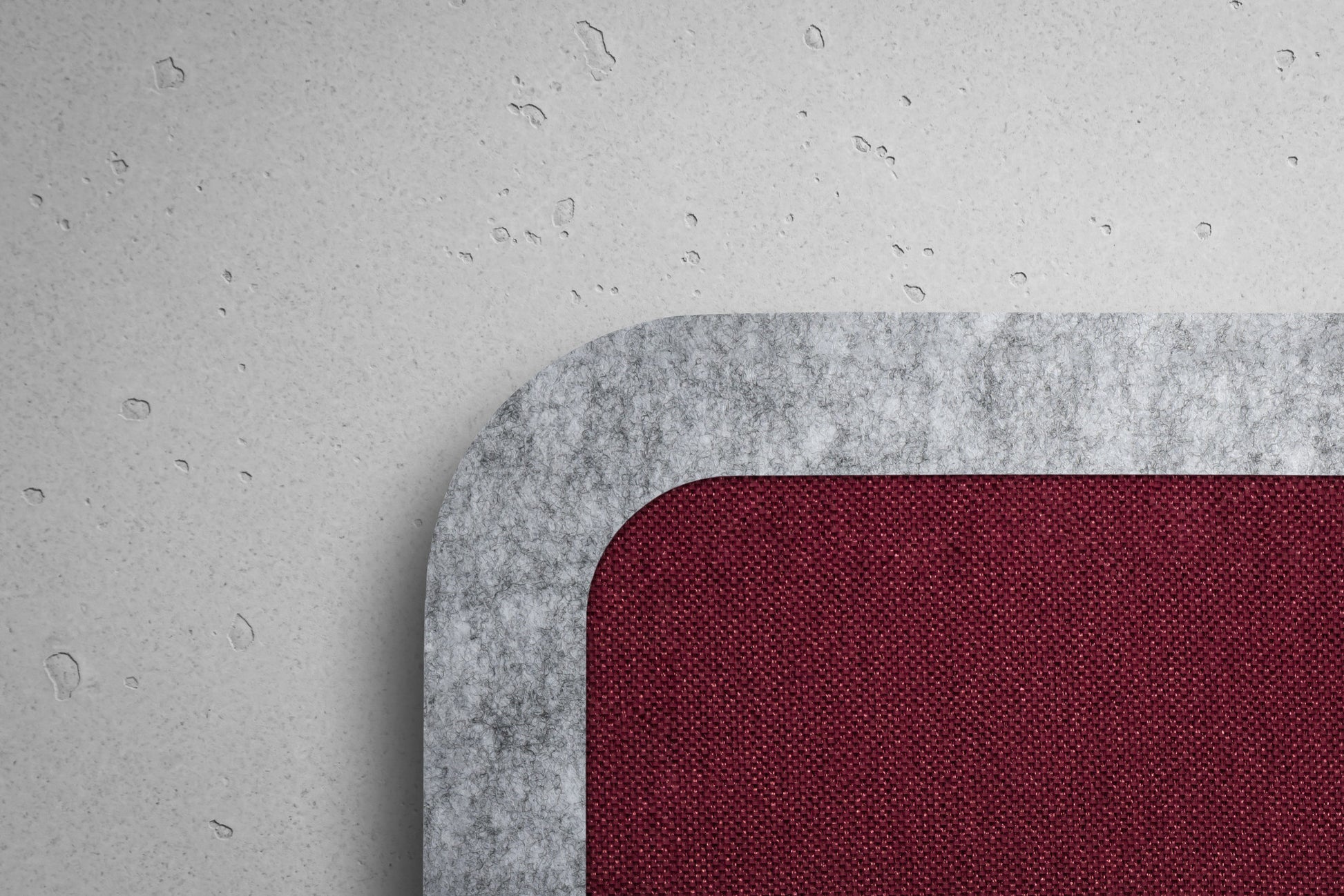

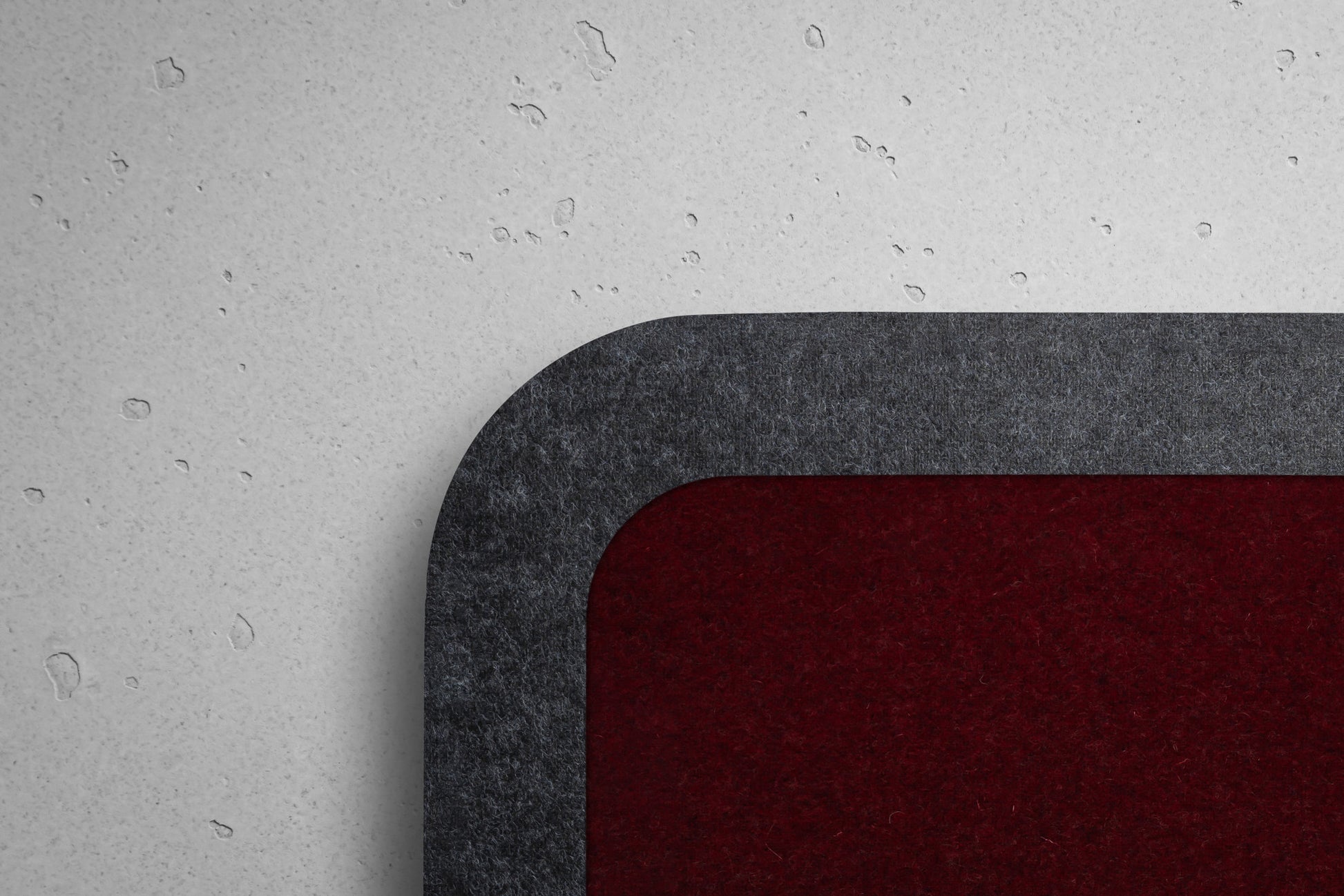

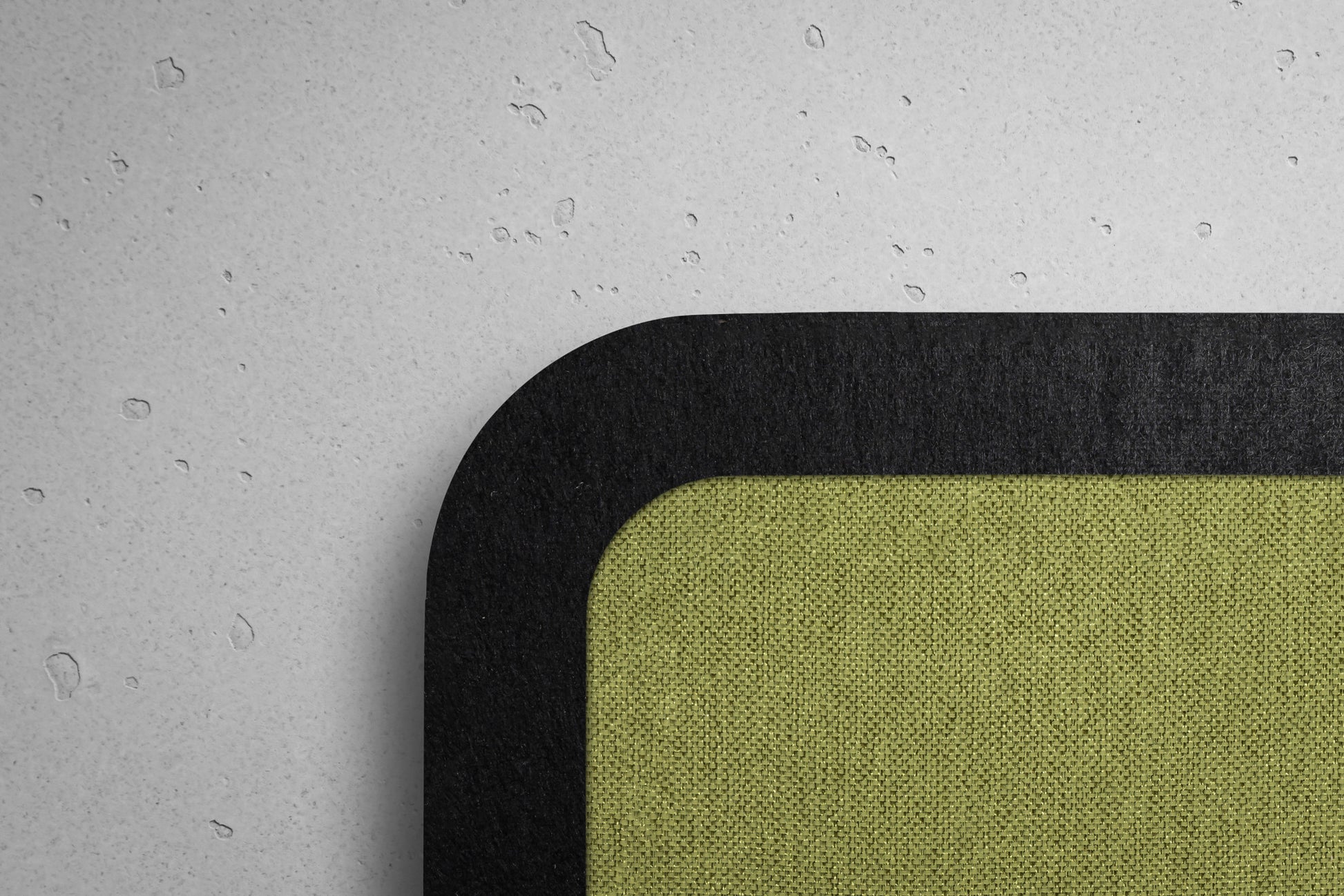

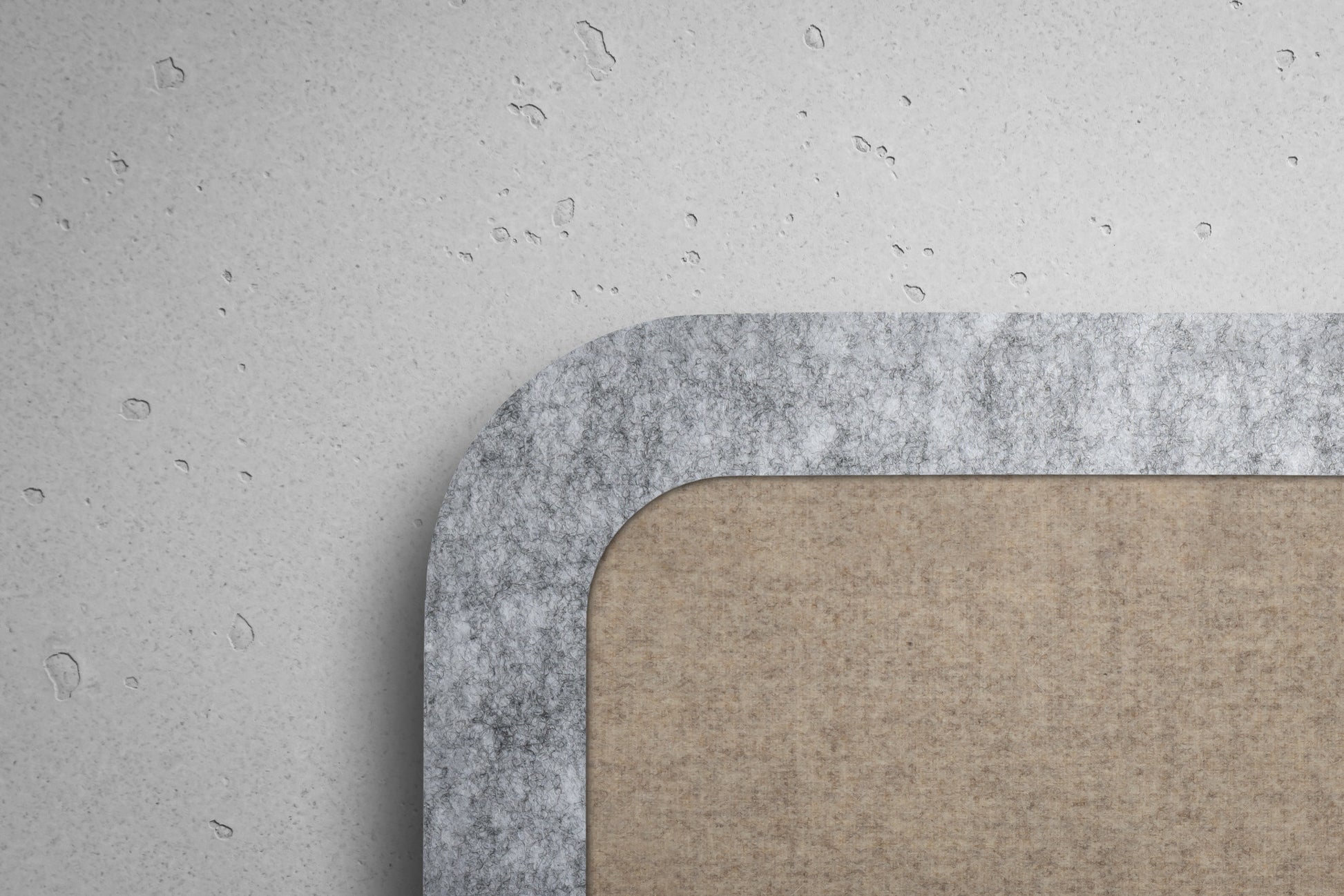

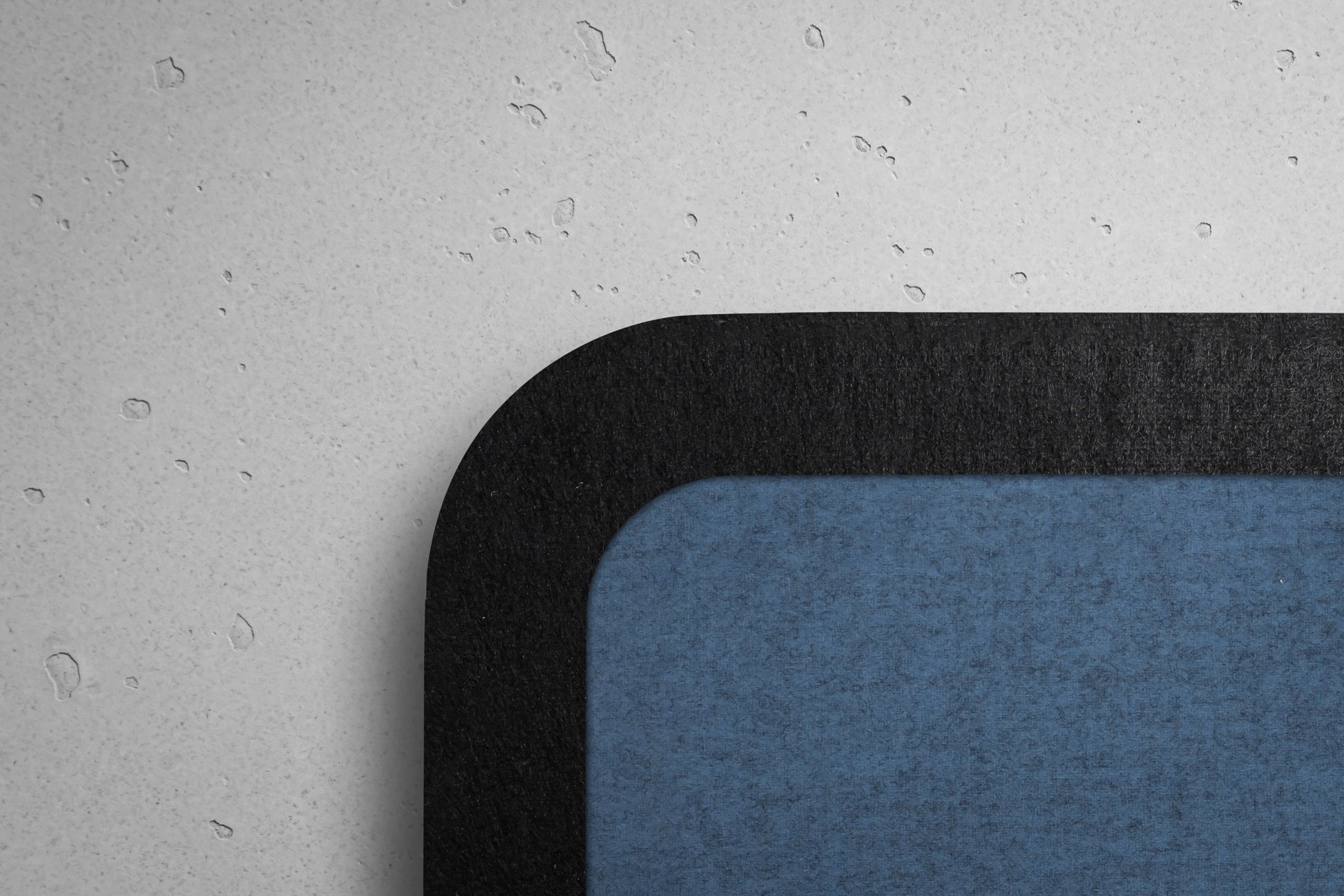

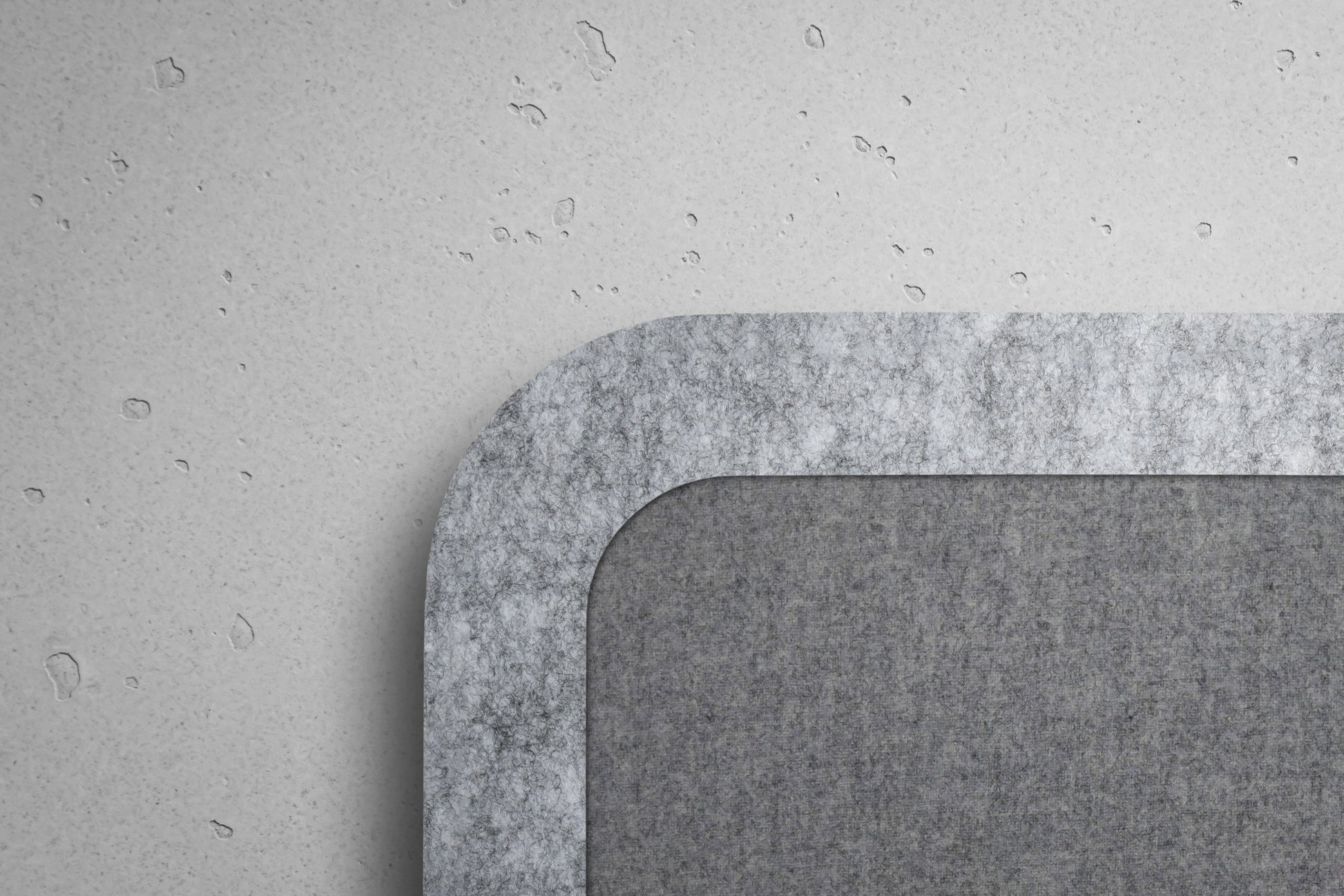

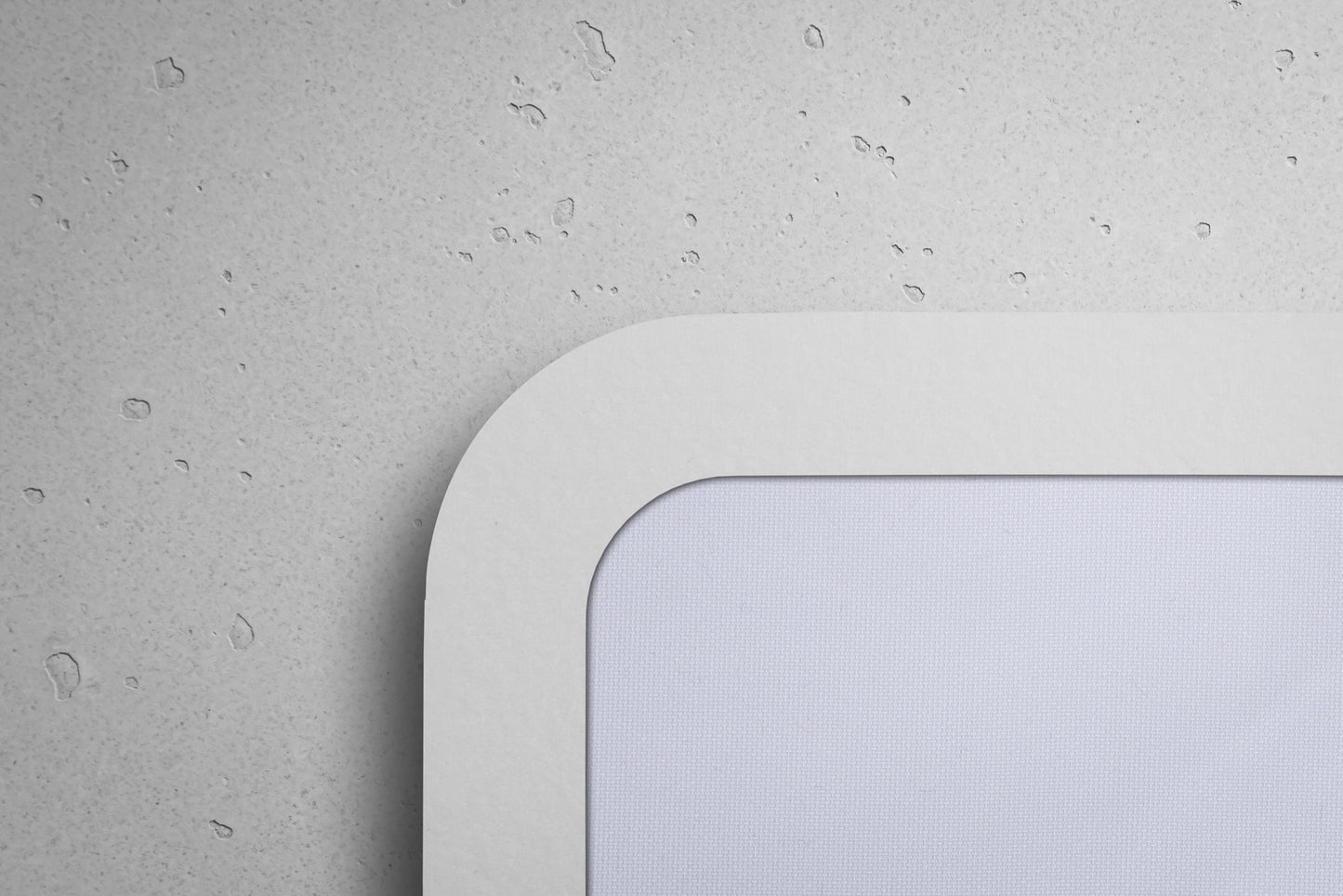

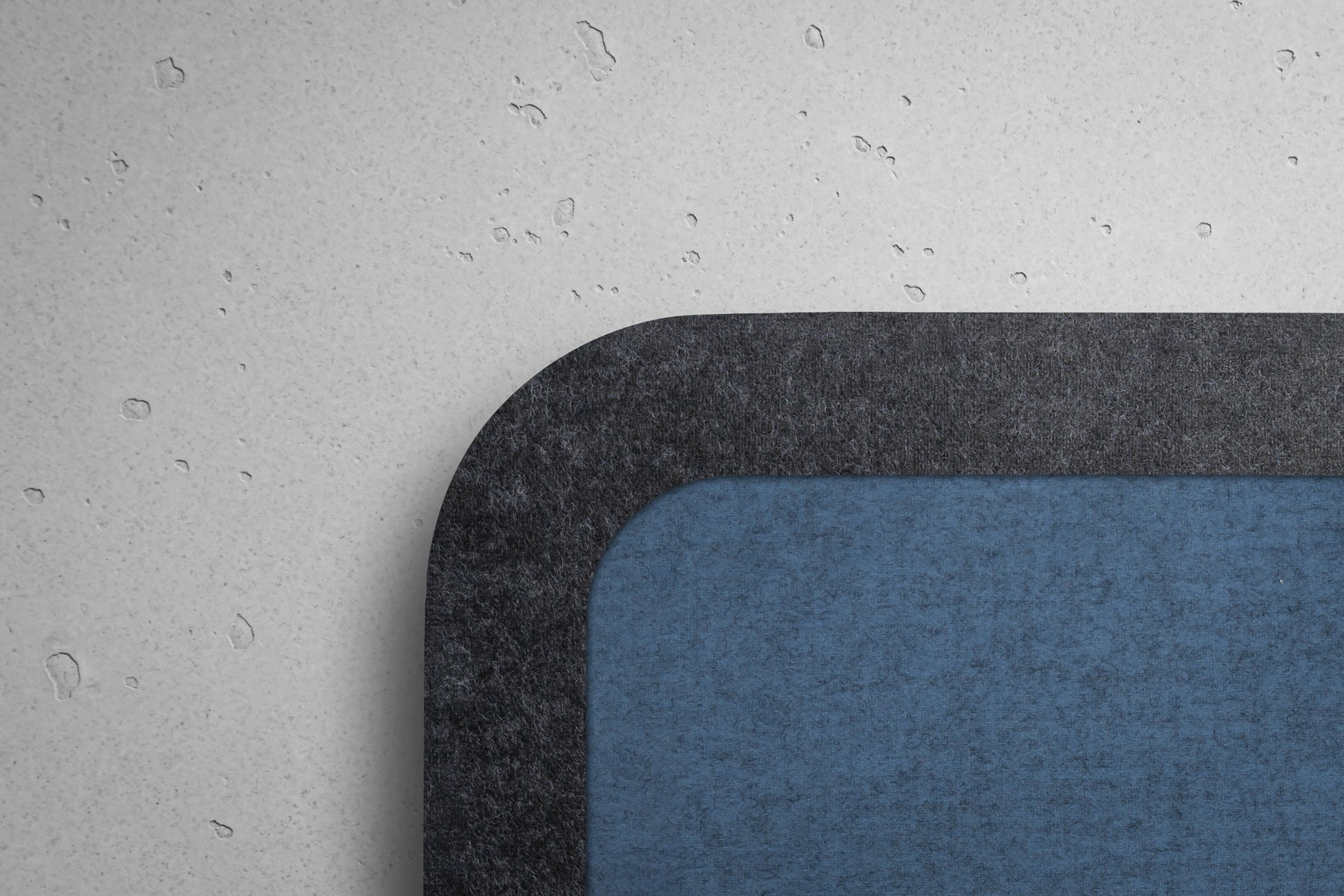

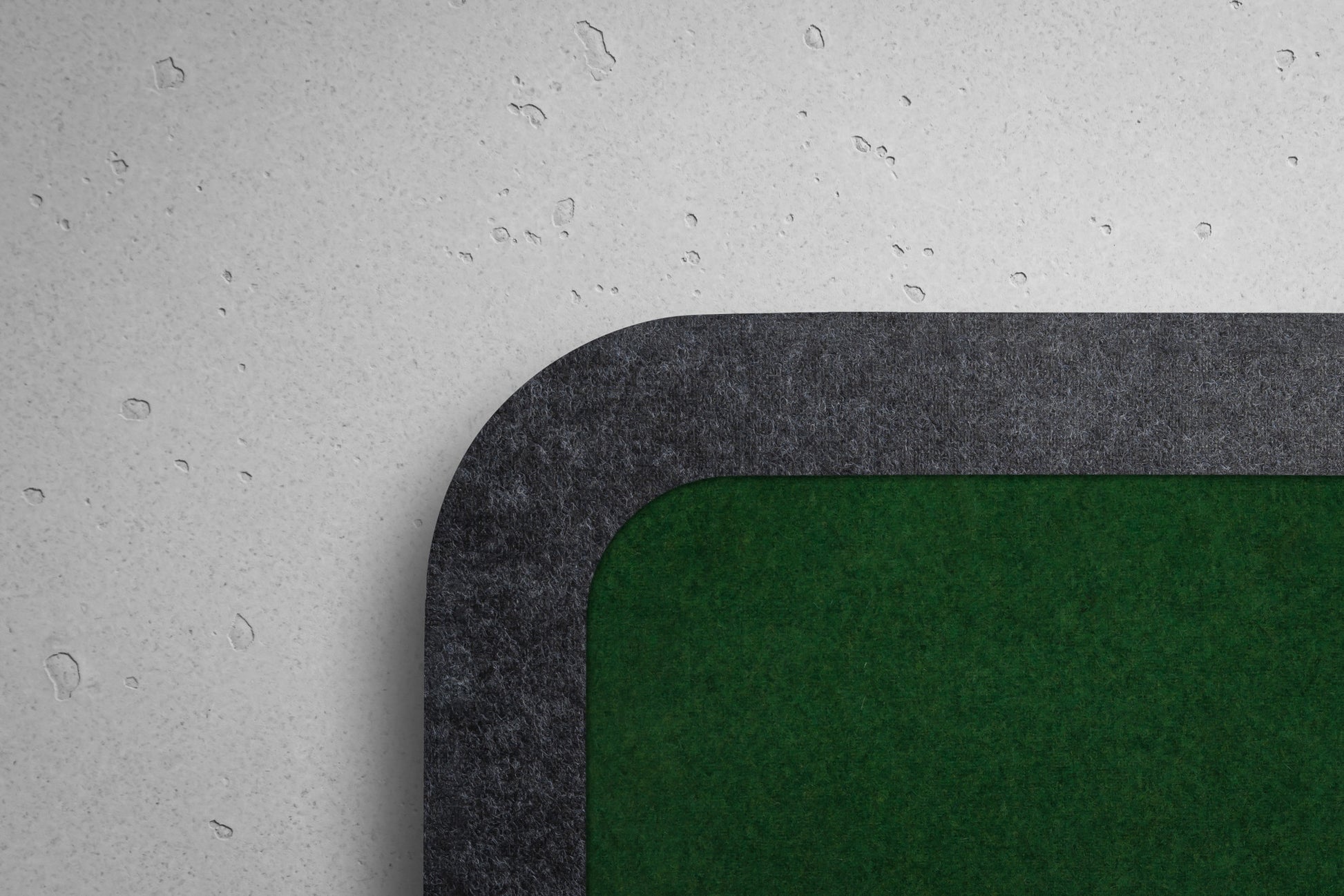

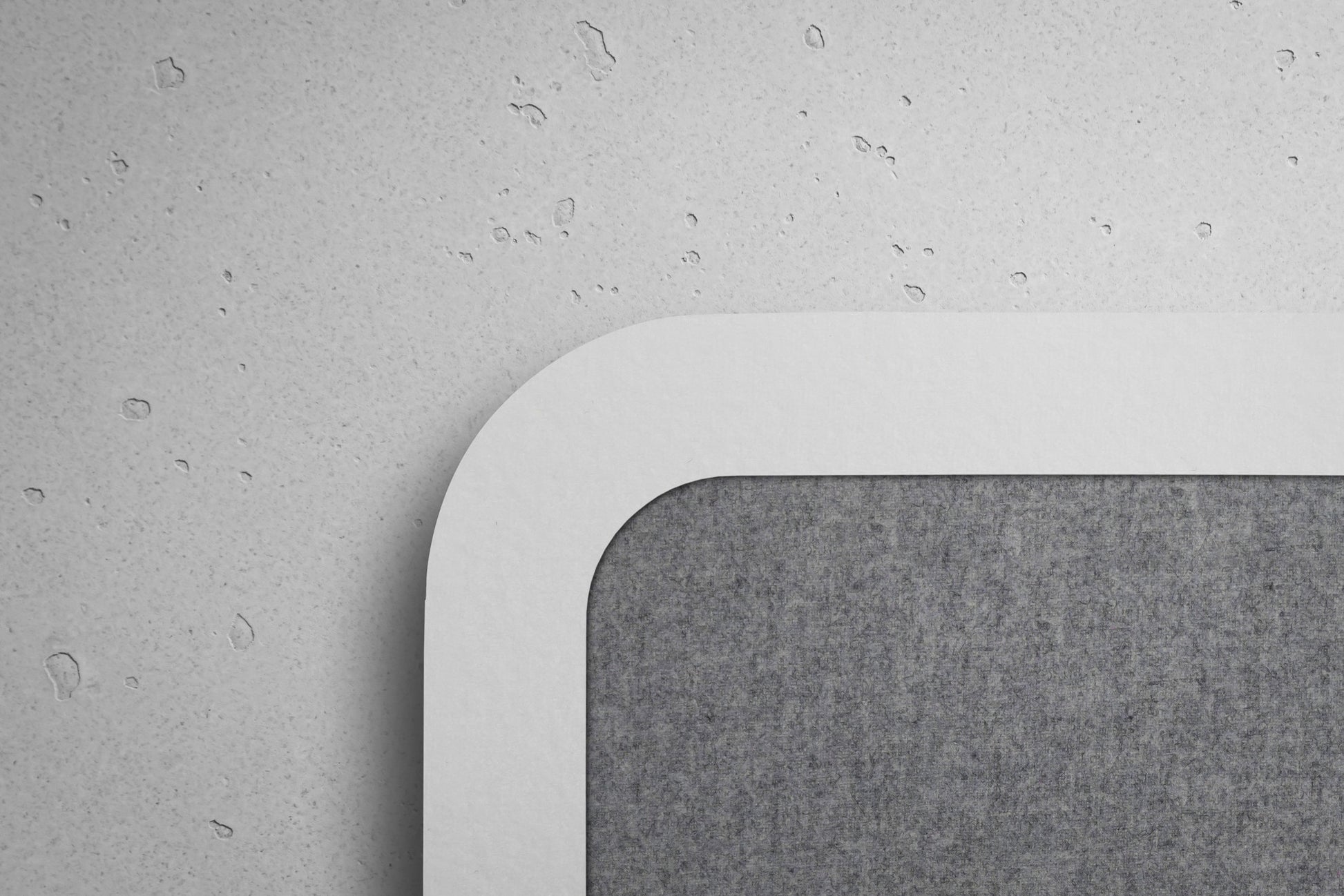

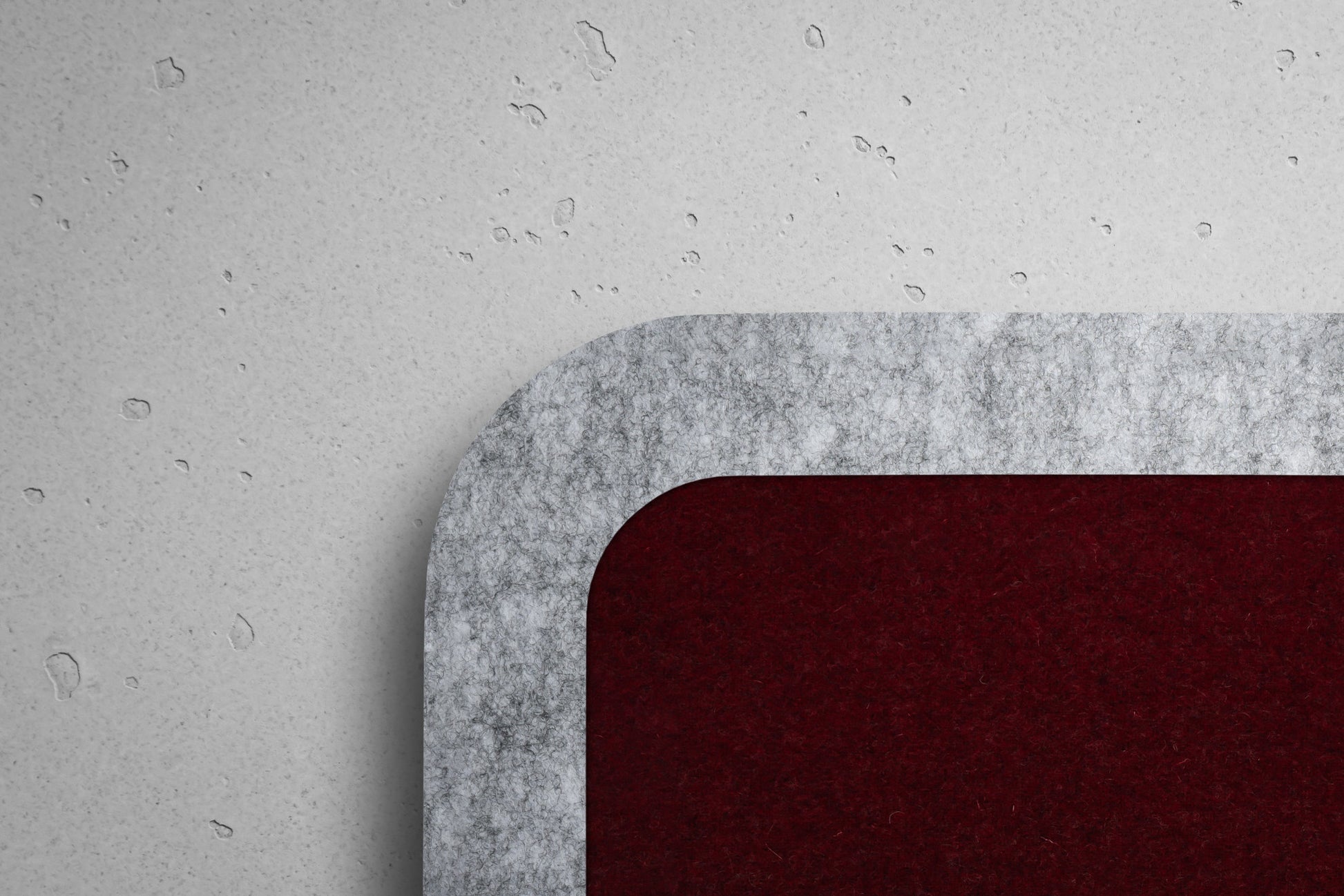

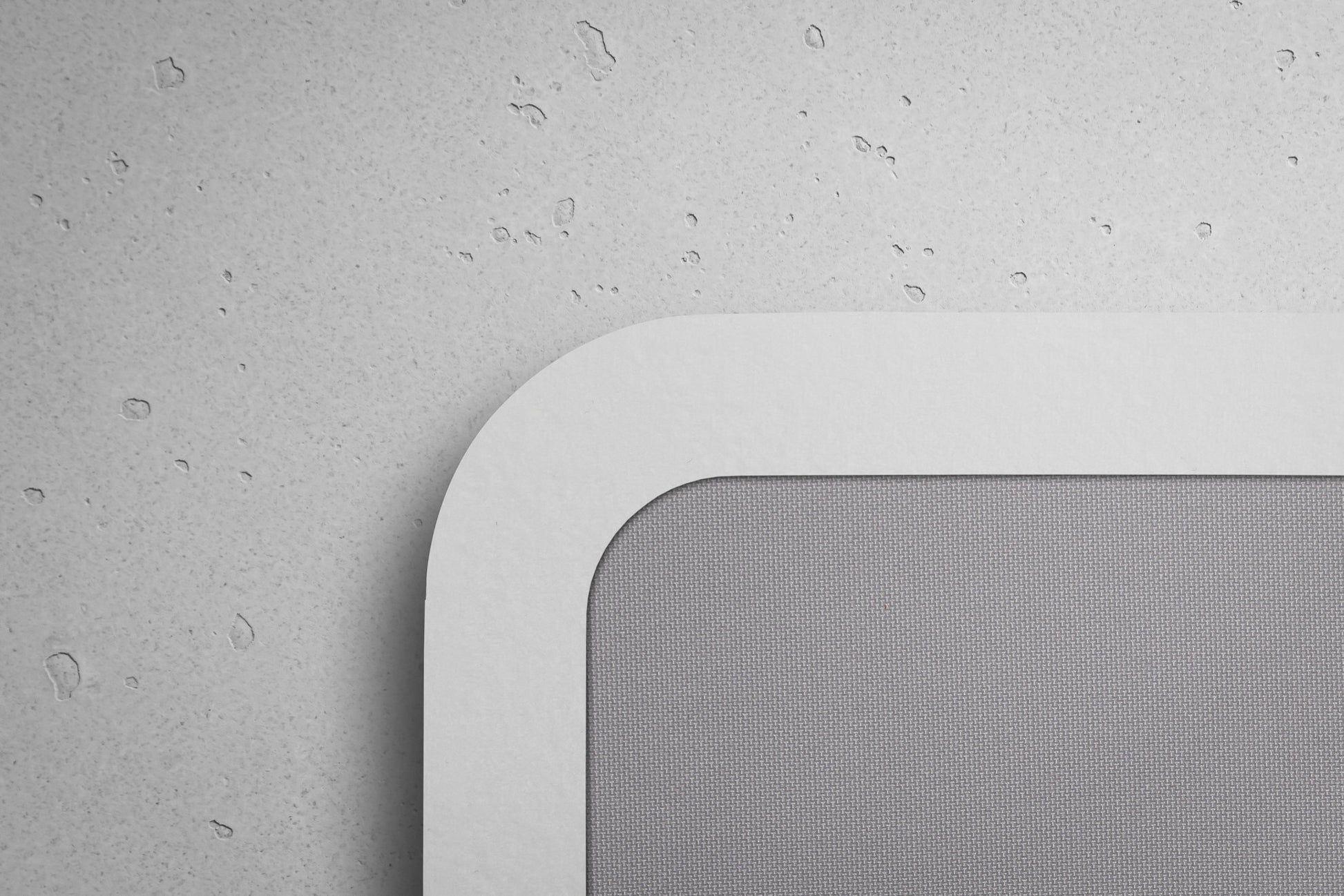

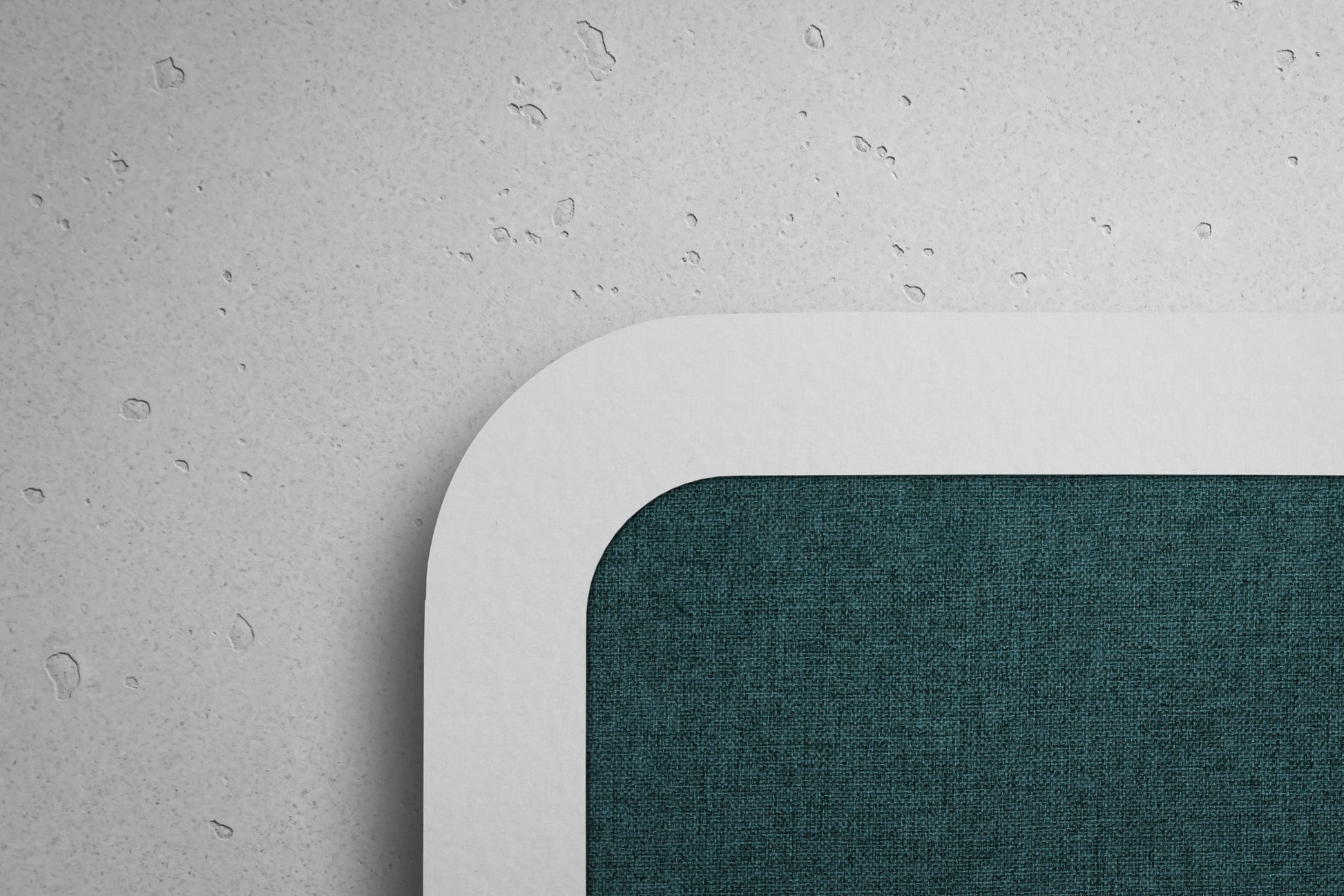

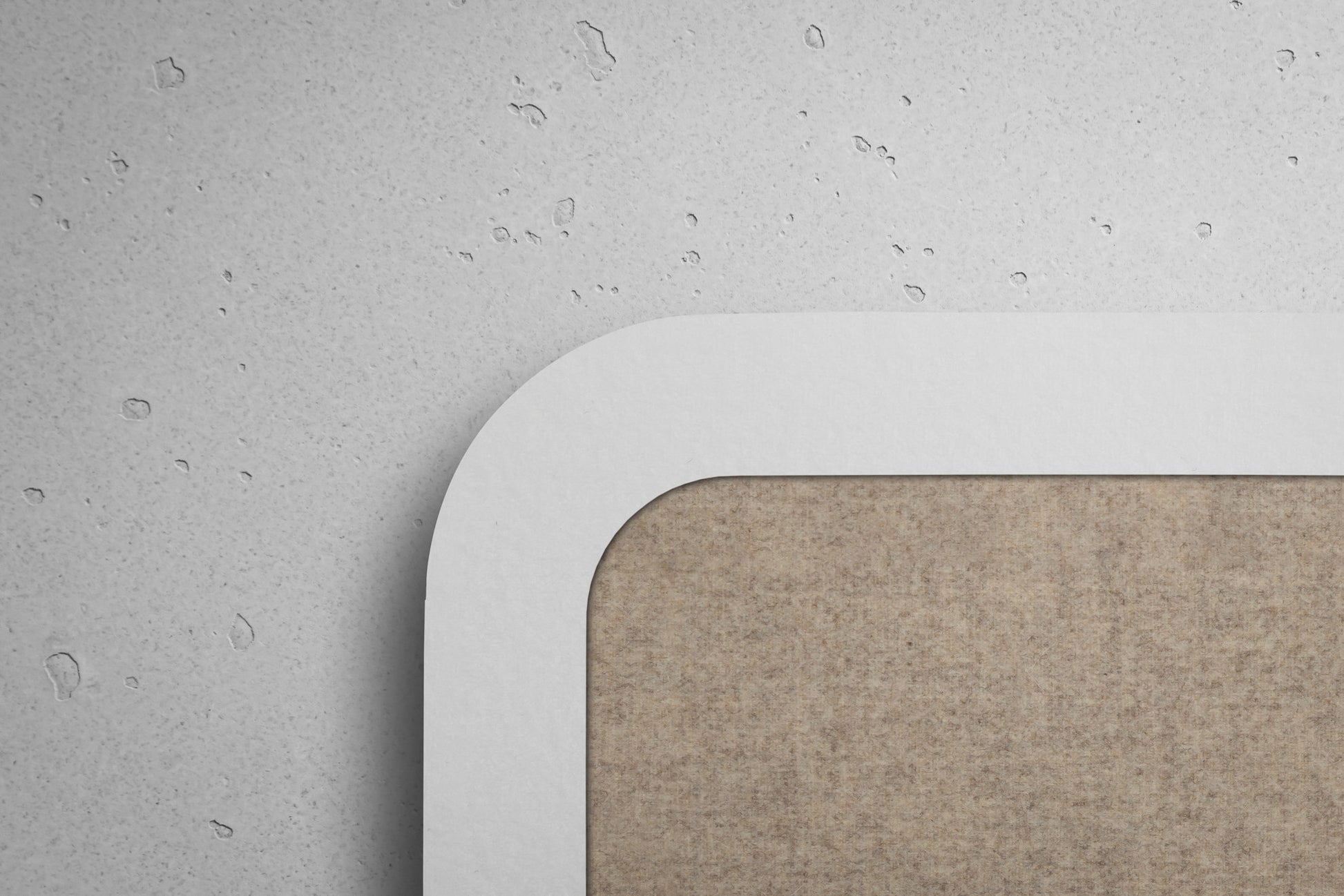

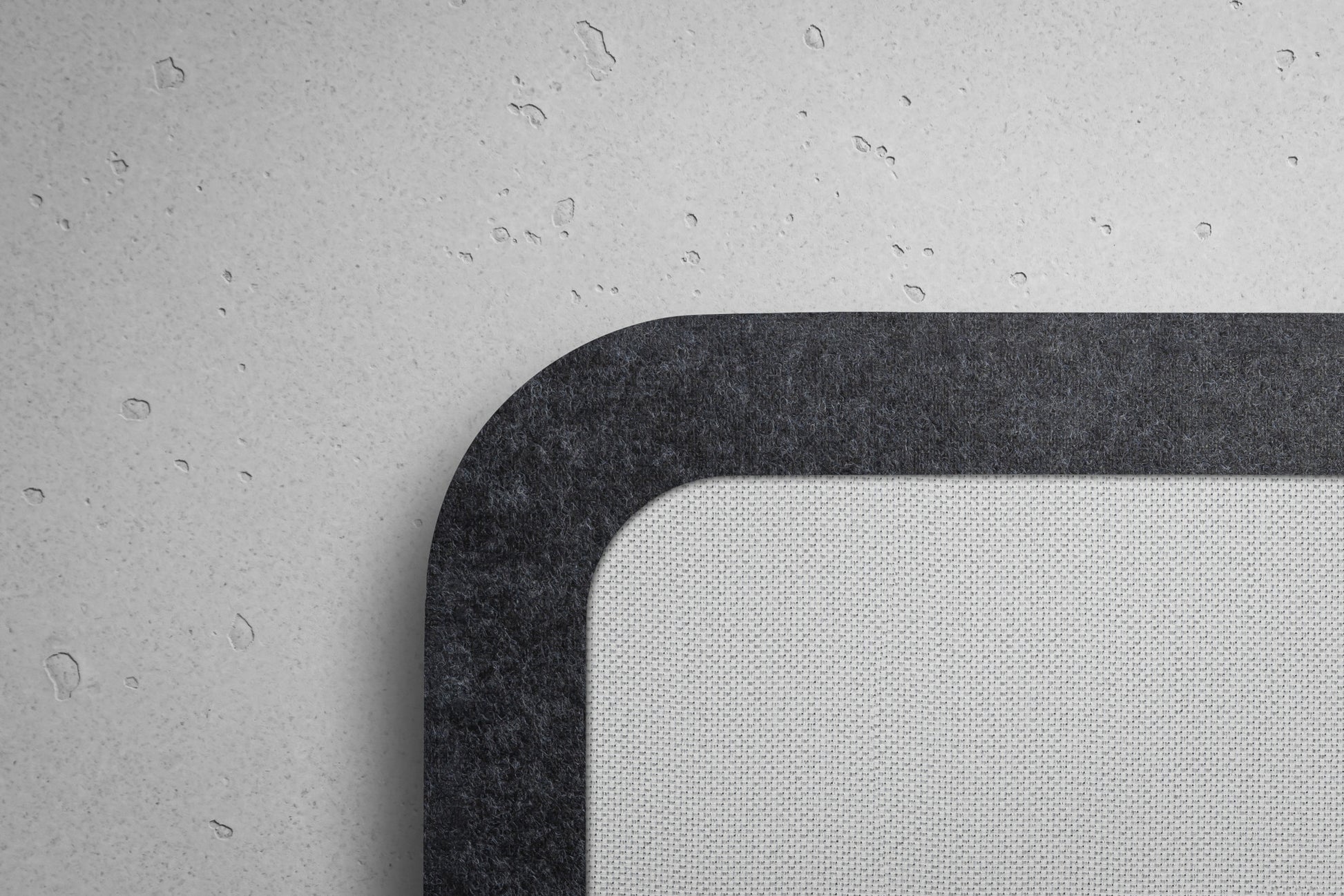

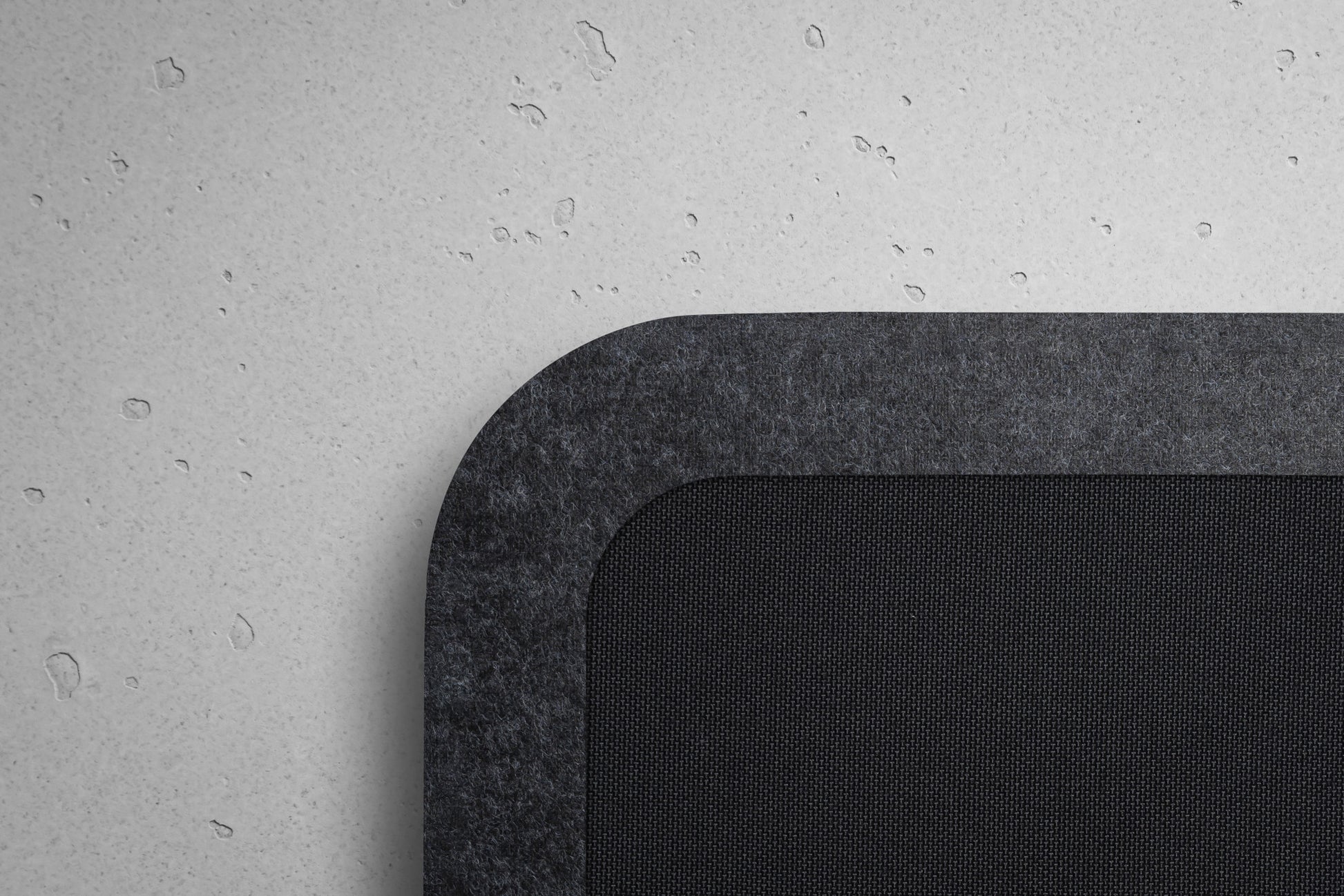

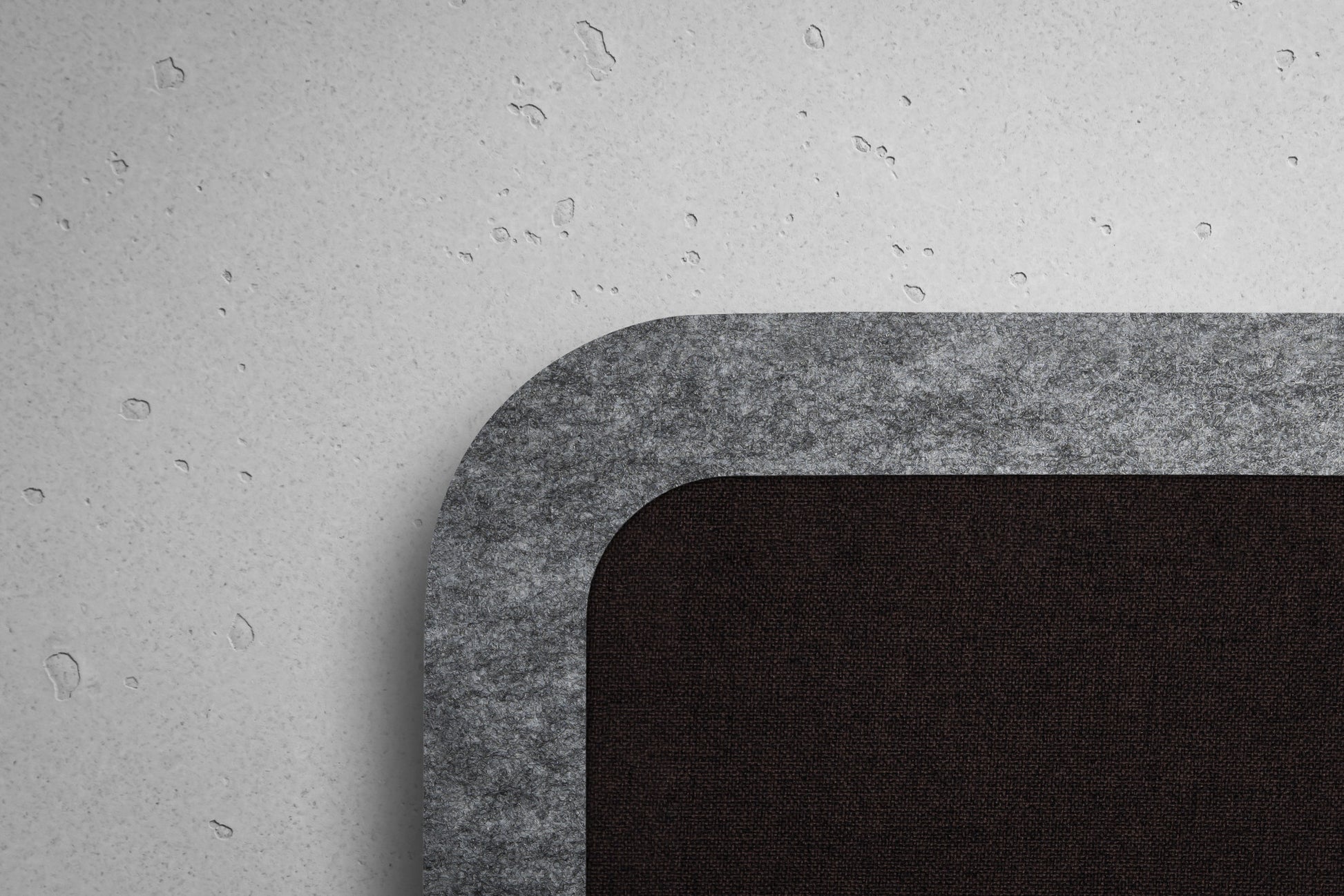

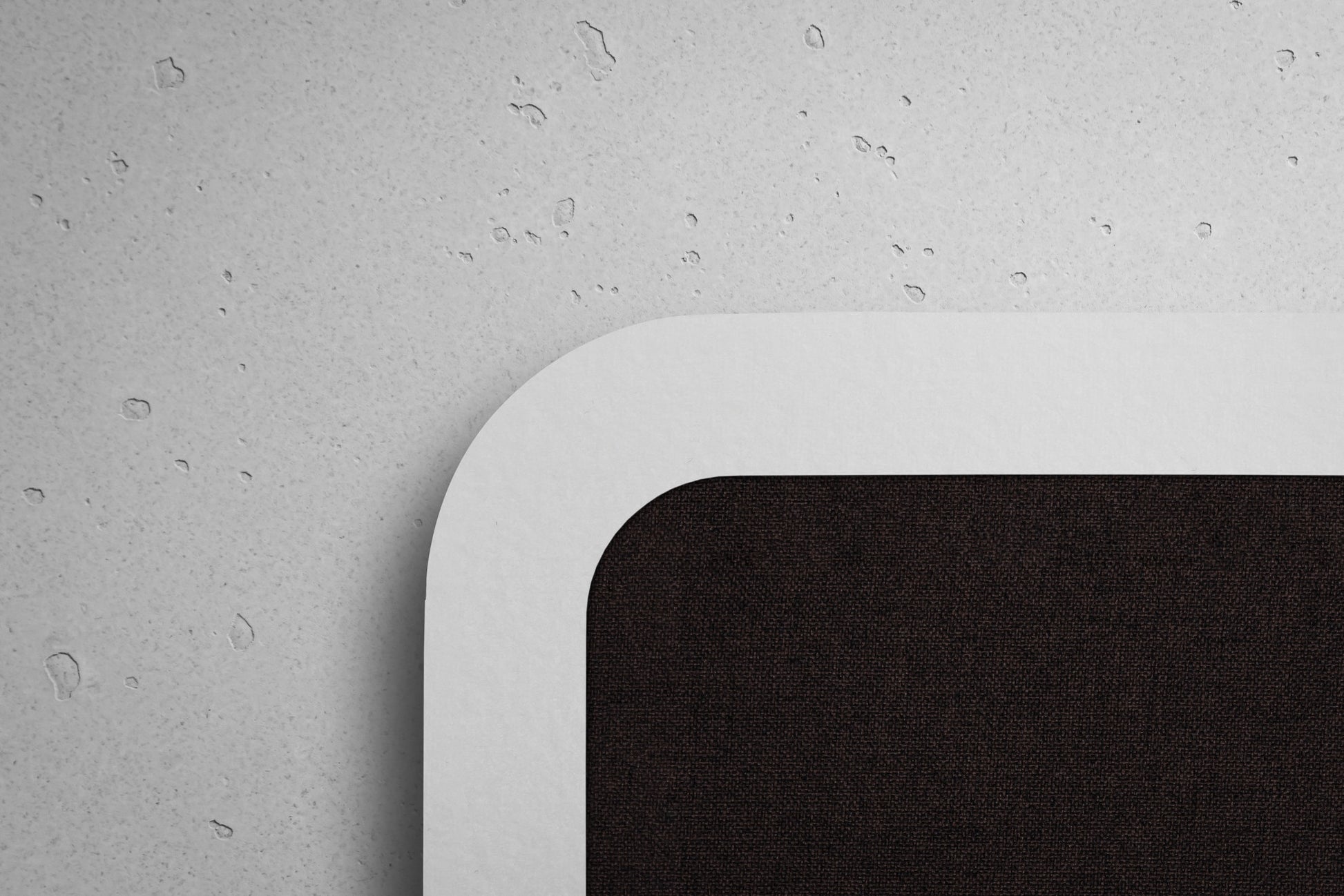

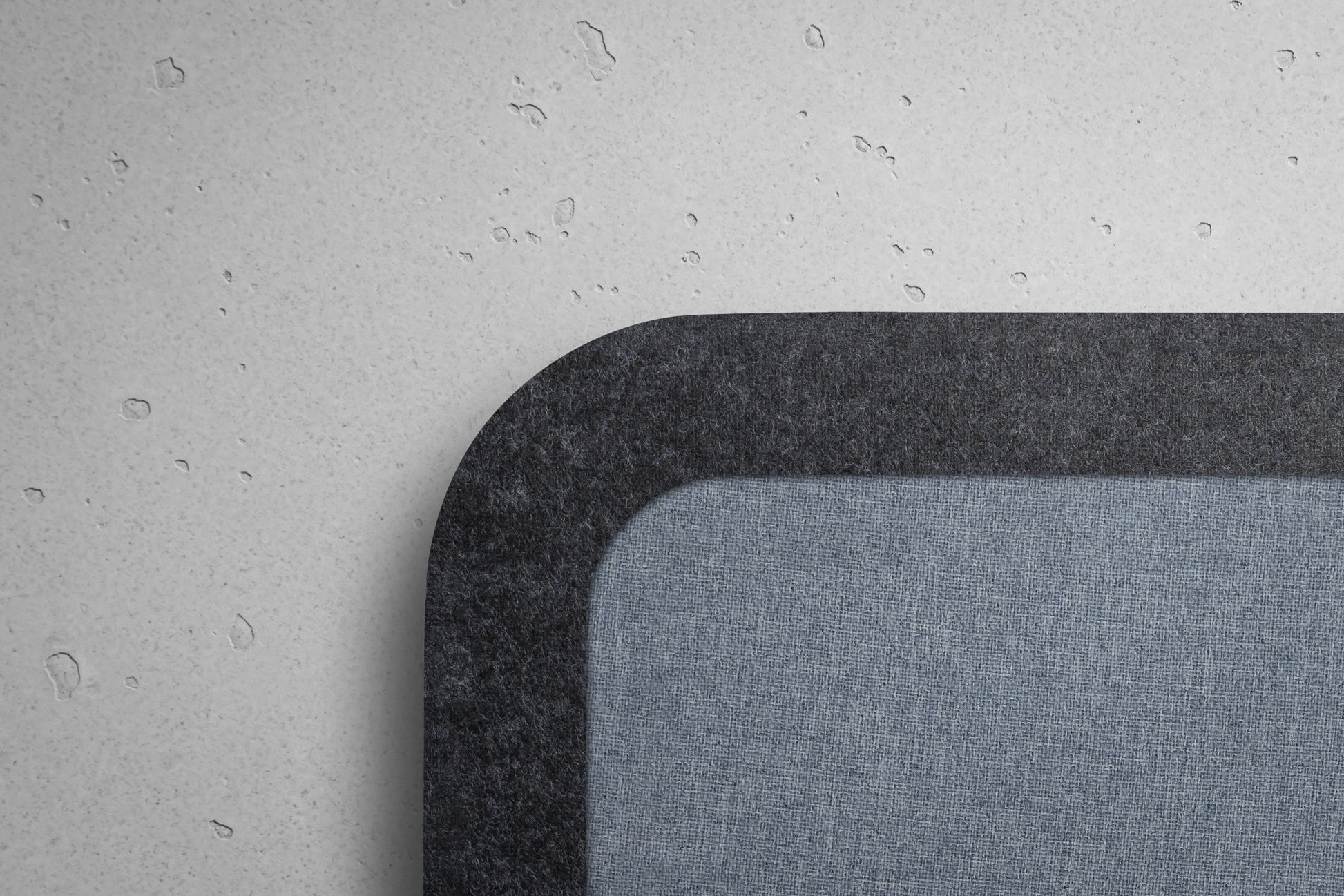

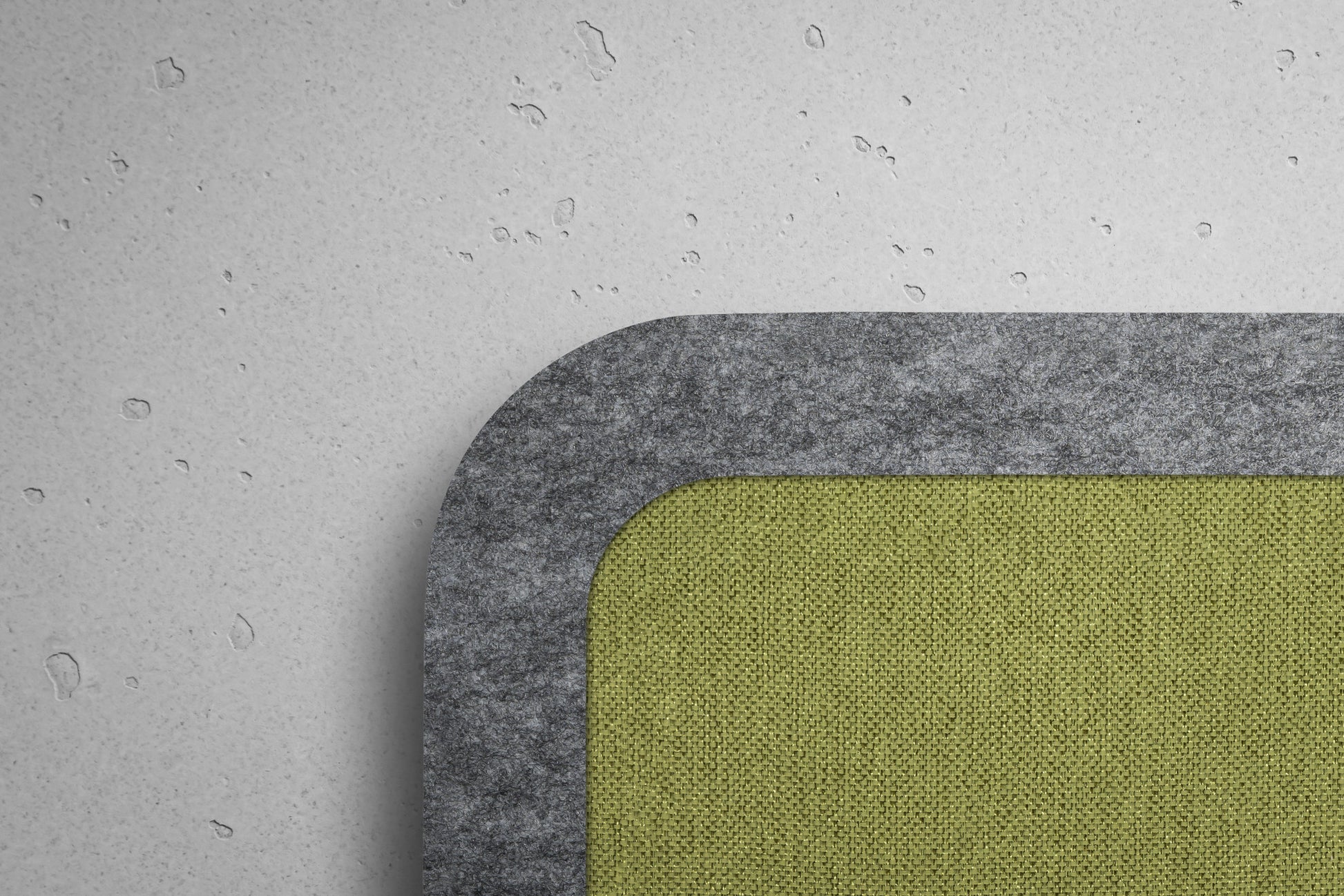

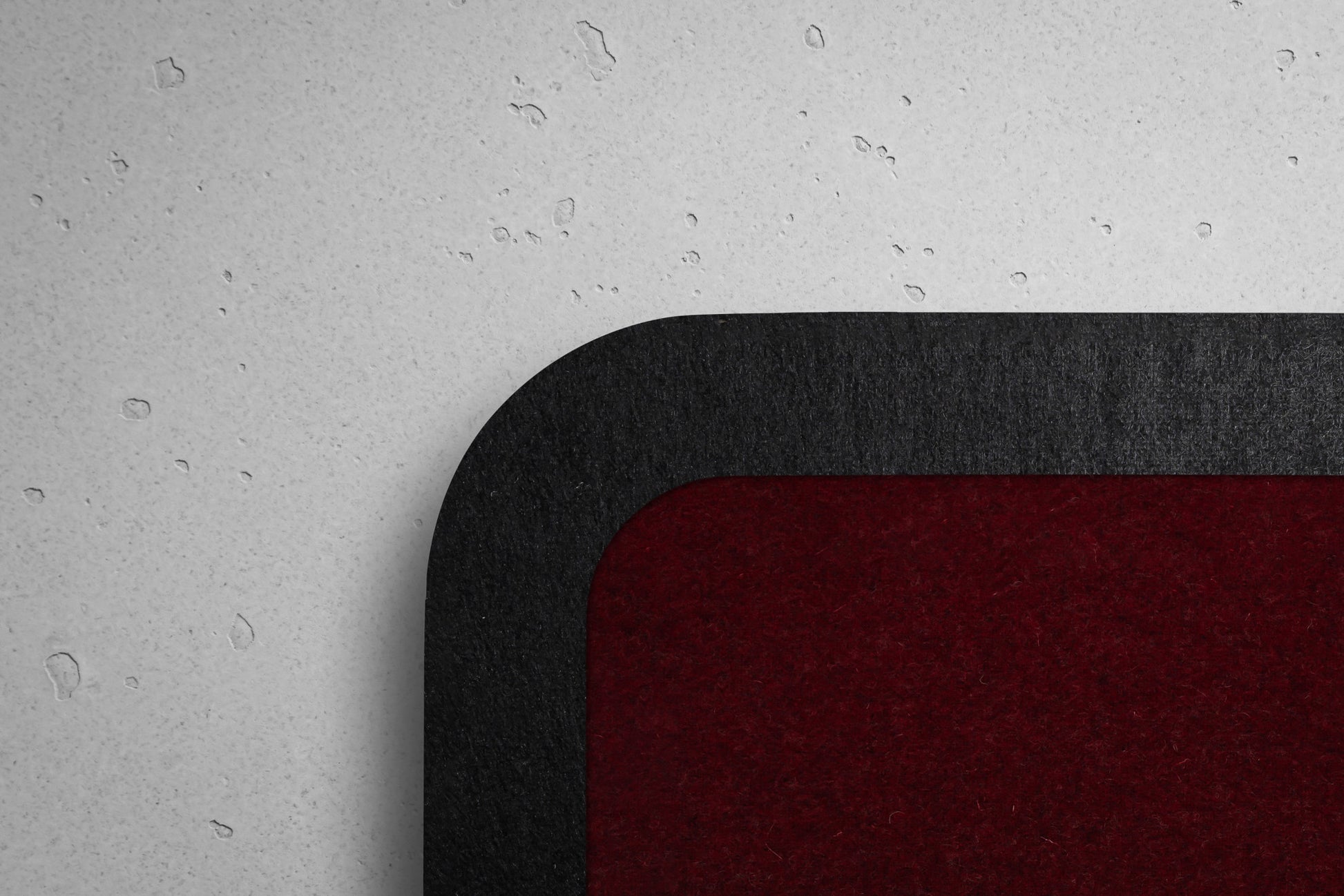

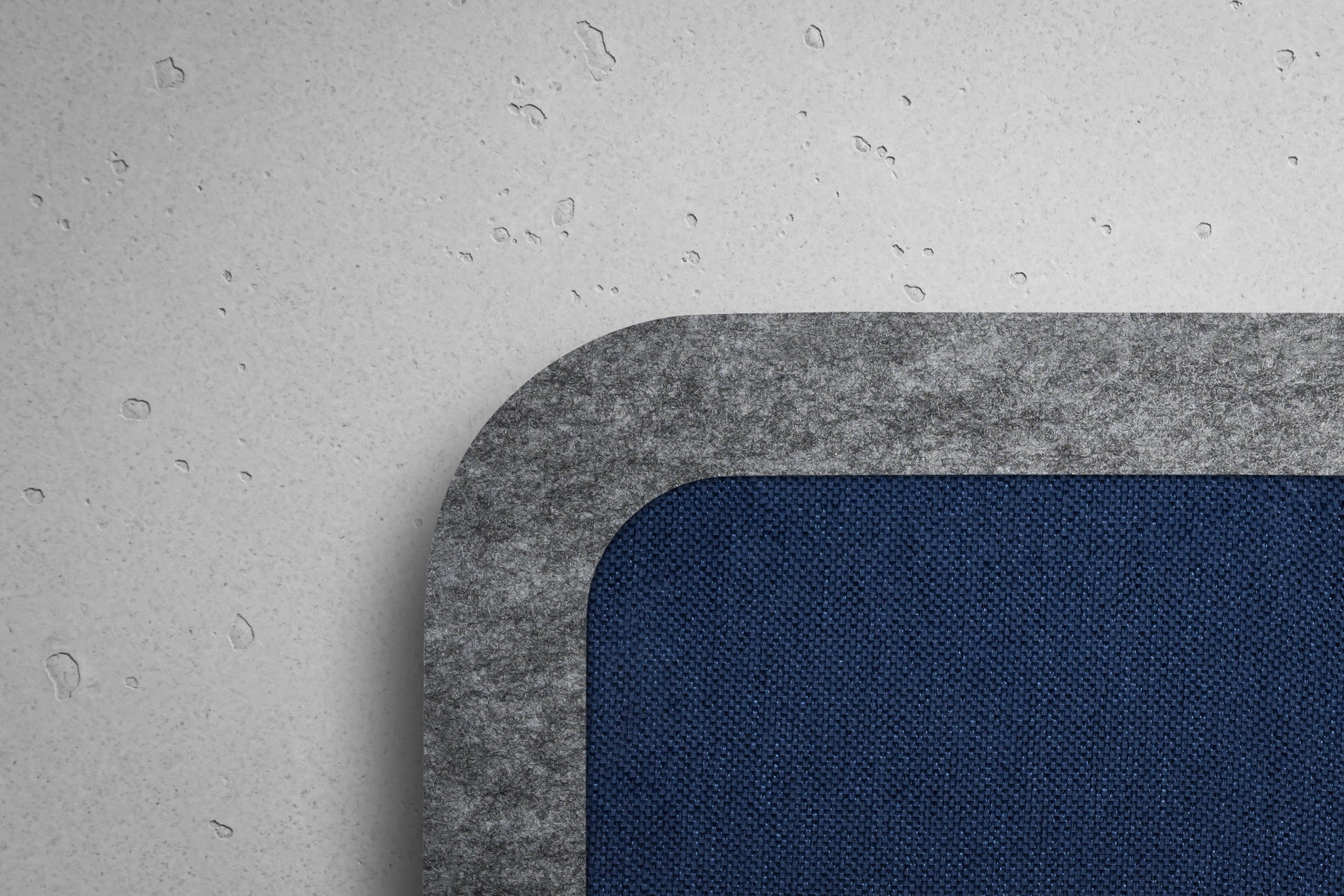

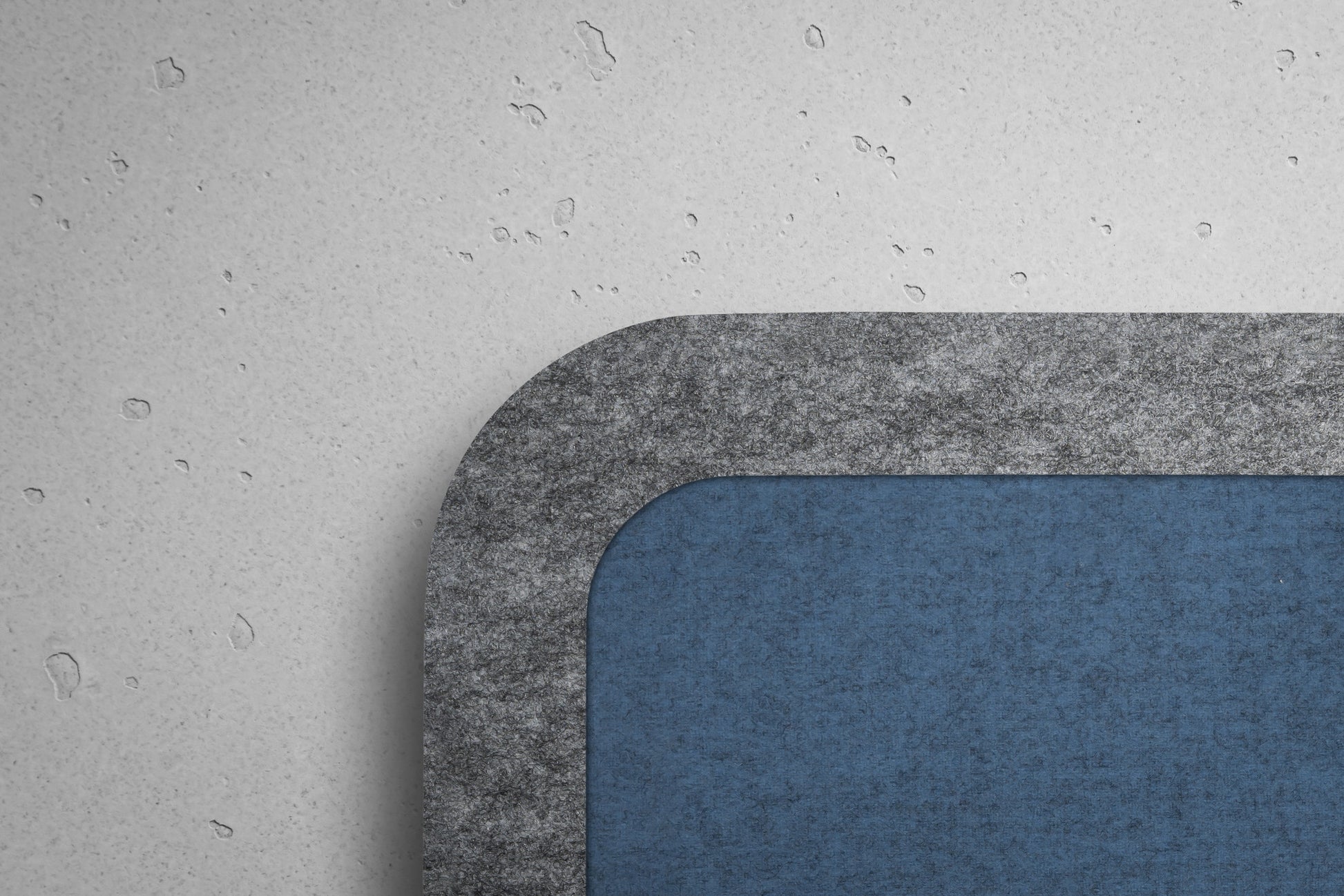

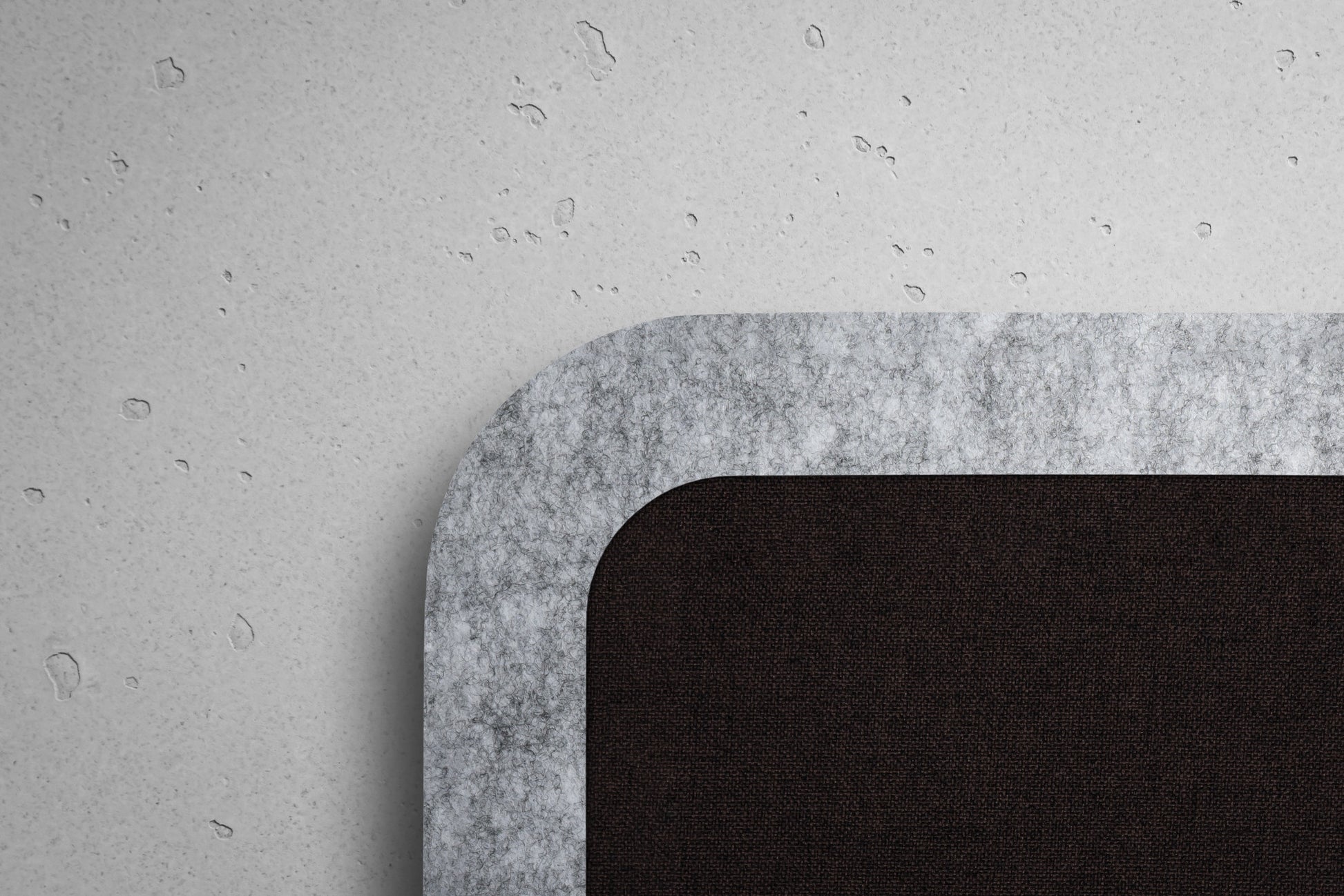

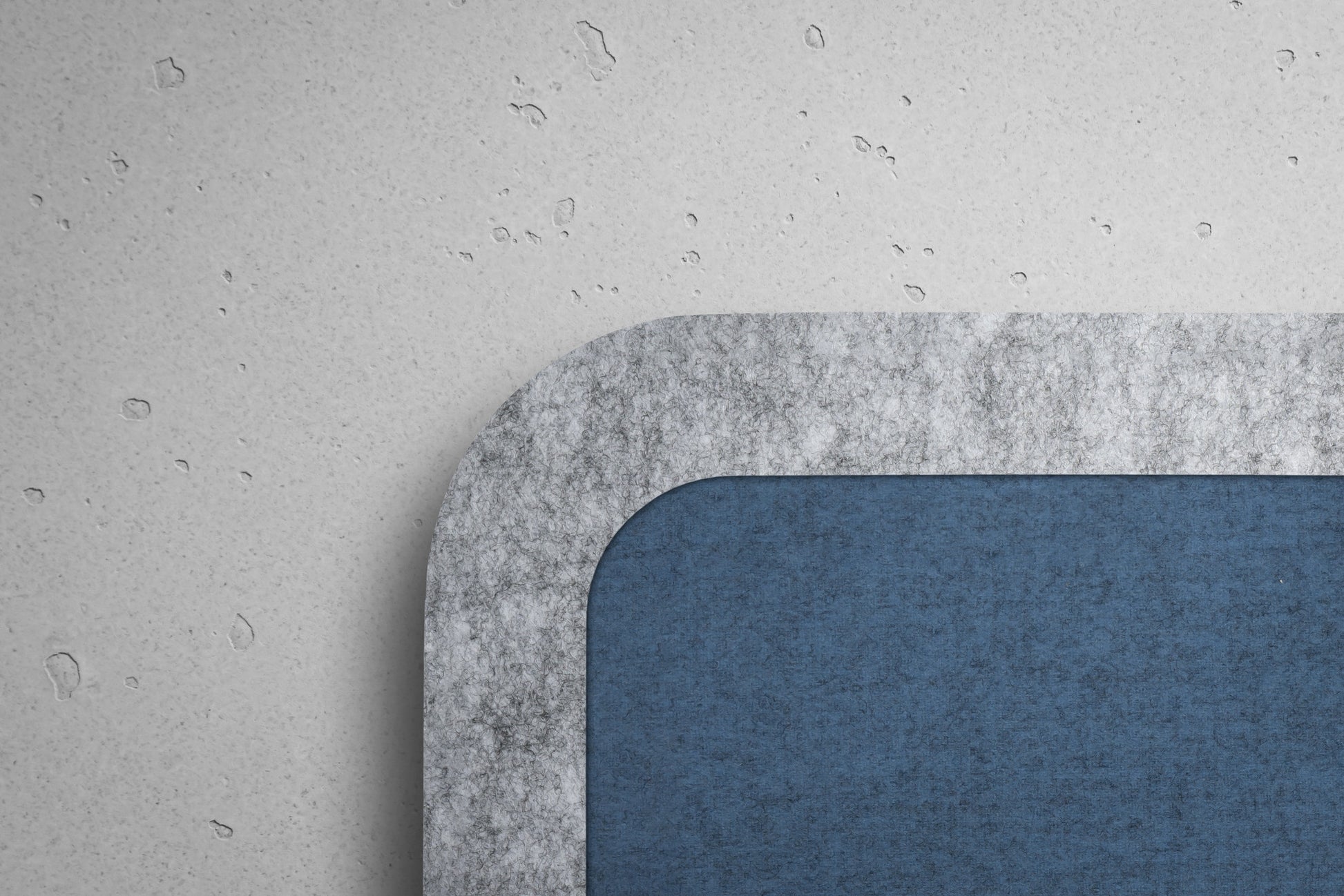

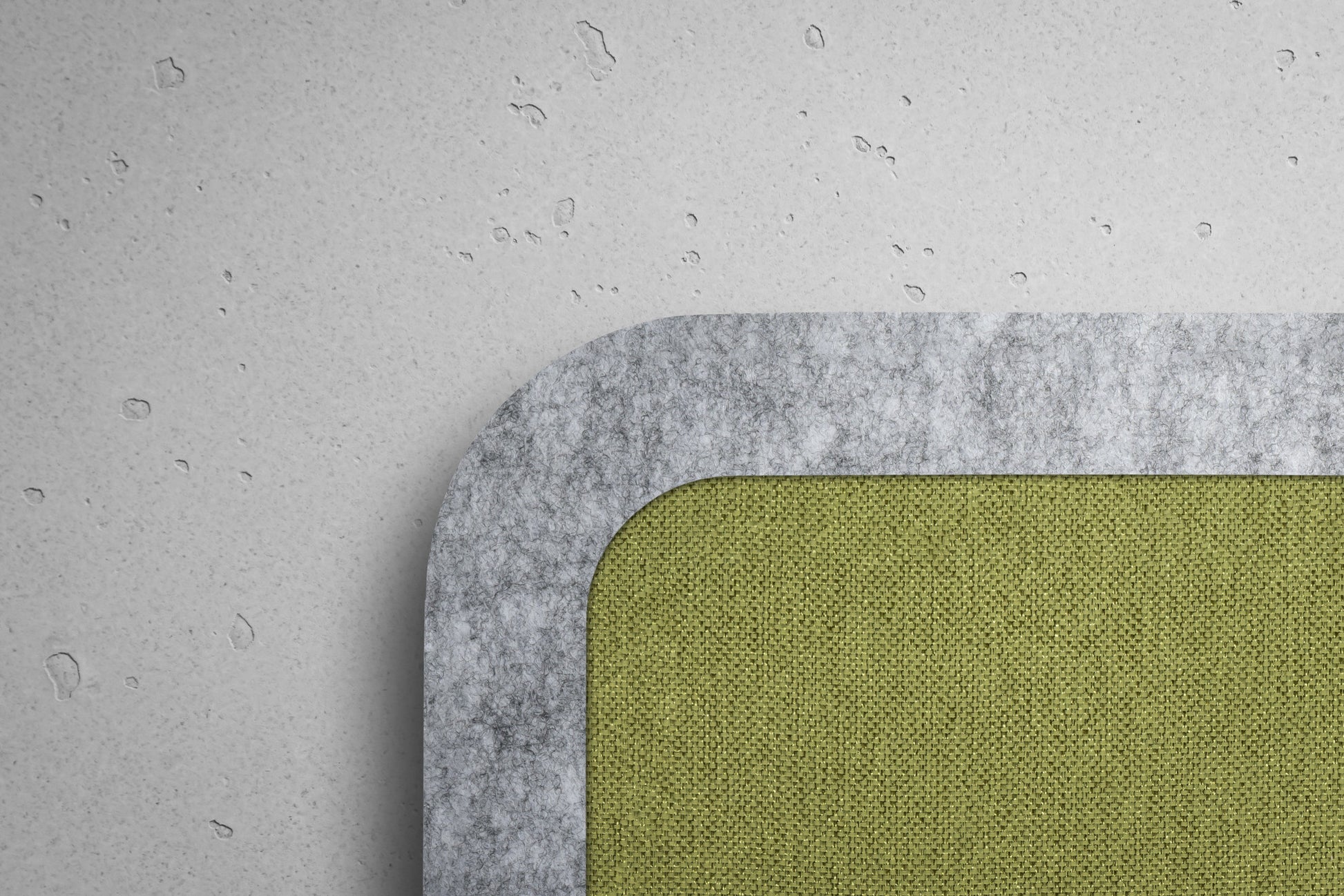

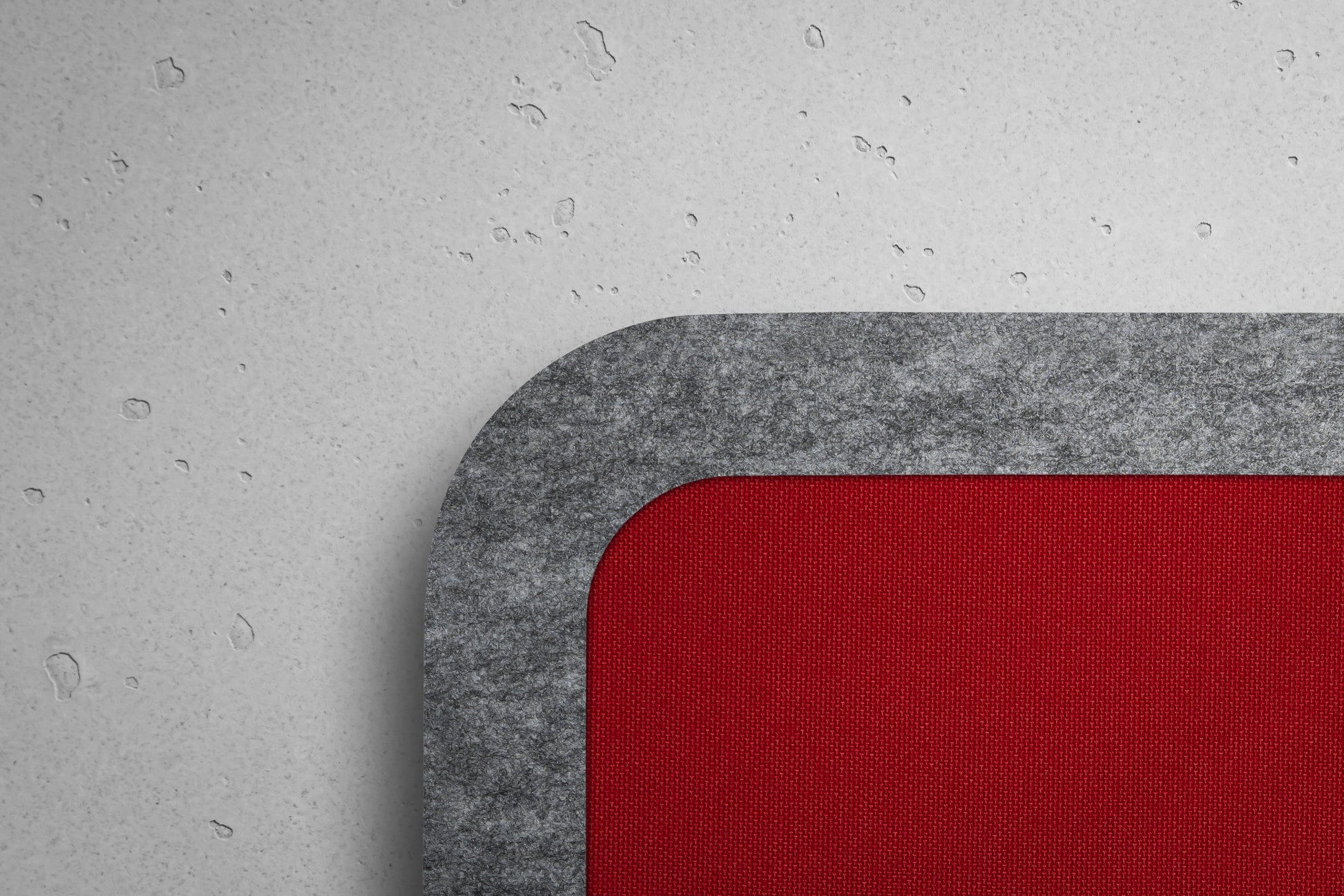

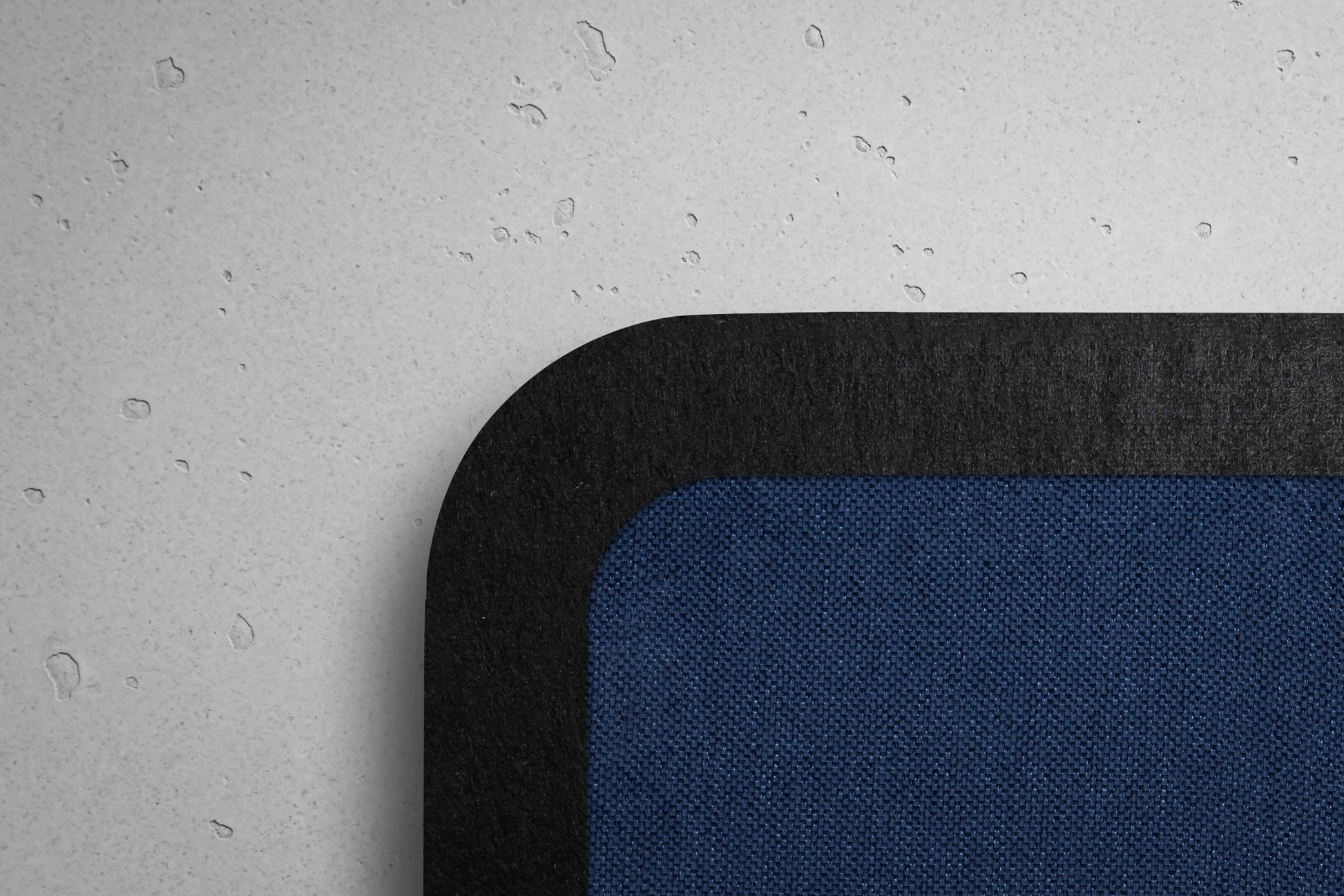

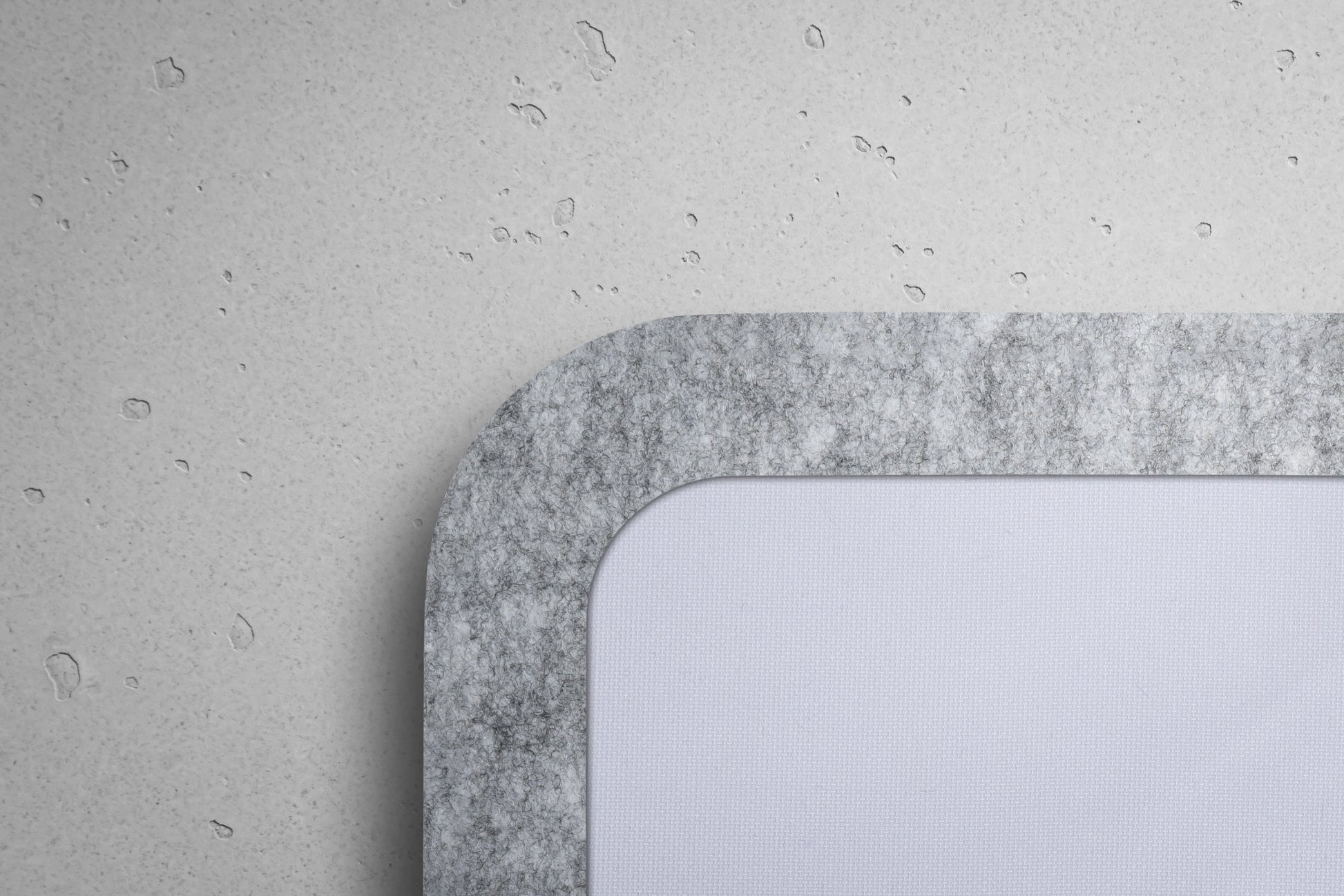

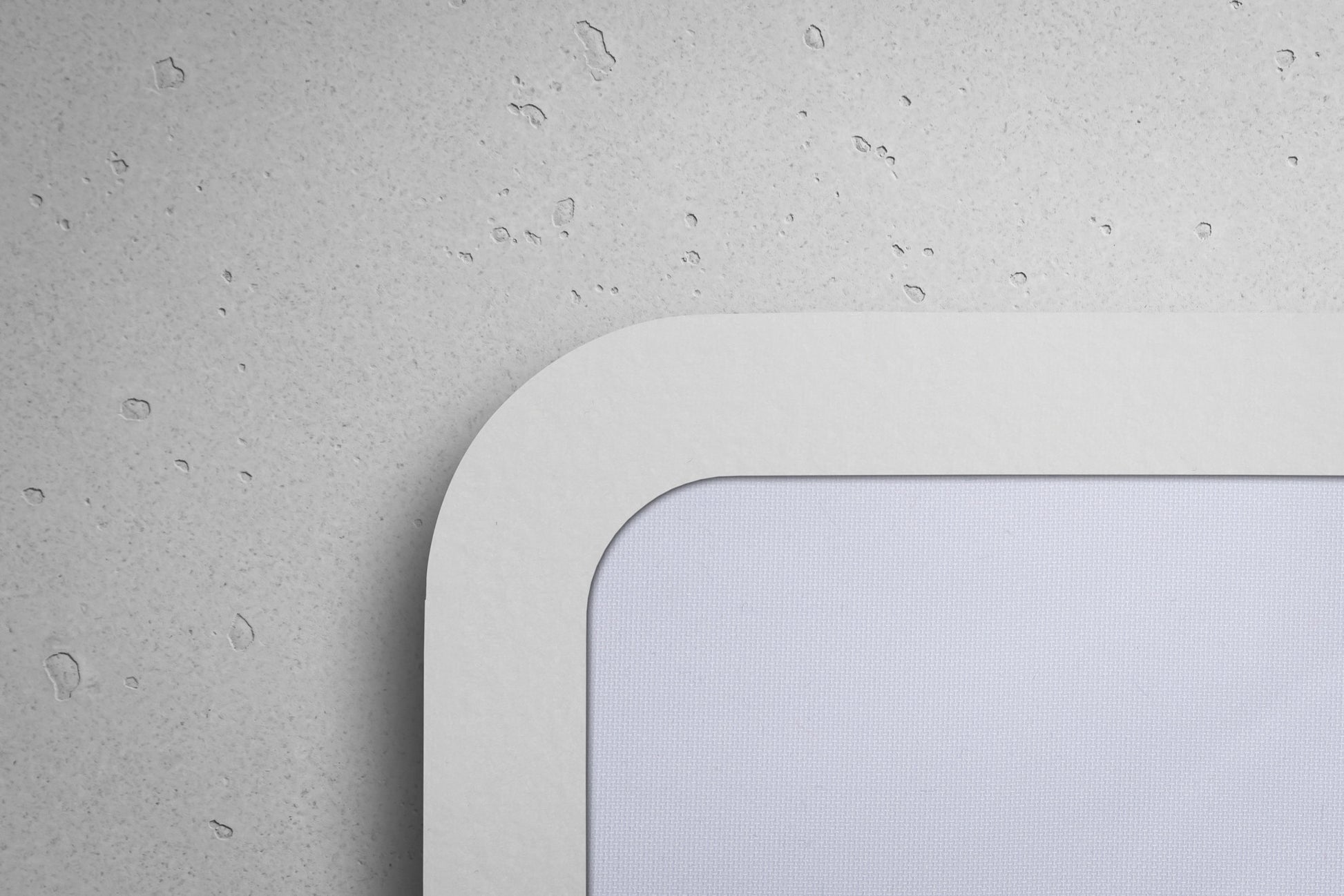

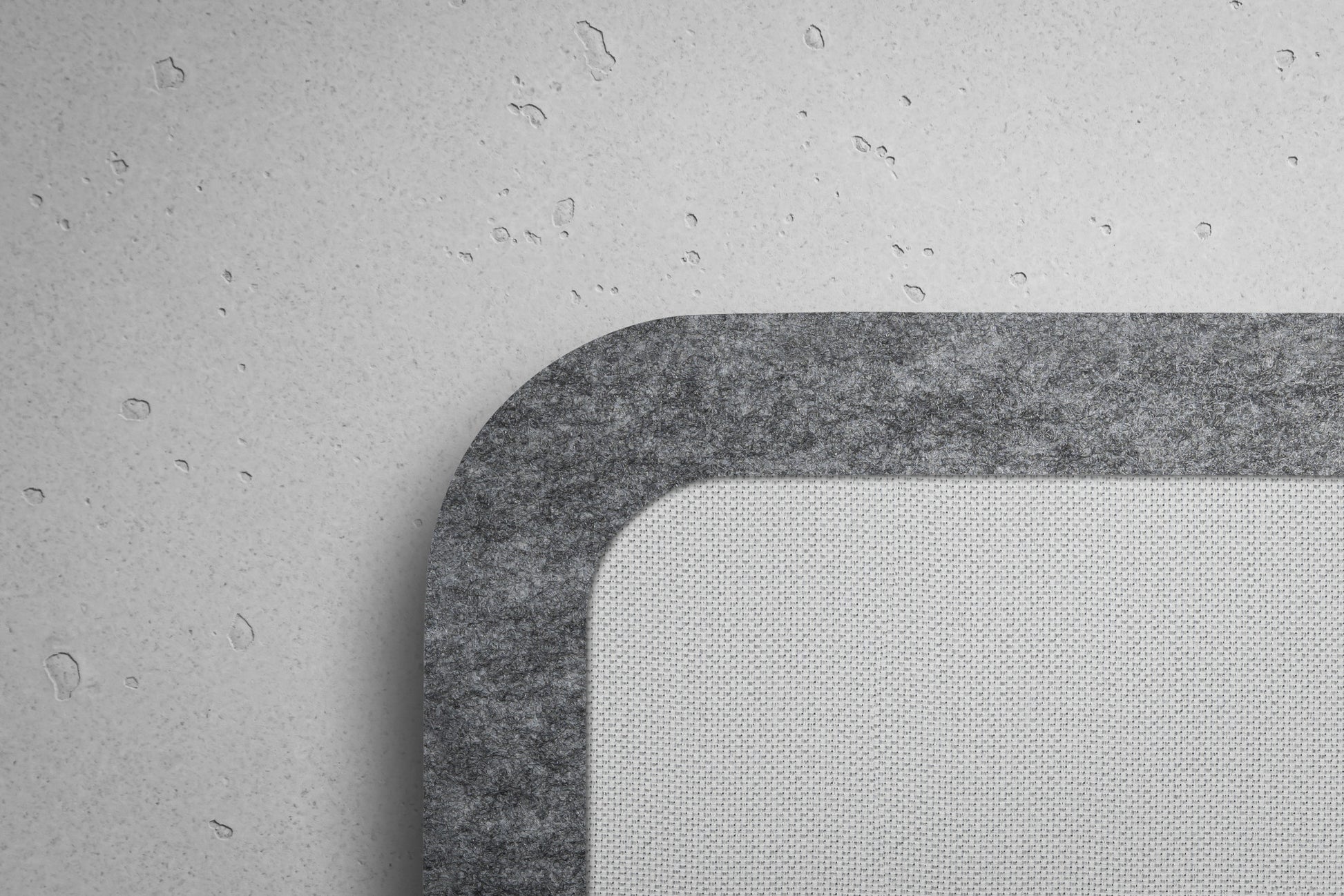

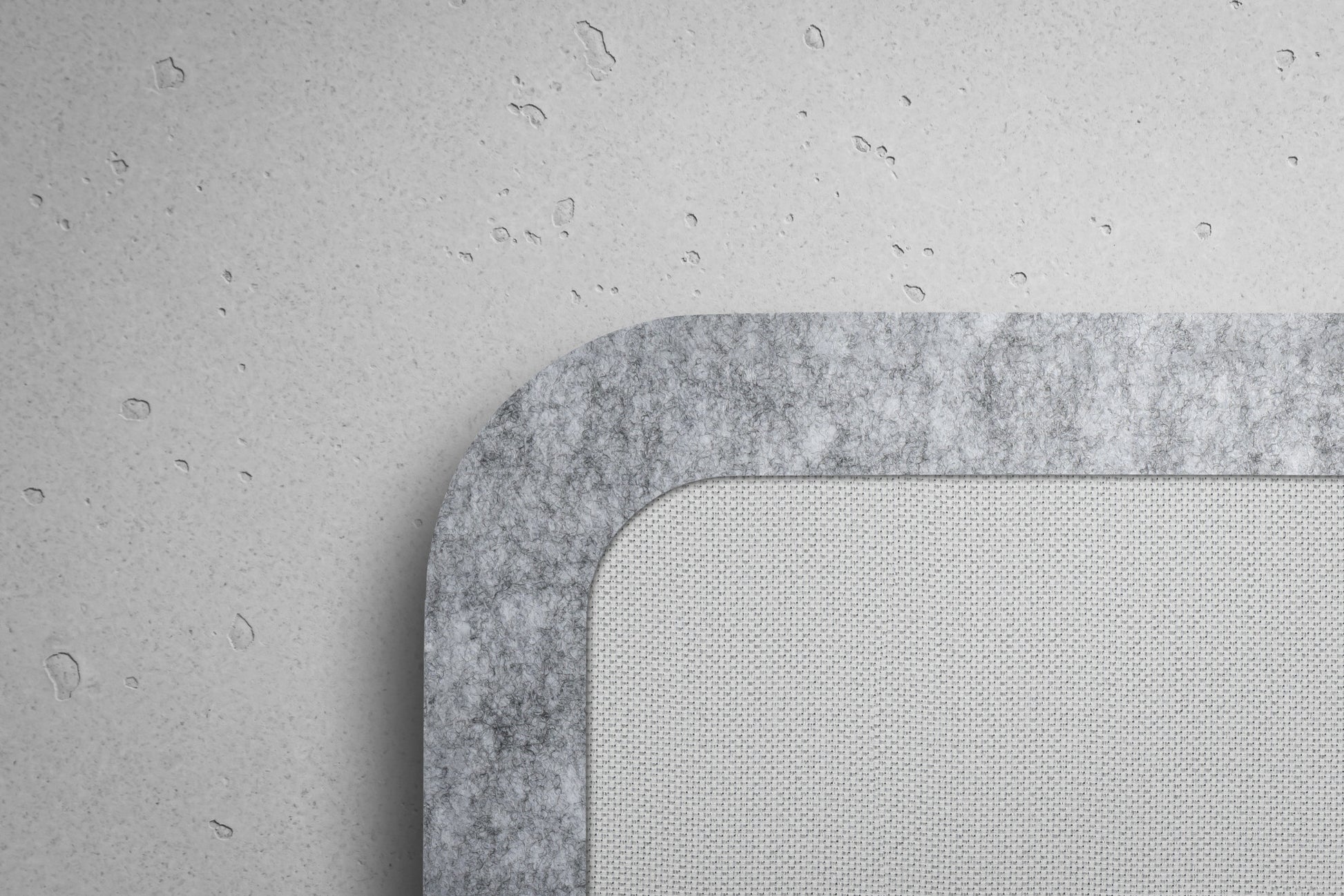

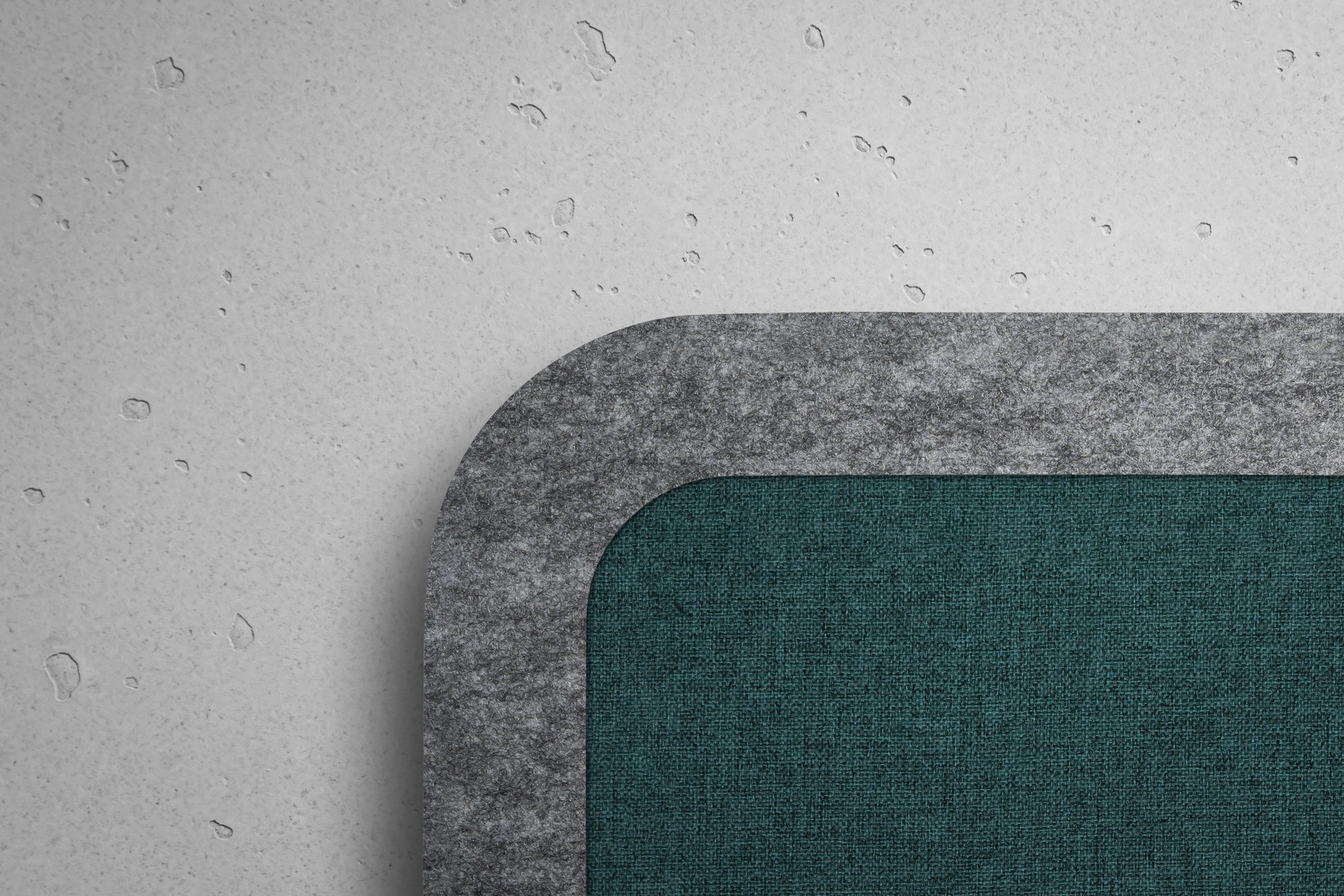

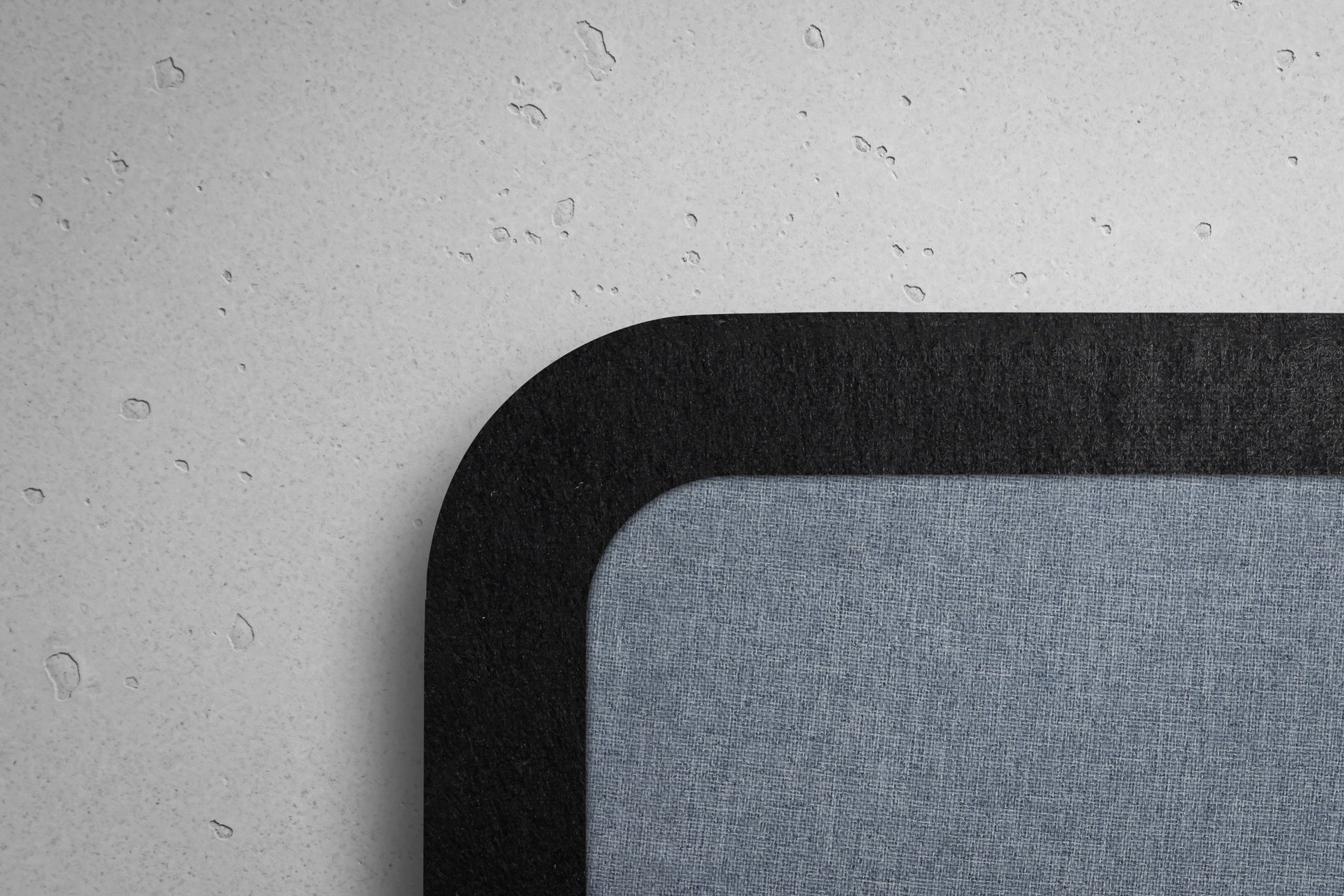

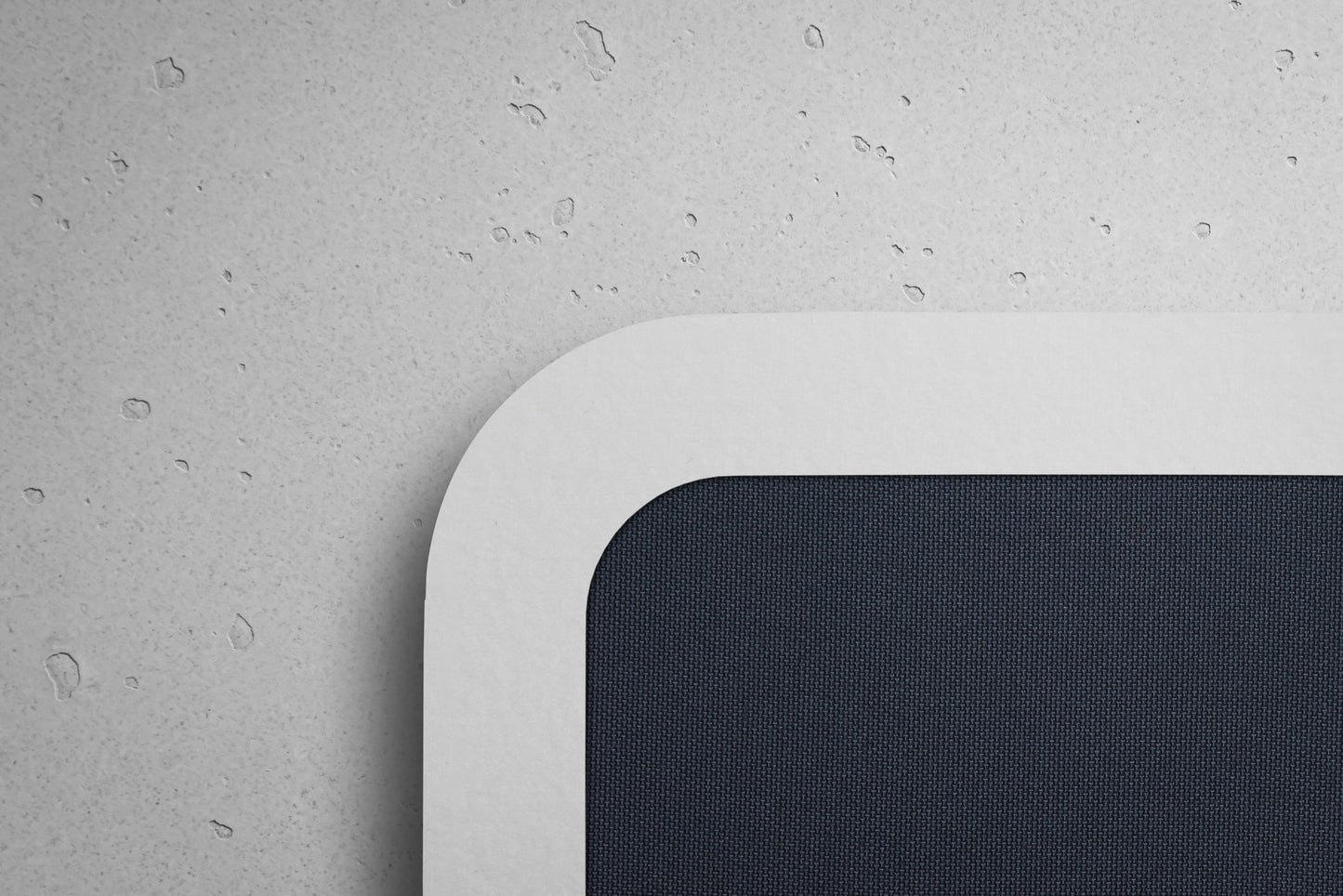

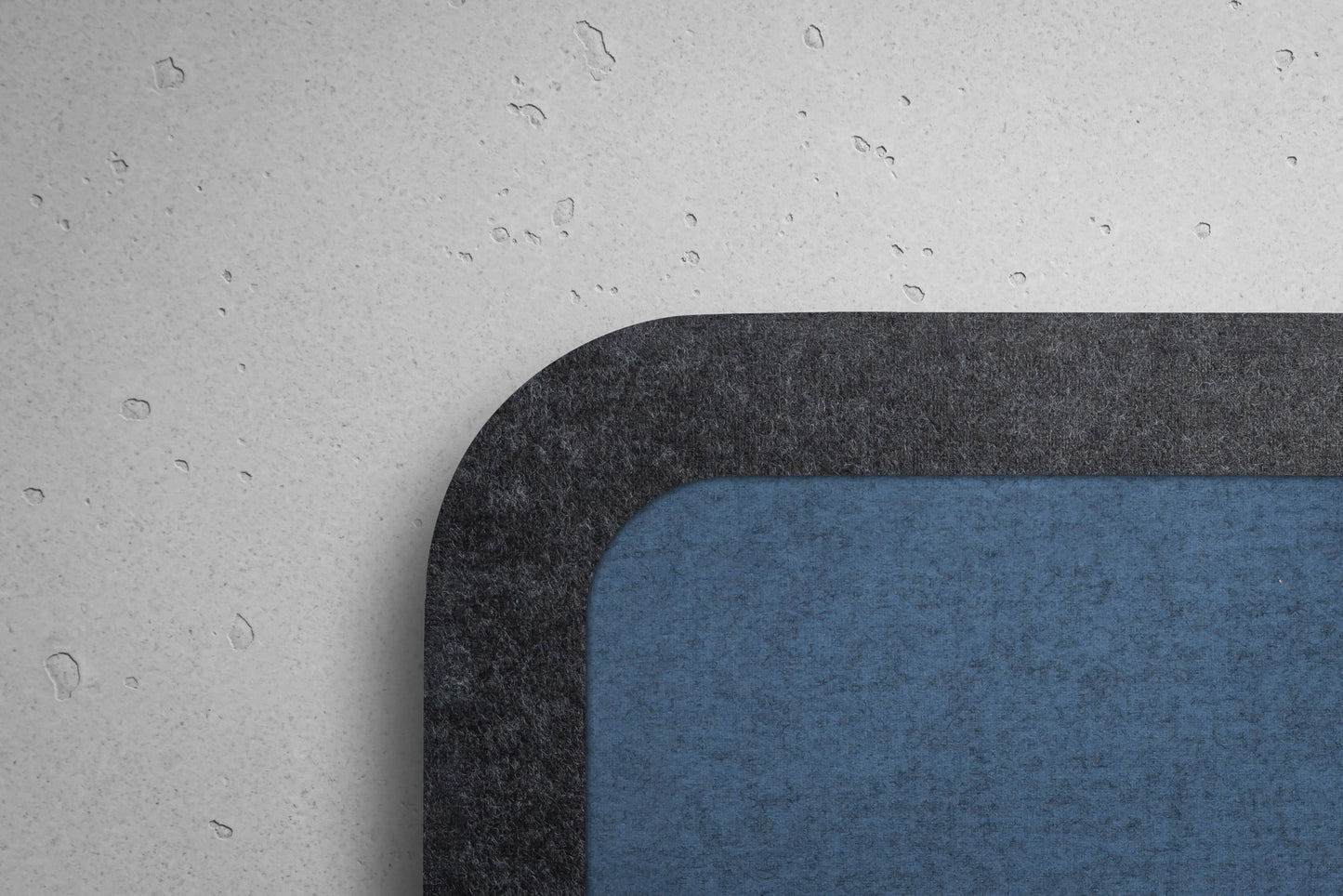

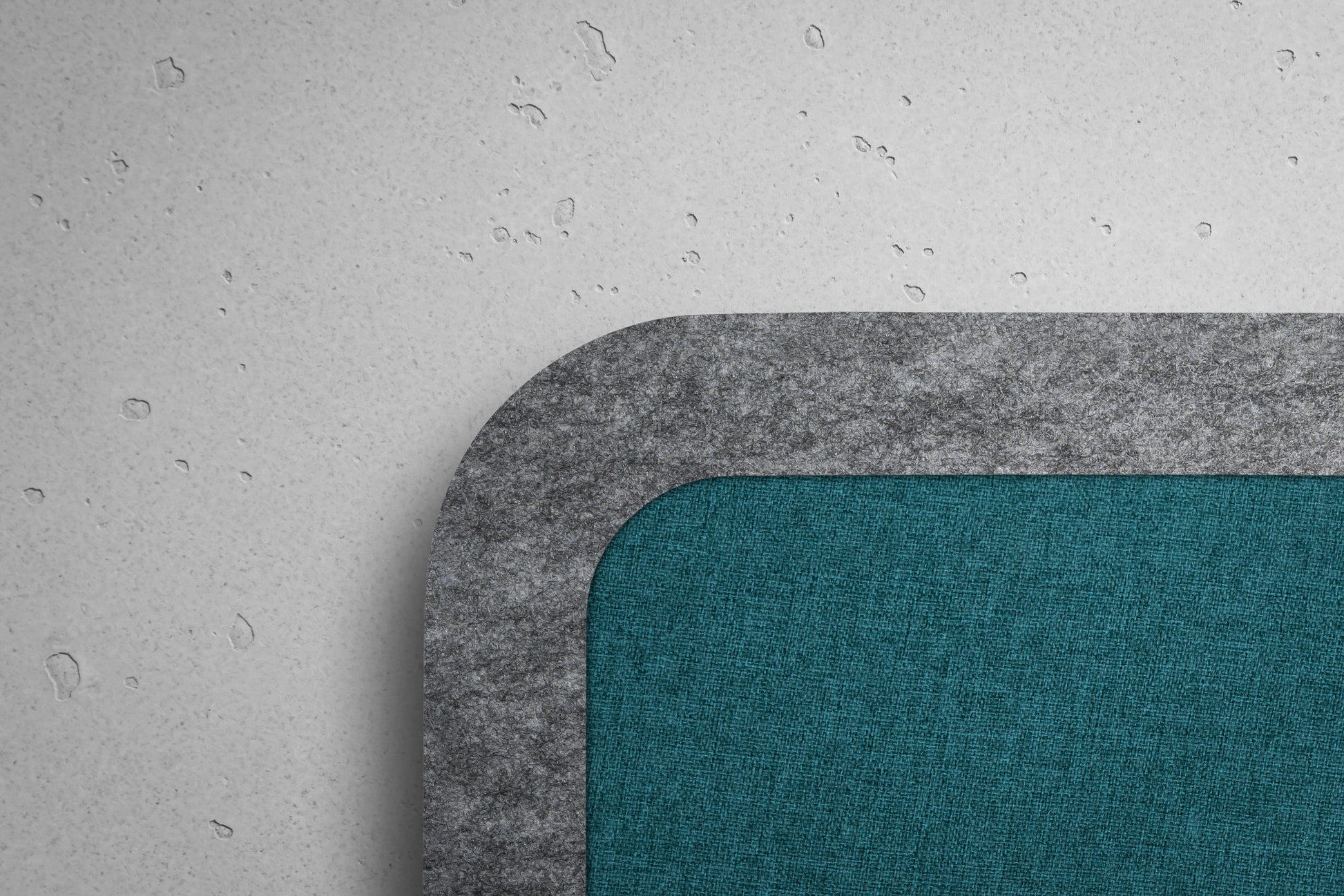

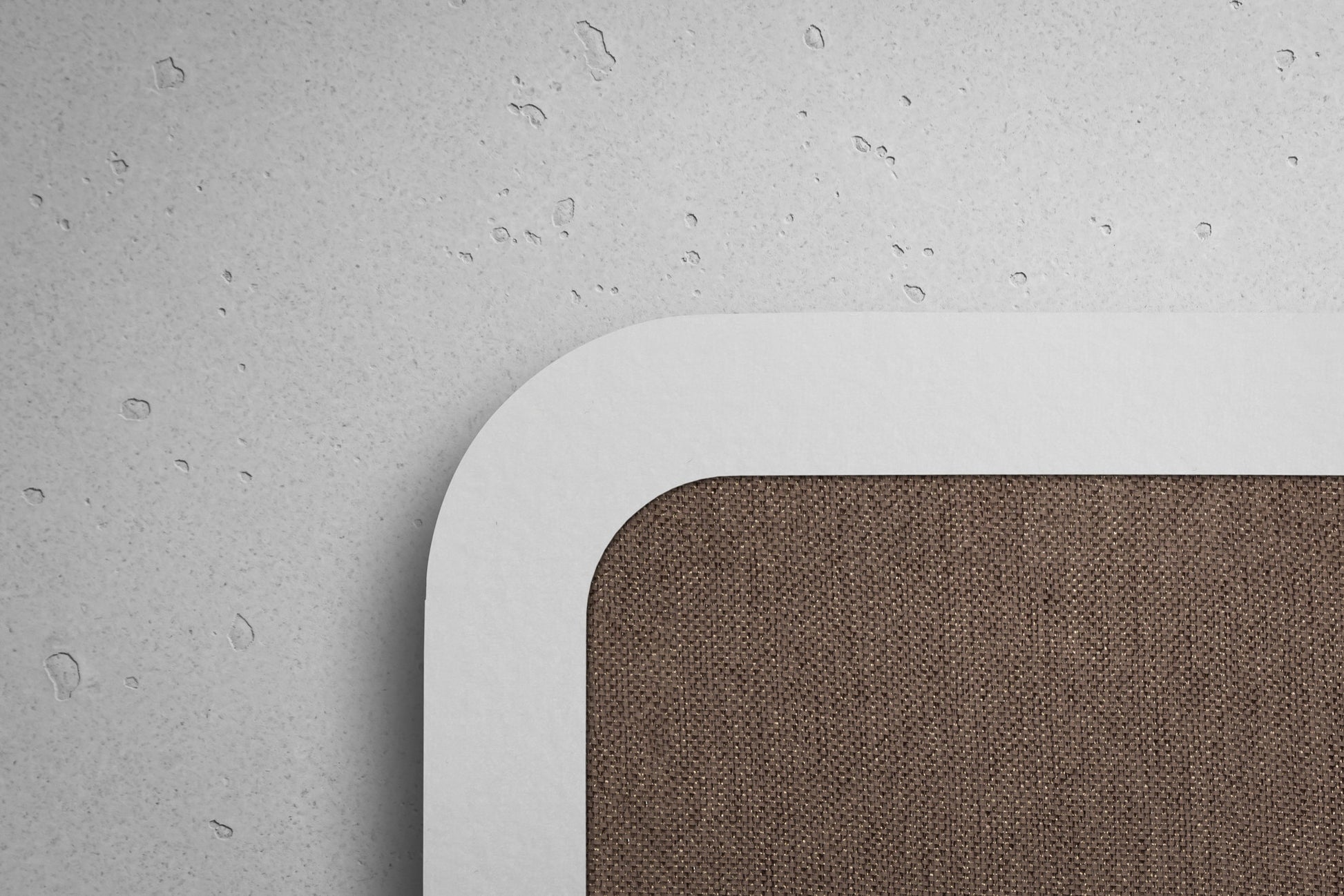

Frame Colours

  • White - Gloss level: 4 - 5 GU
  • Grey marbled - Gloss level: 3 - 4 GU
  • Darkgrey marbled - Gloss level: 2 - 3 GU
  • Nightgrey marbled - Gloss level: 1 - 2 GU
  • Black - Gloss level: 1 - 2 GU

Fabric Colours

Additional Equipment

  • With digital printing

Acoustics

  • Absorption class: C to A
  • αw: 0.70 (H) to 0.90
  • Sound absorption coefficient according to DIN EN ISO 354; evaluation according to ISO 11654/ ASTM C423

Sustainability

  • 100% recyclable
  • 100% reusable

Health

  • Mineral fiber-free
  • Allergy-friendly
  • Tested for harmful substances according to Oeko-Tex® Standard 100

Building Material Class

  • Building material class DIN 4102: B1 (polyester) / B2 (wool)

Additional Information

Download

MUTE+® brochure

Data sheet | Baffle | MUTE+® frame S40-B

Absorber class: C, αw: 0.70 (H) | 3,000 x 300 mm, center distance 300 mm, 12 pieces, total height: 300 mm

Absorber class: C, αw: 0.70 (H) | 3,000 x 600 mm, center distance 600 mm, 6 pieces, total height: 600 mm

We will be happy to provide you with further acoustic data upon request.

Notes

The visual appearance of colours and structures may vary depending on the monitor, printing, lighting conditions and other environmental factors.

Take advantage of the opportunity to order a sample and see for yourself how it meets your expectations.

Different production batches may result in colour differences between the fabrics.
The batch discrepancy is not a reason for complaint.

Any discolouration caused by clothing materials on our fabrics is a defect in the clothing material. Since the polluter pays principle applies here, discolouration of textiles is excluded from any manufacturer's guarantee.
