MUTE+® board - Baffle

The Classic among polyester absorbers

  • Health

    Mineral fibre free

    Allergy-friendly

    Tested for harmful substances according to Oeko-Tex® Standard 100

  • Quality

    Highly compressed, pure polyester

    Dimensionally stable despite low weight

    Length: 300 to 3,000 mm

    Height: 100 to 1,000 mm

    Strength: 24 mm / 40 mm

  • Acoustics

    Absorption class: D to A

    αw: 0.55 (H) to 0.90 (H) Sound absorption coefficient according to DIN EN ISO 354
    Assessment according to ISO 11654/ ASTM C423
View full details

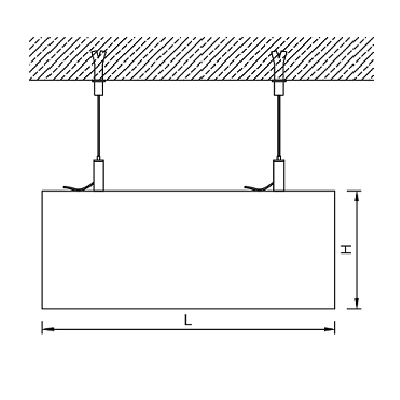

Assembly

Time-saving thanks to simple installation with a delicate, continuously adjustable rope suspension.

CAD-Details

Acoustic performance

Room noise is reduced and speech intelligibility is optimised.
Become a sound artist and experience the data of silence in our acoustic calculator.

Acoustic calculator

MUTE+® board S24-B / S40-B

Material

  • Material: Highly compressed, pure polyester
  • Property: Dimensionally stable, low weight
  • Length: 300 to 3,000 mm
  • Height: 100 to 1,000 mm

Strength 24 mm:

  • Structure: multi-layered
  • Weight: approx. 3,000 g/m²

Strength 40 mm:

  • Structure: 3 layers
  • Weight: approx. 4.000 g/m²

Form

  • 90° corners
  • Variable shapes possible

Colours

  • White - Gloss level: 4 - 5 GU
  • Grey marbled - Gloss level: 3 - 4 GU
  • Darkgrey marbled - Gloss level: 2 - 3 GU
  • Nightgrey marbled - Gloss level: 1 - 2 GU
  • Black - Gloss level: 1 - 2 GU

Additional equipment

  • With digital printing

Acoustics

  • Absorption class: D to A
  • αw: 0.55 (H) to 0.90 (H)
  • Sound absorption coefficient according to DIN EN ISO 354; evaluation according to ISO 11654/ ASTM C423

Sustainability

  • 100% recyclable
  • 100% reusable

Health

  • Mineral fiber free
  • Allergy-friendly
  • Tested for harmful substances according to Oeko-Tex® Standard 100

Building material class

  • Building material class DIN 4102: B

Additional Information

Download

MUTE+® brochure

MUTE+® board S24-B:

S24 | Data sheet | Baffel | MUTE+® board S24-B

MUTE+® board S40-B:

S40 | Data sheet | Baffel | MUTE+® board S40-B

S40 | Absorber class: C, αw: 0.70 (H) | 3,000 x 200 mm, center distance 200 mm, 18 pieces, total height: 200 mm

S40 | Absorber class: C, αw: 0.70 (H) | 3,000 x 300 mm, center distance 300 mm, 12 pieces, total height: 300 mm

S40 | Absorber class: C, αw: 0.70 (H) | 3,000 x 600 mm, center distance 600 mm, 6 pieces, total height: 600 mm

We will be happy to provide you with further acoustic data upon request.

Notes

The visual appearance of the colours and structures may vary depending on the monitor, printing, lighting conditions and other environmental factors. Take the opportunity to order a sample and experience for yourself how it matches your expectations.
