MUTE+® frame - Ceiling Absorber

The Creative in a 2-colour look

  • Health

    Mineral fibre free

    Allergy-friendly

    Tested for harmful substances according to Oeko-Tex® Standard 100

  • Quality

    Absorber core: Highly compressed, pure polyester, 3-layer structure

    With fabric partial cover made of polyester / wool, changeable/washable

    Dimensionally stable, despite low weight

    Length: 300 to 3,000 mm

    Width: 300 to 1,500 mm

    Diameter: 300 to 1,500 mm

    Thickness: 40 mm

    Weight: approx. 4,500 g/m

  • Acoustics

    Absorption class: A

    αw: 0.95 to 1.00 sound absorption coefficient according to DIN EN ISO 354
    Evaluation according to ISO 11654/ ASTM C423
View full details

Assembly

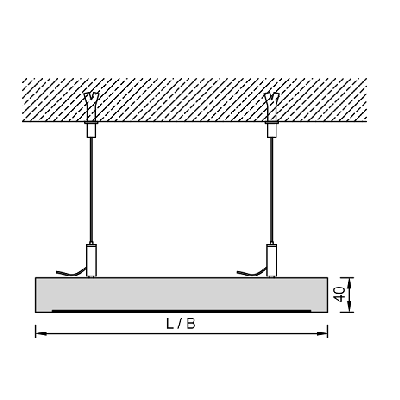

Time-saving thanks to simple installation with a delicate, continuously adjustable rope suspension.

CAD-Details

Acoustic performance

Room noise is reduced and speech intelligibility is optimised.
Become a sound artist and experience the data of silence in our acoustic calculator.

Acoustic calculator

MUTE+® frame S/R40-C

Material

  • Absorber core: Highly compressed and pure polyester
  • Structure: 3 layers
  • Properties: Dimensionally stable, low weight
  • Fabric: Polyester / wool - part of the absorber core covered; fabric can be changed and washed

Form

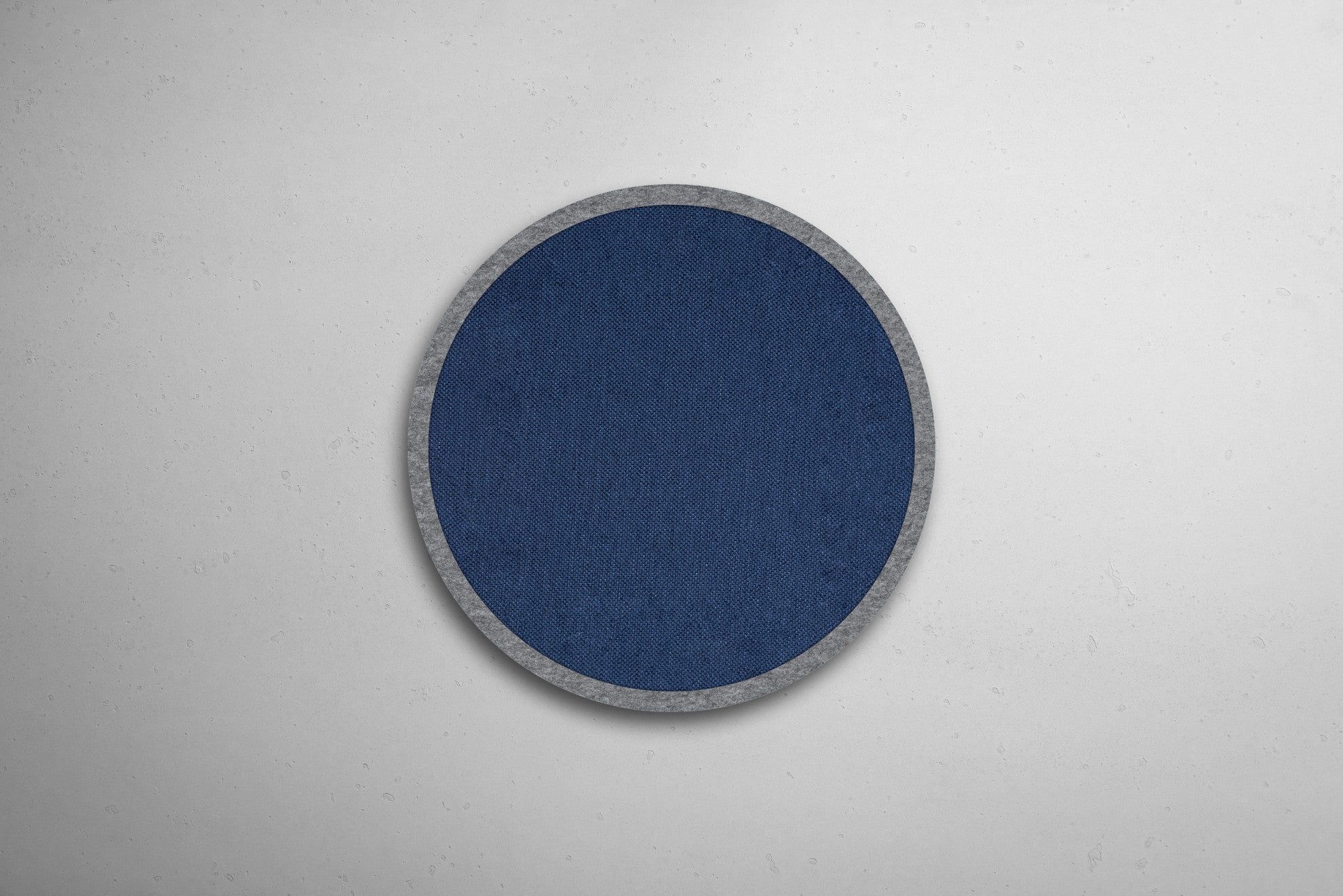

  • Round or with rounded corners (radius 70 mm)
  • Variable shapes possible

Frame Colours

  • White - Gloss level: 4 - 5 GU
  • Grey marbled - Gloss level: 3 - 4 GU
  • Darkgrey marbled - Gloss level: 2 - 3 GU
  • Nightgrey marbled - Gloss level: 1 - 2 GU
  • Black - Gloss level: 1 - 2 GU

Fabric Colours

Additional Equipment

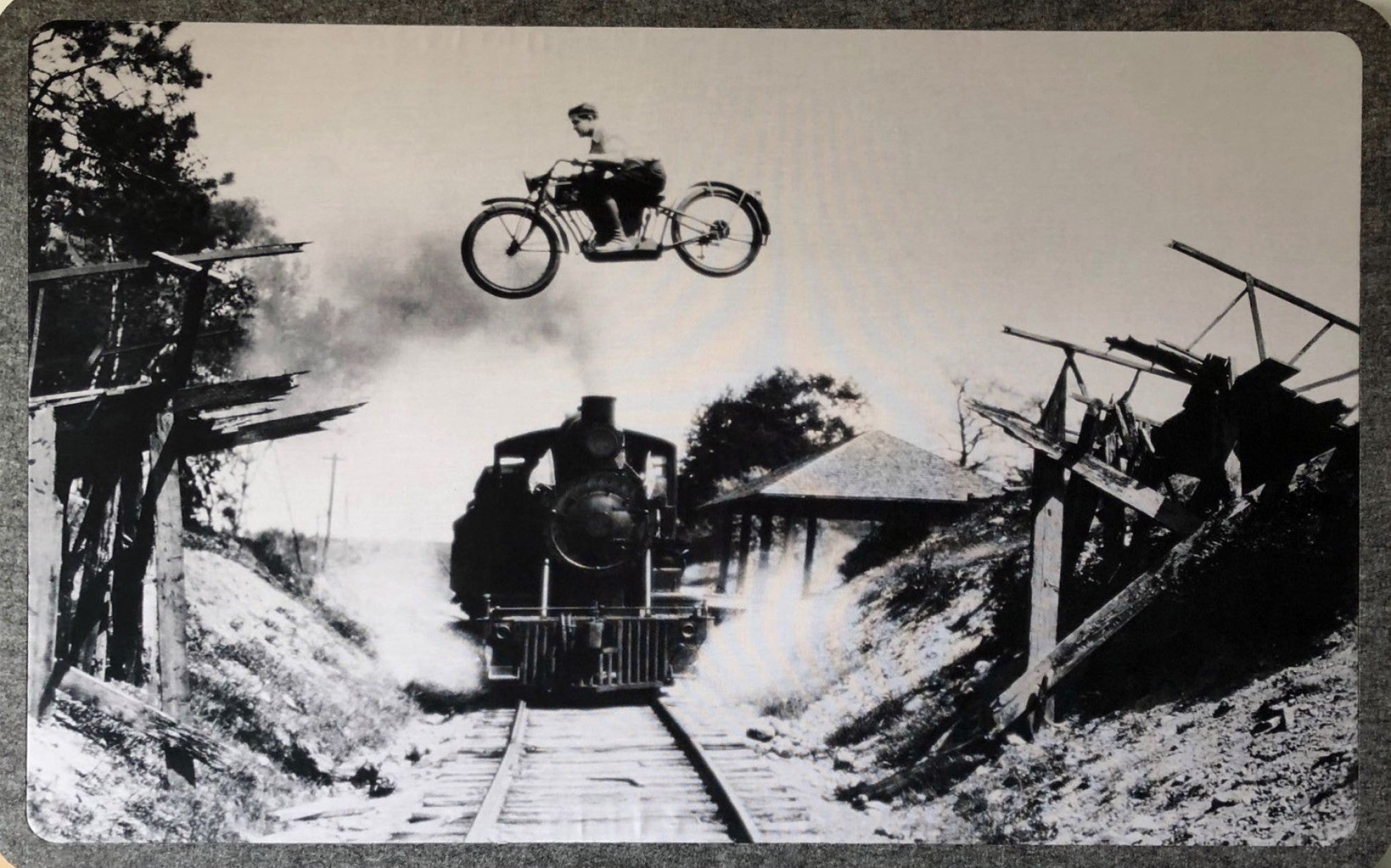

  • With digital printing
  • With cutouts for built-in components

Acoustics

  • Absorption class: A
  • αw: 0.95 to 1.00
  • Sound absorption coefficient according to DIN EN ISO 354; evaluation according to ISO 11654 / ASTM C423

Sustainability

  • 100% recyclable
  • 100% reusable

Health

  • Mineral fiber-free
  • Allergy-friendly
  • Tested for harmful substances according to Oeko-Tex® Standard 100

Building Material Class

  • Building material class DIN 4102: B1 (polyester) / B2 (wool)

Additional Information

Download

MUTE+® brochure

Data sheet | ceiling | MUTE+® frame S40-C (square)/R40-C (round)

Absorber class: A, αw: 0.95 | Area ~10.5 m²

Absorber class: A, αw: 1.00 | 1,000 x 1,000 mm, 3 pieces, total height: 240 mm

Absorber class: A, αw: 1.00 | 1,500 x 1,000 mm, 3 pieces, total height: 240 mm

Absorber class: A, αw: 1.00 | 2,000 x 1,000 mm, 3 pieces, total height: 240 mm

Absorber class: A, αw: 1.00 | ø 750 mm, 3 pieces, total height: 240 mm

Absorber class: A, αw: 1.00 | ø 1,000 mm, 3 pieces, total height: 240 mm

Absorber class: A, αw: 1.00 | ø 1,250 mm, 3 pieces, total height: 240 mm

Absorber class: A, αw: 1.00 | ø 1,500 mm, 3 pieces, total height: 240 mm

We will be happy to provide you with further acoustic data upon request.

Notes

The visual appearance of colours and structures may vary depending on the monitor, printing, lighting conditions and other environmental factors.

Take advantage of the opportunity to order a sample and see for yourself how it meets your expectations.

Due to different production batches, colour differences in the fabrics can inevitably occur.
The batch discrepancy is not a reason for complaint.

Any discolouration caused by clothing materials on our fabrics is a defect in the clothing material. Since the polluter pays principle applies here, discolouration of textiles is excluded from any manufacturer's guarantee.
