MUTE+® frame - Wall Absorber

The Creative in a 2-colour look

Health
Mineral fibre free
Allergy-friendly
Tested for harmful substances according to Oeko-Tex® Standard 100
Quality
Absorber core: Highly compressed, pure polyester, 3-layer structure
With fabric partial cover made of polyester/wool, changeable/washable
Dimensionally stable, despite low weight
Pinnable
Height: 300 to 3,000 mm
Width: 300 to 1,500 mm
Height: 300 to 1,500 mm
Width: 300 to 3,000 mm
Diameter: 300 to 1,500 mm
Thickness: 40 mm
Weight: approx. 4,500 g/m²
Acoustics
Absorption class: A
αw: 0.95 to 1.00 sound absorption coefficient according to DIN EN ISO 354
Evaluation according to ISO 11654/ ASTM C423

Product variants

View full details

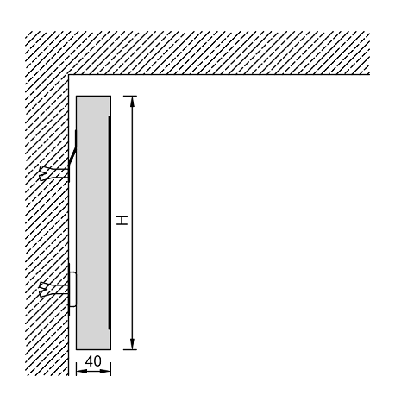

Assembly

Simply hang with wedge strips and magnets.

CAD-Details

Acoustic performance

Room noise is reduced and speech intelligibility is optimised.
Become a sound artist and experience the data of silence in our acoustic calculator.

Acoustic calculator

MUTE+® frame S/R40-W

Material

Absorber core: Highly compressed and pure polyester
Structure: 3 layers
Properties: dimensionally stable, low weight
Fabric: Polyester / wool - part of the absorber core covered; fabric can be changed and washed
Pinnable

Form

Round or with rounded corners (radius 70 mm)
Variable shapes possible

Frame Colours

White - Gloss level: 4 - 5 GU
Grey marbled - Gloss level: 3 - 4 GU
Darkgrey marbled - Gloss level: 2 - 3 GU
Nightgrey marbled - Gloss level: 1 - 2 GU
Black - Gloss level: 1 - 2 GU

Fabric Colours

Additional Equipment

Pinnable
With digital printing
With cut-outs

Acoustics

Absorption class: A
αw: 0.95 to 1.00
Sound absorption coefficient according to DIN EN ISO 354; evaluation according to ISO 11654 / ASTM C423

Sustainability

100% recyclable
100% reusable

Health

Mineral fiber-free
Allergy-friendly
Tested for harmful substances according to Oeko-Tex® Standard 100

Building Material Class

Building material class DIN 4102: B1 (polyester) / B2 (wool)

Additional Information

Download

MUTE+® brochure

Data sheet | Wall | MUTE+® frame S40-W (square)/R40-W (round)

Absorber class: A, αw: 0.95 | Area ~10.5 m²

Absorber class: A, αw: 1.00 | 1,000 x 1,000 mm, 3 pieces, total height: 48 mm

Absorber class: A, αw: 1.00 | 1,500 x 1,000 mm, 3 pieces, total height: 48 mm

Absorber class: A, αw: 1.00 | 2,000 x 1, 000 mm, 3 pieces, total height: 48 mm

We will be happy to provide you with further acoustic data upon request.

Notes

The visual appearance of colours and structures may vary depending on the monitor, printing, lighting conditions and other environmental factors.

Take the opportunity to order a sample and see for yourself how it meets your expectations.

Due to different production batches, colour differences in the fabrics may occur.
The batch discrepancy is not a reason for complaint.

Any discolouration caused by clothing materials on our fabrics is a defect in the clothing material. Since the polluter pays principle applies here, discolouration of textiles is excluded from any manufacturer's guarantee.
