- Ceiling/Wall absorbers

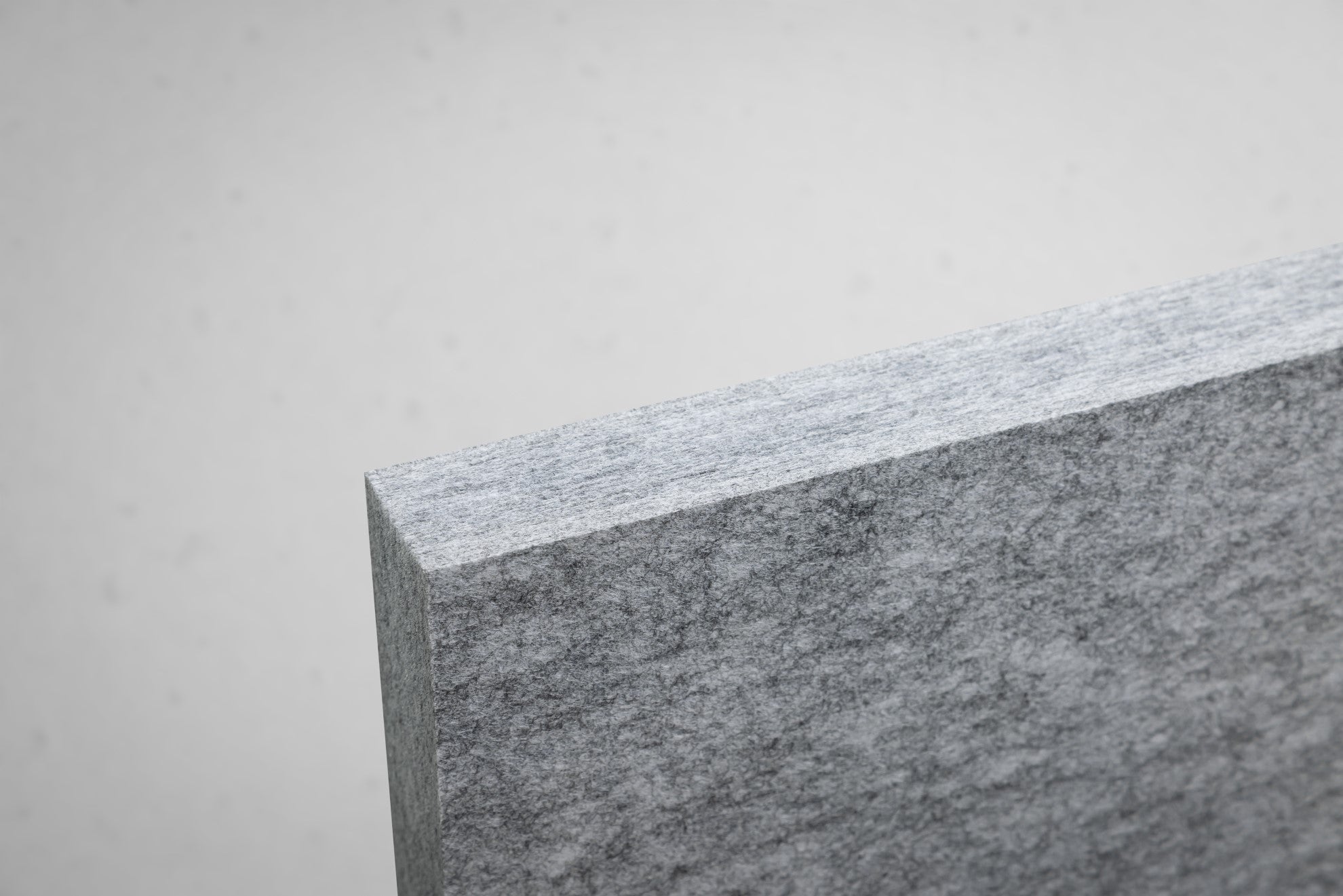

- Thickness: 40 mm
- Dimensions: max. 3,000 x 2,000 mm
- Weight: approx. 4 kg/m²








We look forward to your inquiry
For organisational reasons, our products cannot currently be purchased directly in the shop.
We look forward to your inquiry.
Characteristics
Material
Absorber core:
Material: Polyester
Acoustics
Absorption class: B and A
αw: 0.80 to 1.00 sound absorption coefficient according to DIN EN ISO 354
Evaluation according to ISO 11654/ ASTM C423
Health
Mineral fibre free
Allergy-friendly
Tested for harmful substances according to Oeko-Tex® Standard 100
Building material class
Building material class DIN 4102: B1
Assembly
Easy installation with a tool-free adjustable rope system.

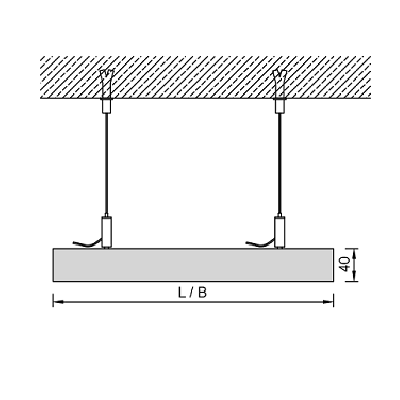

Ceiling mounting:
Raw concrete ceiling:
Create a ø5 drill hole with a minimum depth of 45 mm.
Screw the rope holder to the bare concrete ceiling using a concrete screw (included in delivery).
Wooden ceiling:
Create a ø3.5 drill hole with a minimum depth of 45 mm.
Screw the rope holder to the wooden ceiling using a concrete screw (included).
Absorber mounting:
The lower part of the rope hanger is screwed into the rear mounting bushings of the absorber using the threaded pin.
Individual dimensions
Length: Up to 3,000 mm
Width: Up to 2,000 mm
Further dimensions and geometries can be realised at any time.
Delivery time
We produce the sound absorbers according to your requirements.
If you order up to 15 units, you will receive your absorbers within 3 weeks. For larger quantities, please enquire in advance.
Due to the material situation, it cannot be ruled out that there may be delivery difficulties with the absorber. You will receive your delivery date with the order confirmation.
Shipping costs
Notes
The representation of colours and structures is not binding, as brightness and contrast can vary depending on the monitor and printing. Differences are therefore possible. Other materials are available on request.
Due to different production batches, colour differences in the absorbers can inevitably occur.
The batch discrepancy is not a reason for complaint.
Download

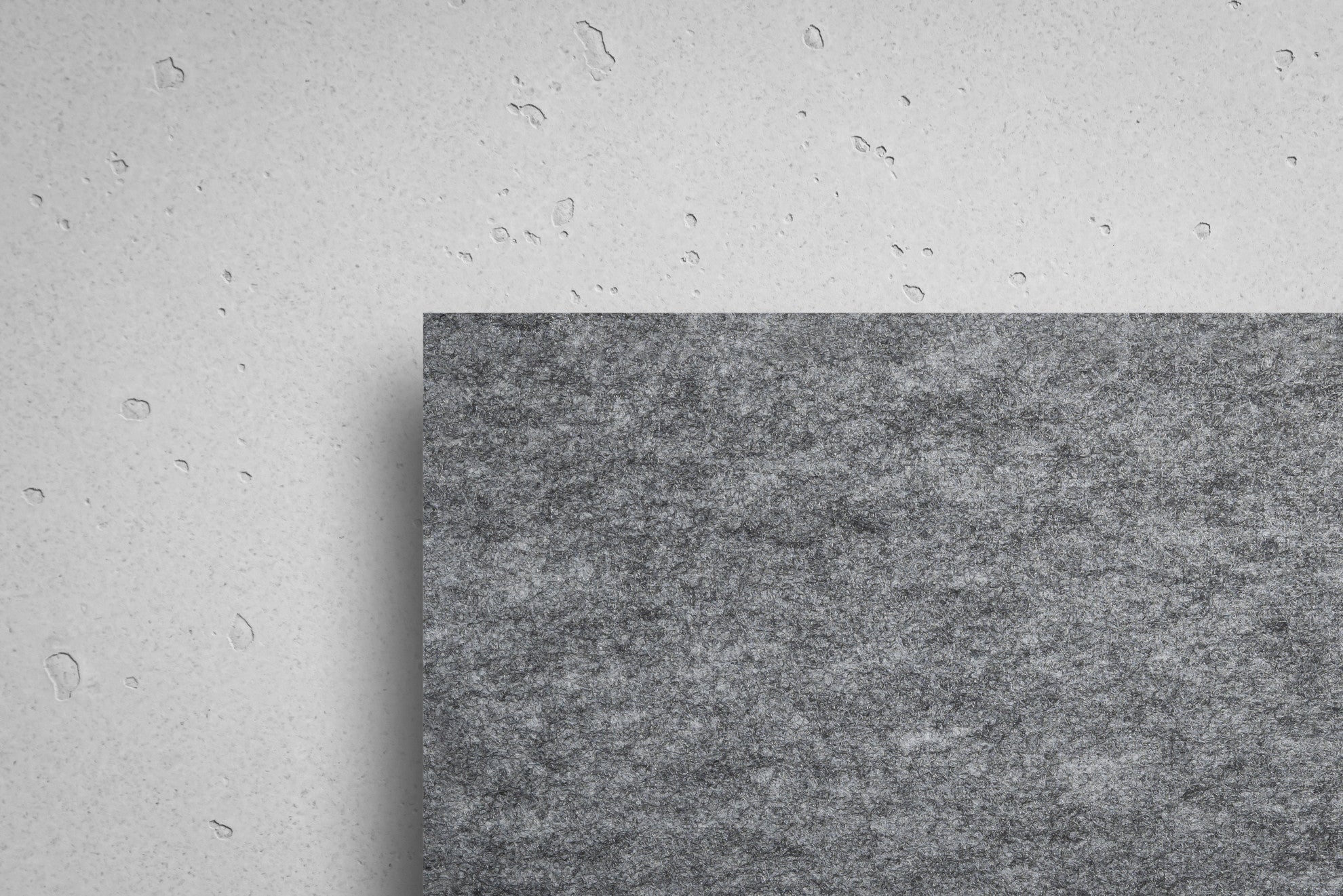

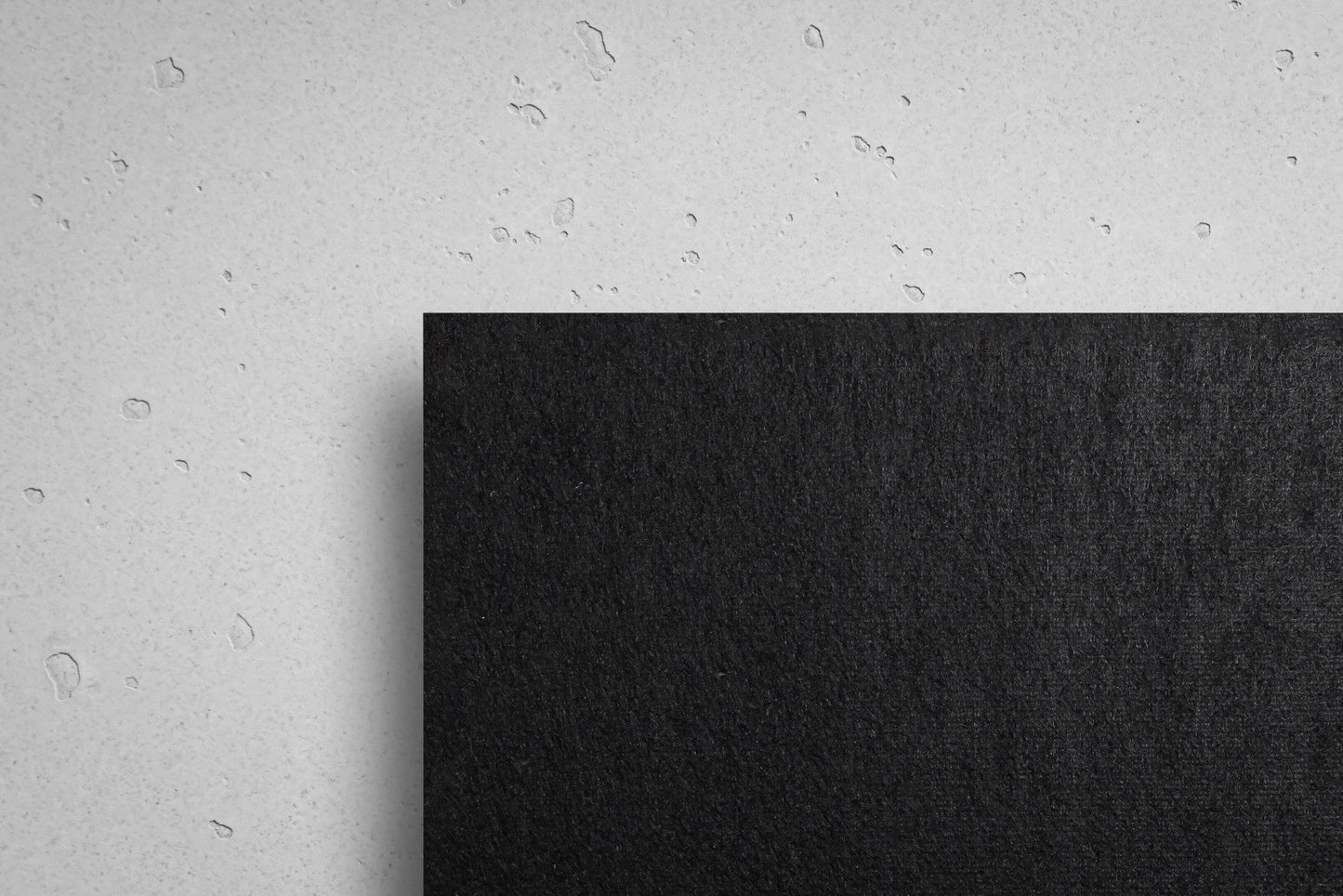

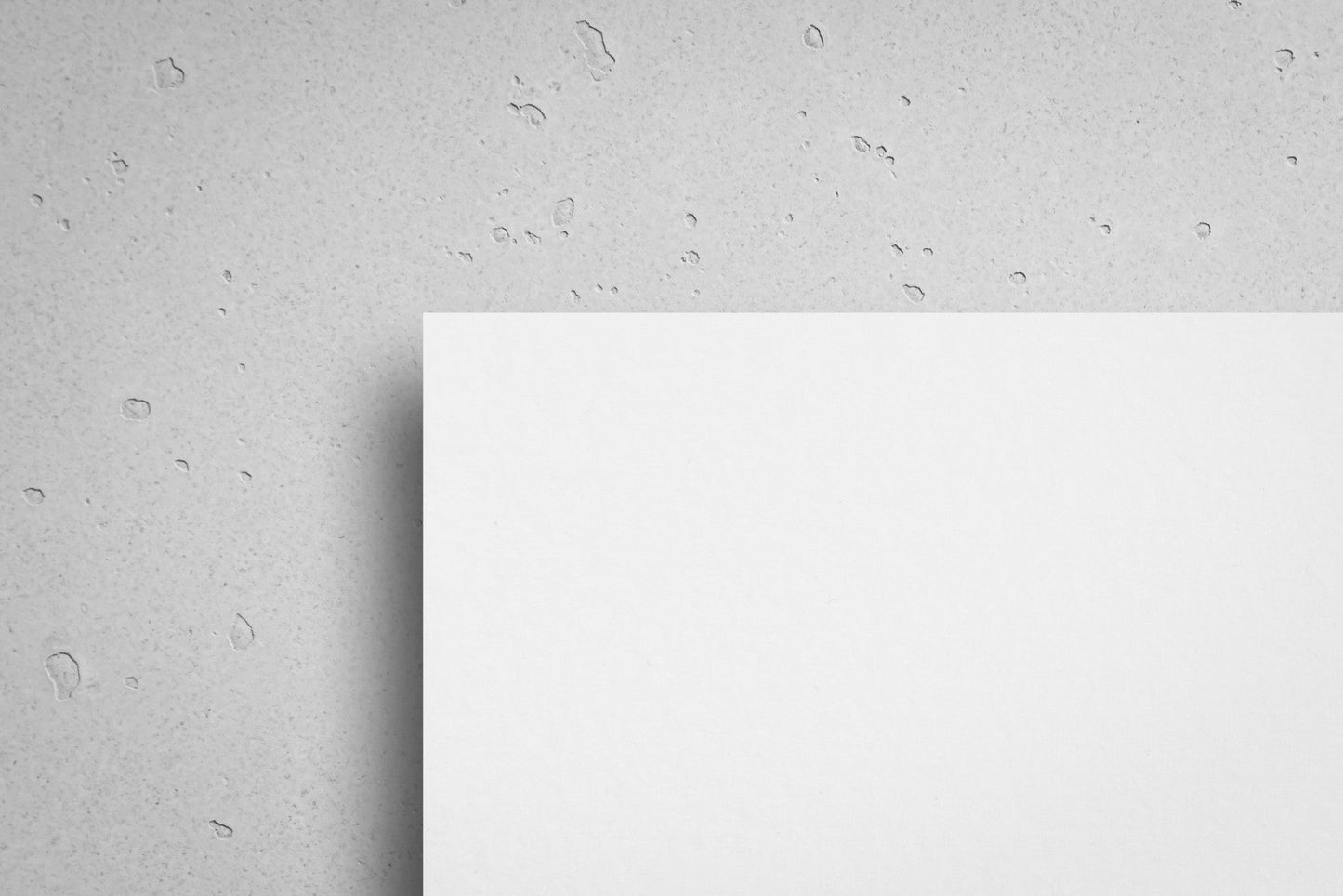

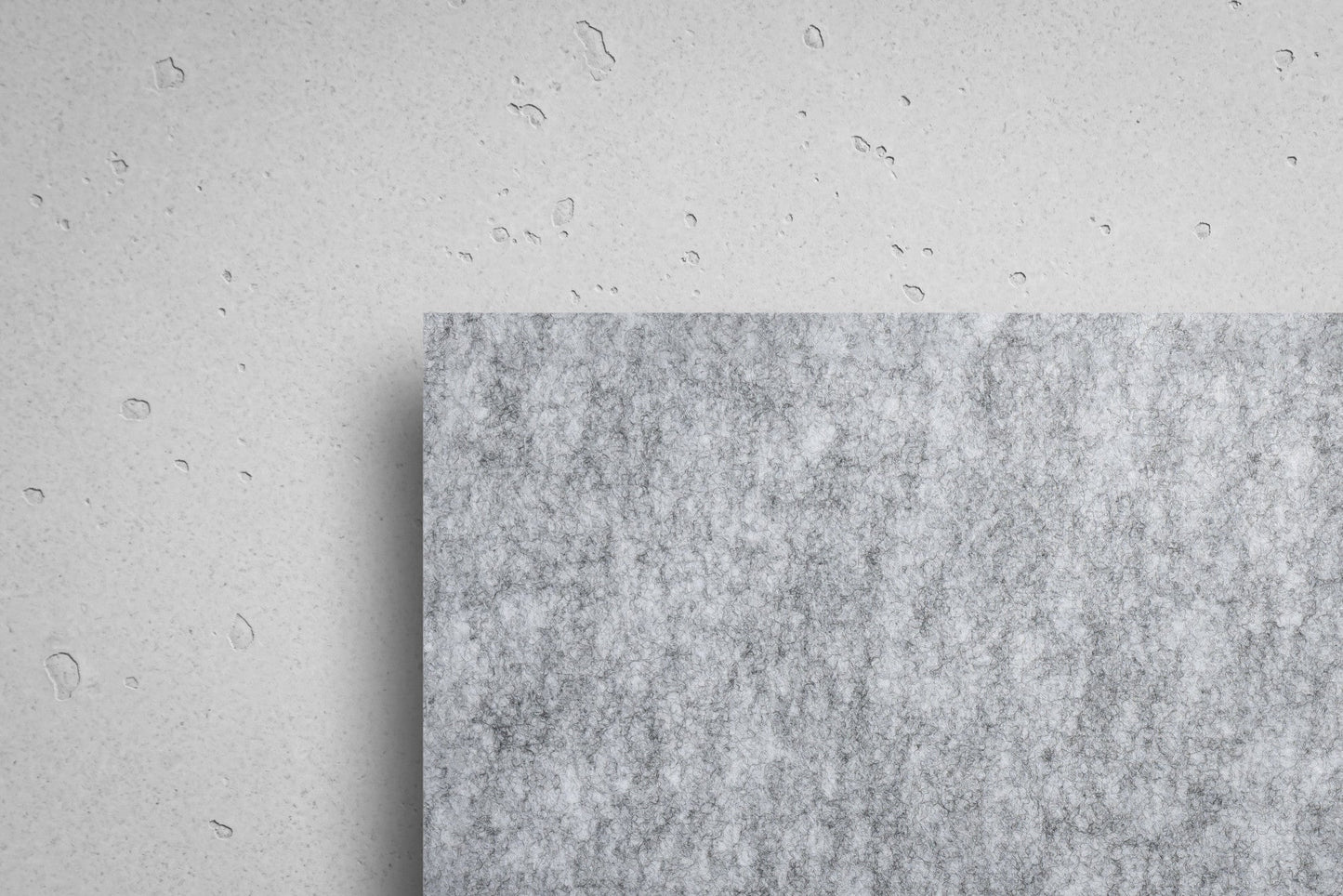

Data sheet | MUTE+ board S40 (square)

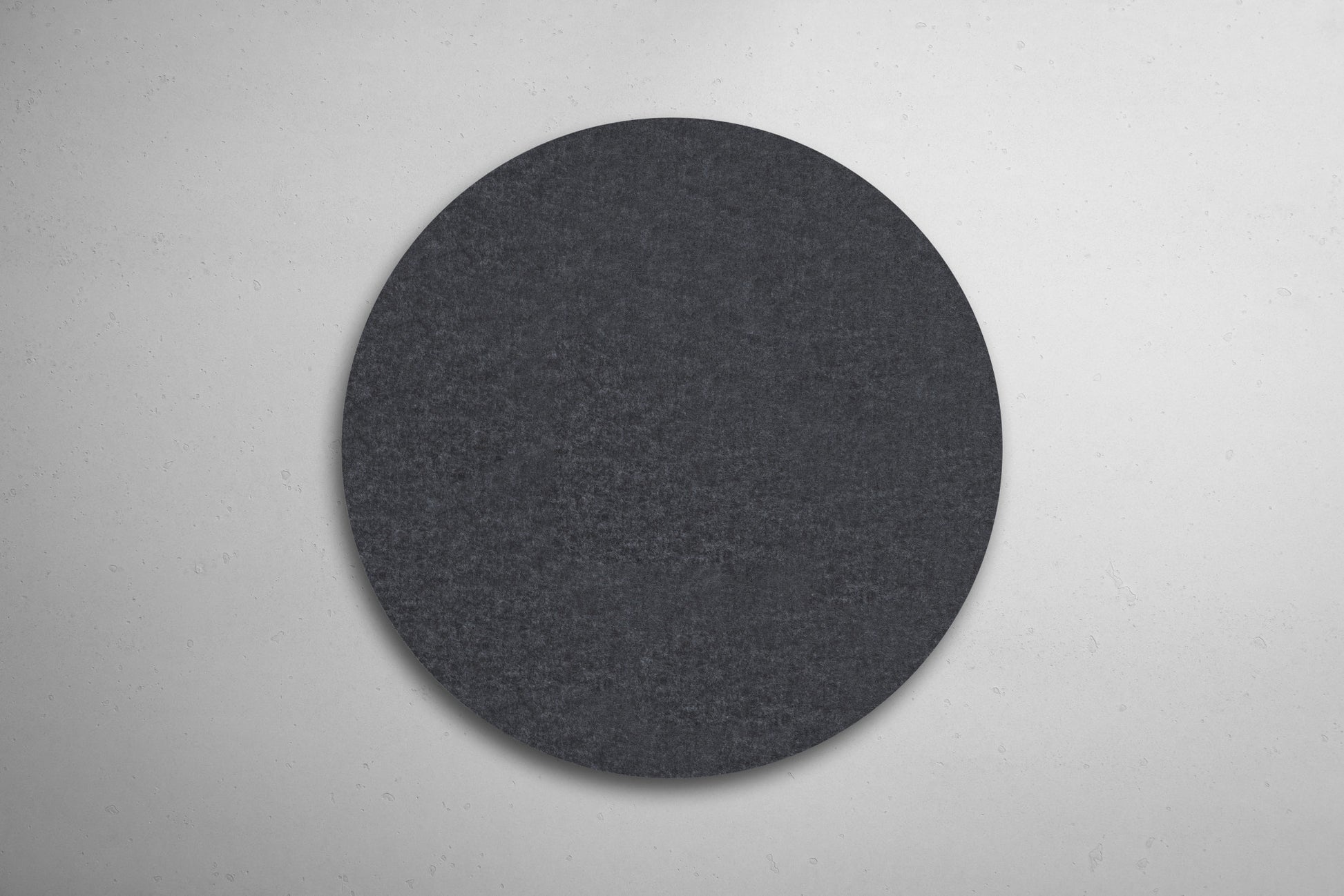

Data sheet | MUTE+ board R40 (round)
Absorber class: B, αw: 0.80 | Area ~10.5 m²
Absorber class: A, αw: 1.00 | 1,000 x 1,000 mm, 3 pieces, total height: 240 mm

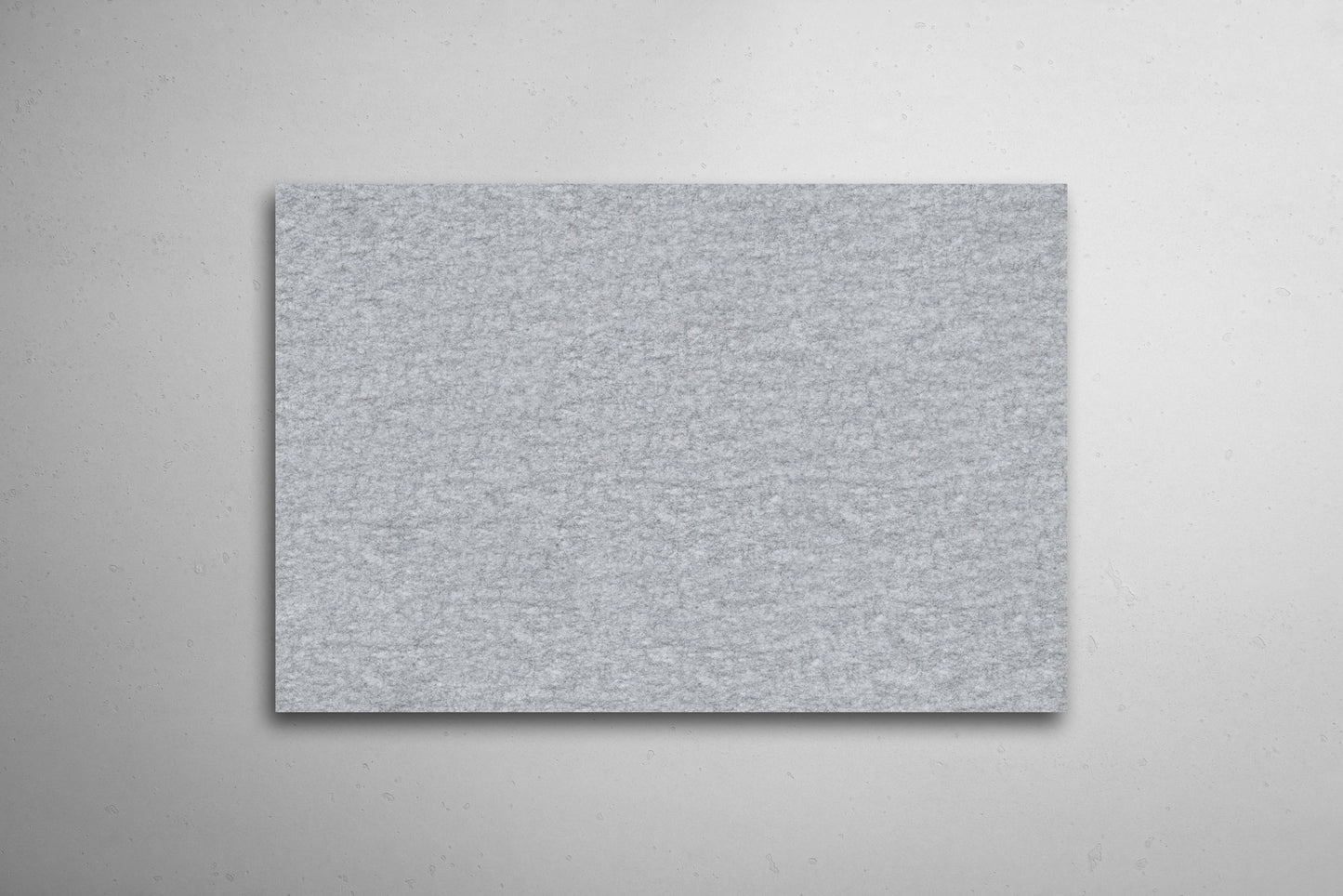

Absorber class: A, αw: 1.00 | 1,500 x 1,000 mm, 3 pieces, total height: 240 mm
Absorber class: A, αw: 1.00 | 2,000 x 1,000 mm, 3 pieces, total height: 240 mm
Absorber class: A, αw: 1.00 | ø 750 mm, 3 pieces, total height: 240 mm
Absorber class: A, αw: 1.00 | ø 1,000 mm, 3 pieces, total height: 240 mm
Absorber class: A, αw: 1.00 | ø 1,250 mm, 3 pieces, total height: 240 mm
Absorber class: A, αw: 1.00 | ø 1,500 mm, 3 pieces, total height: 240 mm
