Absorber core:
Material: Polyester

Material:
Material: Polyester/Wool
Lightfastness: Grade 4-6 according to DIN EN ISO 105-B02
Rubbing fastness: grade 3-5 according to DIN EN ISO 105-X12

Absorption class: B and A

αw: 0.80 to 1.00 sound absorption coefficient according to DIN EN ISO 354
Evaluation according to ISO 11654/ ASTM C423

Stretched on an absorber core inside, replaceable and washable.

Here you can find further information about our fabrics.

Mineral fibre free

Allergy-friendly

Tested for harmful substances according to Oeko-Tex® Standard 100

Depends on the fabric selection.

tex100-300
Building material class DIN 4102: B1

tex400-499
Building material class DIN 4102: B2

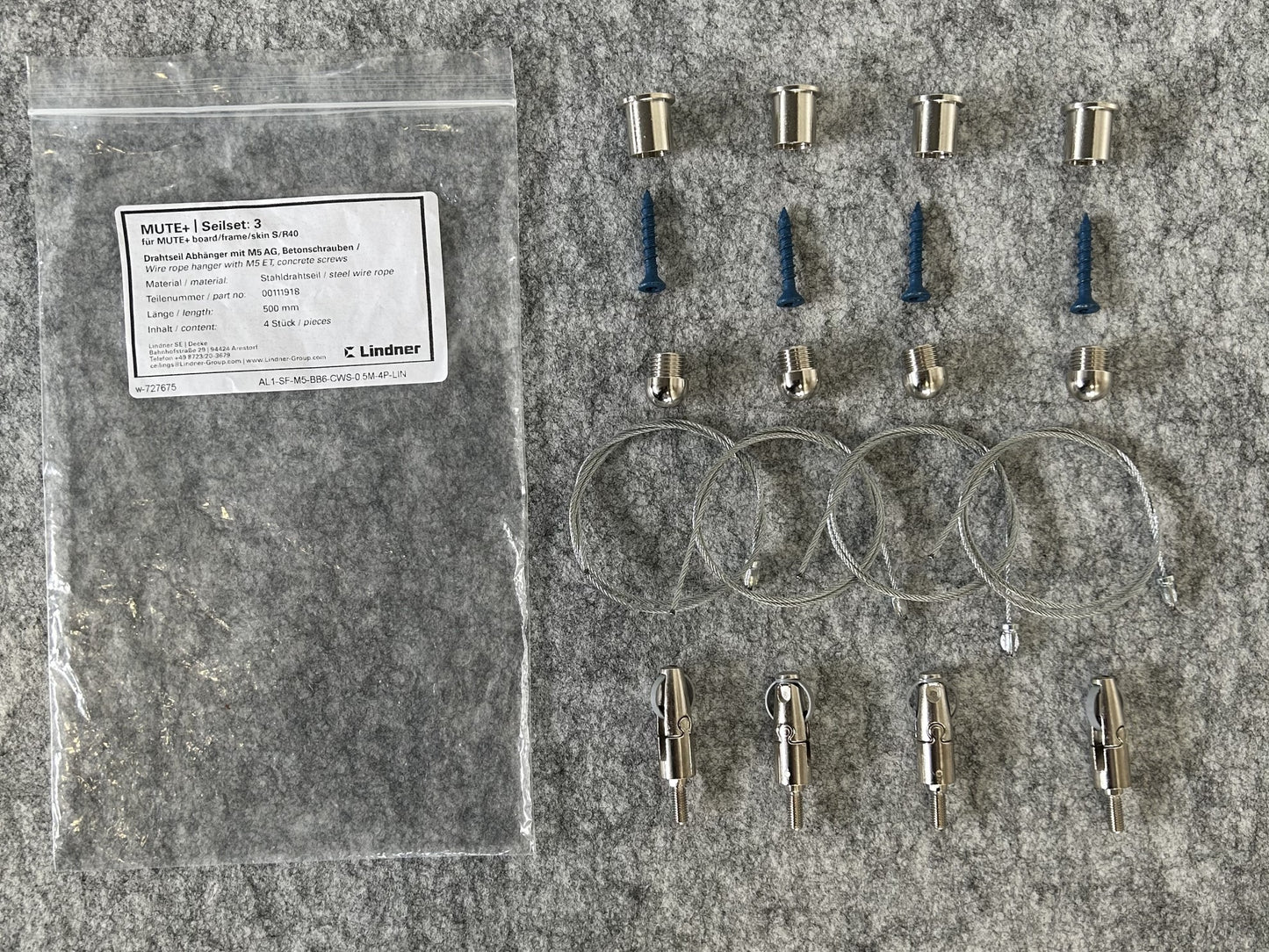

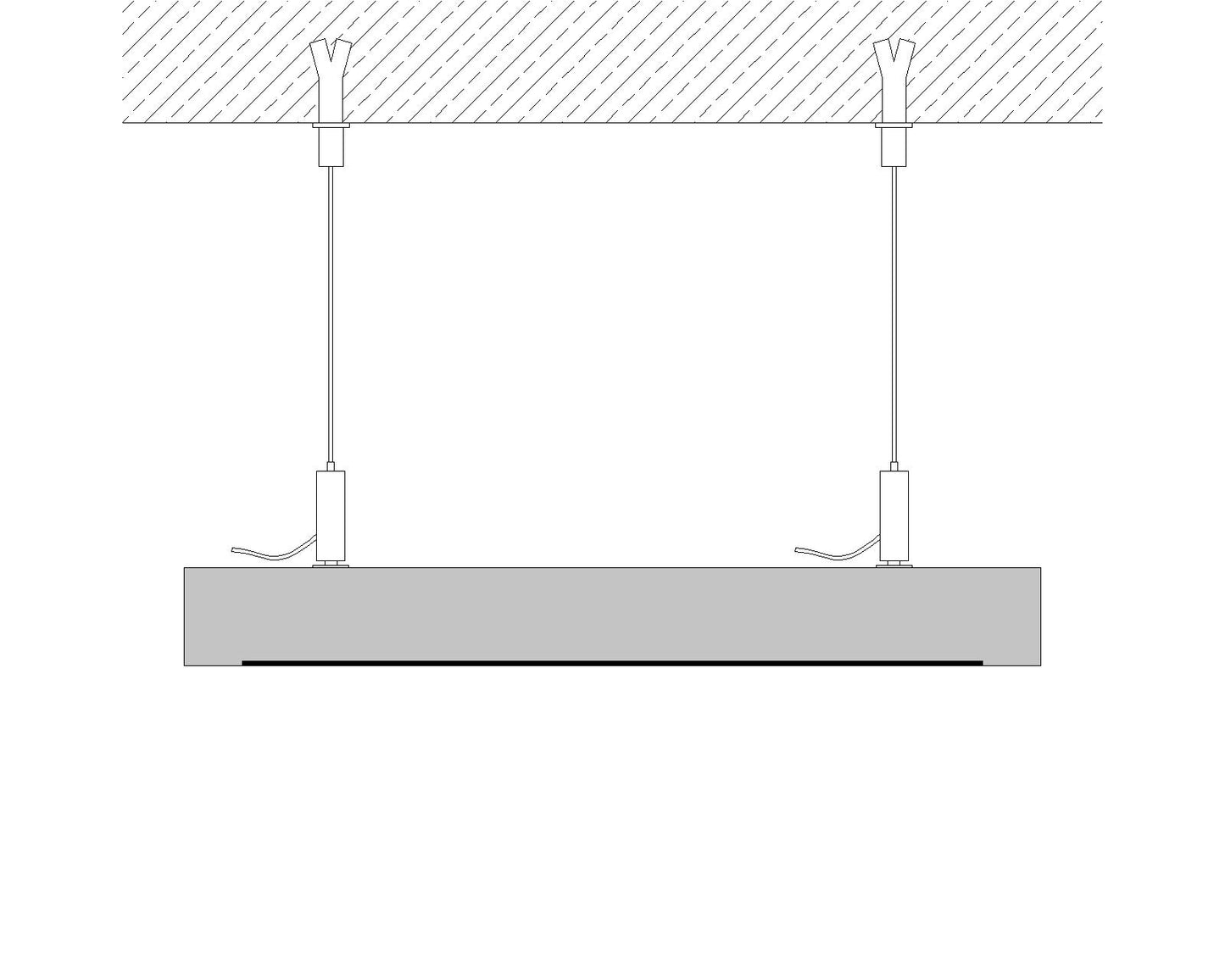

Easy installation with a tool-free adjustable rope system.

Ceiling mounting:
Raw concrete ceiling:
Create a ø5 drill hole with a minimum depth of 45 mm.
Screw the rope holder to the bare concrete ceiling using a concrete screw (included in delivery).
Wooden ceiling:
Create a ø3.5 drill hole with a minimum depth of 45 mm.
Screw the rope holder to the wooden ceiling using a concrete screw (included).

Absorber mounting:
The lower part of the rope hanger is screwed into the rear mounting bushings of the absorber using the threaded pin.

Length: Up to 3,000 mm

Width: Up to 1,500 mm

Further dimensions and geometries can be realised at any time.

Talk to us.

We produce the sound absorbers according to your requirements.

If you order up to 15 units, you will receive your absorbers within 3 weeks. For larger quantities, please enquire in advance.

Due to the material situation, it cannot be ruled out that there may be delivery difficulties with the absorber. You will receive your delivery date with the order confirmation.

See shipping costs

The representation of colours and structures is not binding, as brightness and contrast can vary depending on the monitor and printing. Differences are therefore possible. Other materials are available on request.

Due to different production batches, colour differences in the absorbers and materials can inevitably occur. The batch discrepancy is not a reason for complaint.

Any discolouration caused by clothing materials on our fabrics is a defect in the clothing material. Since the polluter pays principle applies here, discolouration of textiles is excluded from any manufacturer's guarantee.

Flyer | MUTE+

Data sheet | MUTE+ frame S40 (square)

Data sheet | MUTE+ frame R40 (round)

Absorber class: A, αw: 0.95 | Area ~10.5 m²

Absorber class: A, αw: 1.00 | 1,000 x 1,000 mm, 3 pieces, total height: 240 mm

Absorber class: A, αw: 1.00 | 1,500 x 1,000 mm, 3 pieces, total height: 240 mm

Absorber class: A, αw: 1.00 | 2,000 x 1,000 mm, 3 pieces, total height: 240 mm

Absorber class: A, αw: 1.00 | ø 750 mm, 3 pieces, total height: 240 mm

Absorber class: A, αw: 1.00 | ø 1,000 mm, 3 pieces, total height: 240 mm

Absorber class: A, αw: 1.00 | ø 1,250 mm, 3 pieces, total height: 240 mm

Absorber class: A, αw: 1.00 | ø 1,500 mm, 3 pieces, total height: 240 mm

Would you like to see and touch the absorber before ordering? Order a hand sample.

Sample | MUTE+ frame S40 (square)

Sample | MUTE+ frame R40 (round)
